Prepare the Oven for Lifting

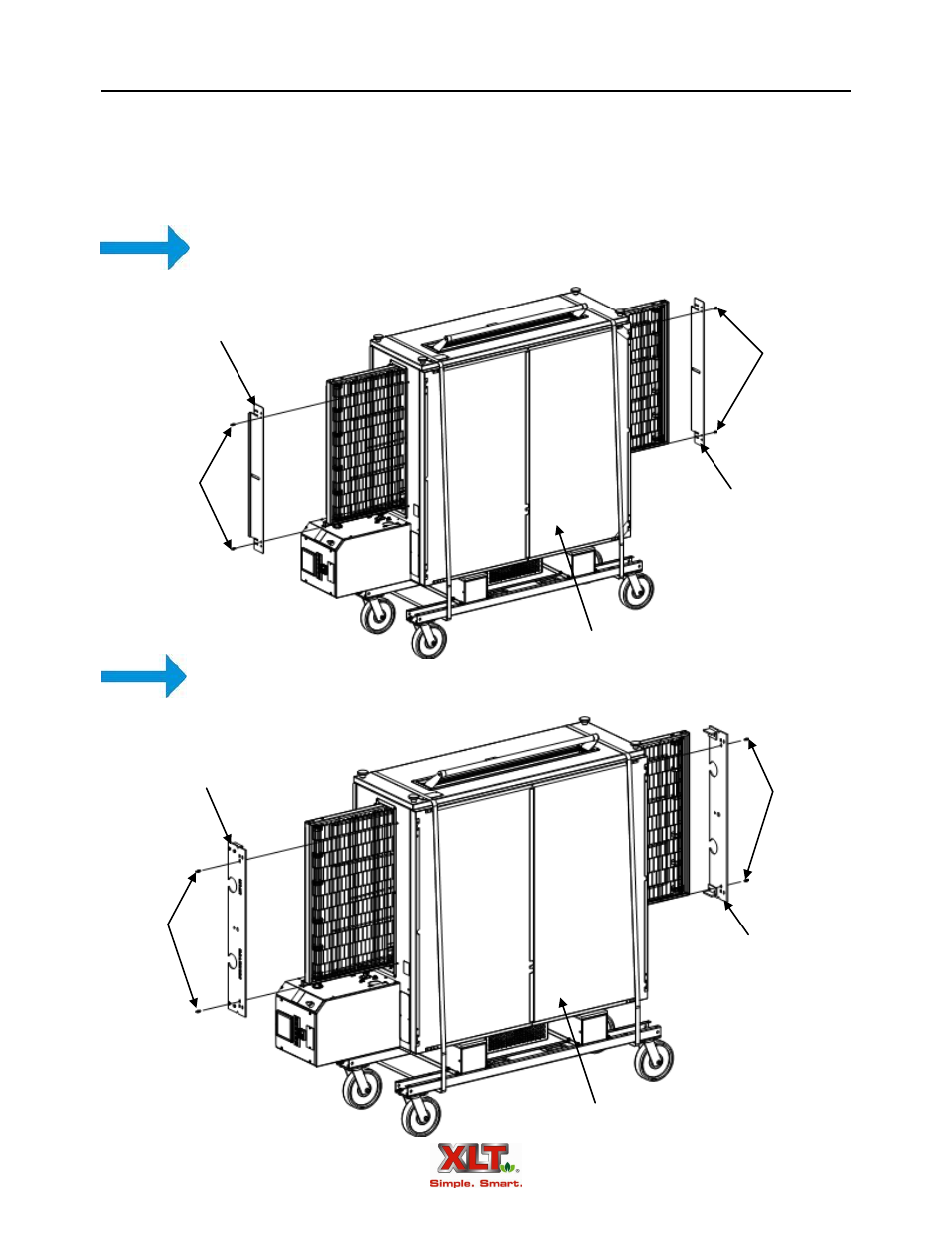

1. Remove the two conveyor opening flaps and thumbscrews from the oven. Set them aside for

reinstallation later.

2. Install the lifting plates in place of the conveyor opening flaps using the same thumbscrews.

Oven Assembly

Conveyor

Opening Flap

Thumb
Screws

Conveyor
Opening Flap

Thumb
Screws

Right Hand

Lifting Plate

Thumb
Screws

Left Hand
Lifting Plate

The Lifting Pipe hole, marked for the appropriate oven size, must be installed closest
to the control box.

NOTE

If using an AVI Hood System, conveyor flaps are not needed.

Top of Oven
