Downloading Scenarios
After you have created a scenario, you need to download it to the SAS InFusion box for
execution.
If you use a general library as a scenario archive, then the process of creating and
executing a scenario is as follows:
Step 1 Open the general library (Main library or a File library).
Scenarios in the library are listed in the library window (left side
Figure 88).
Step 2 Open the Device List window by clicking on the Show Device
List button on application toolbar.
Step 3 Open the Device library for the box to which you want to
download a scenario or scenarios. You can open the device
library in two ways: by clicking on the device library icon in the
device list window or by double-clicking on the device name.
Step 4 Copy the scenario from general library to device library by
dragging it with the mouse (Figure 88).

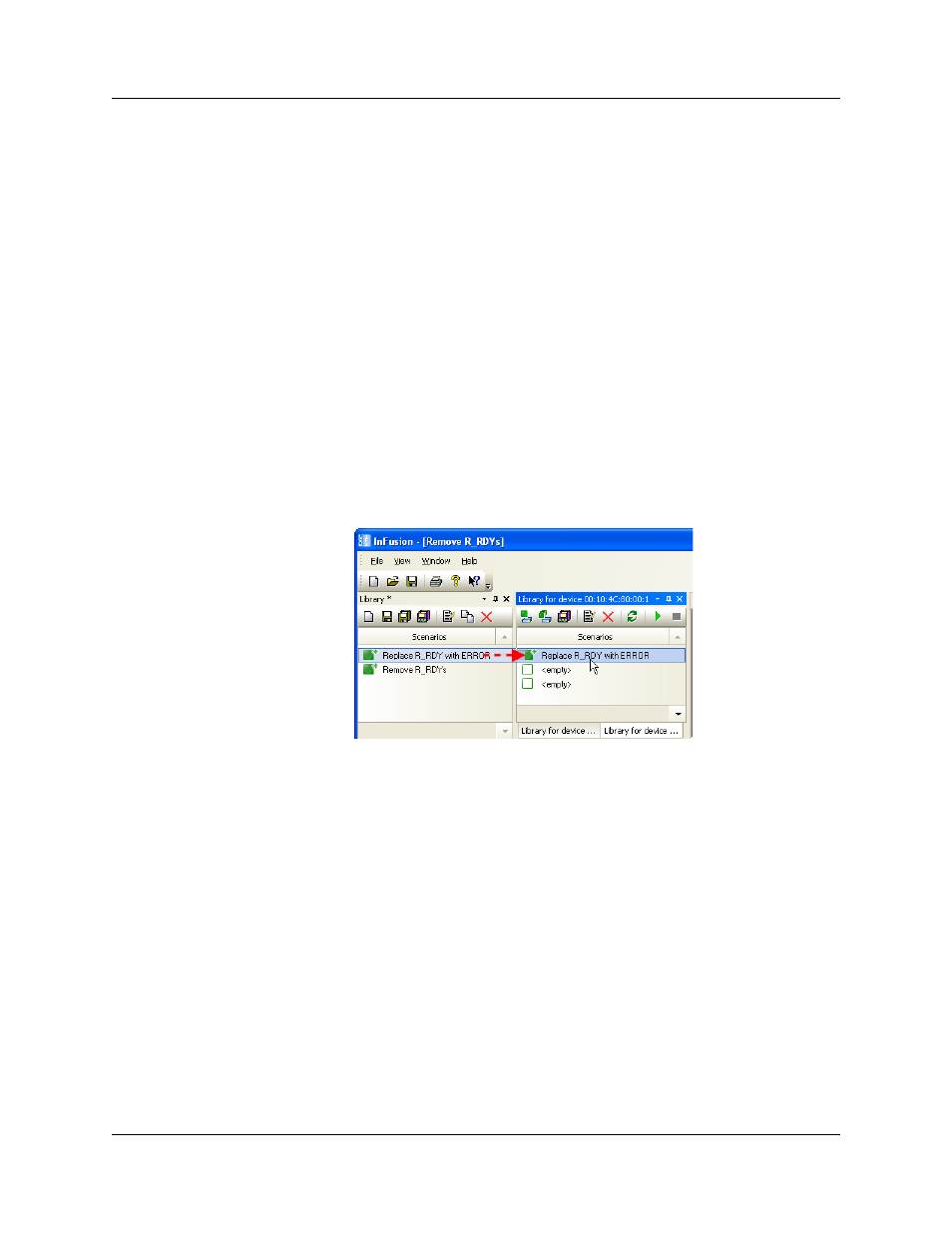

Figure 88 Downloading Scenarios
Step 5 Download all scenarios in device library to the SAS InFusion
device. To do so, click the Download all Scenarios button on
the Device library toolbar (second button from left).
Step 6 Select the scenario to be run by clicking it.
Step 7 To run the scenario, click the Run Scenario button on the
Device library toolbar (second button from the right). The SAS
InFusion device will then begin its session.
