SAS InFusion User Manual Version 2.0
LeCroy Corporation
89
Chapter 7: Licensing
Each SAS InFusion box comes with a one year license that entitles the user to software
updates. This chapter describes how to view and update the licensing information.
Displaying License Information
You display and update licensing information in the Device List window.
To display the licensing information for your SAS InFusion box:
Step 1 If needed, power on your SAS InFusion box and make sure that
it is attached to your Ethernet LAN. The licensing information for
the box is managed via SAS InFusion software.
Step 2 In the SAS InFusion software, open the Device List (if needed)
by selecting View > Views > Devices. The Device List window
opens (Figure 90).

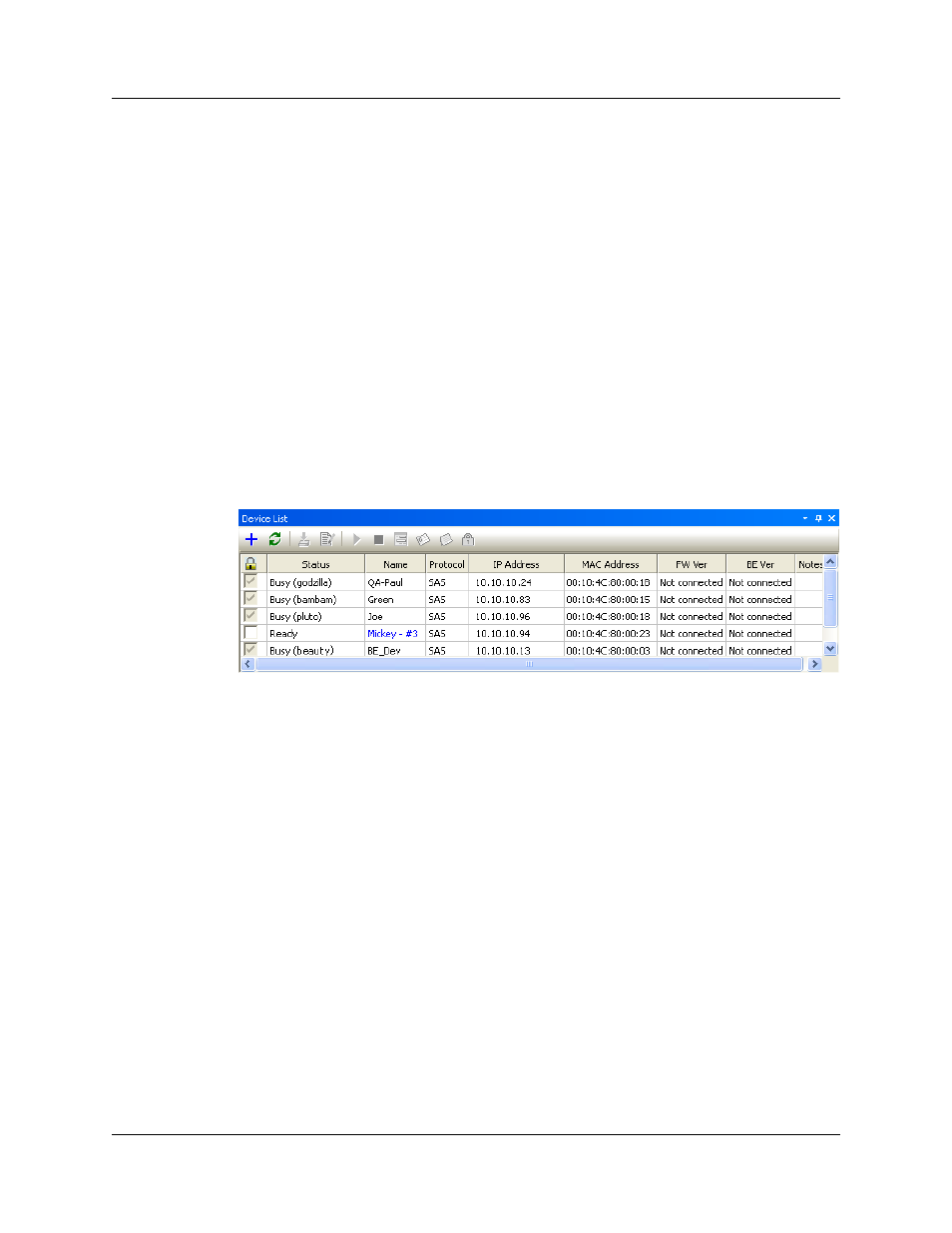

Figure 90 Device List Window: Selecting a Box
Step 3 To select your box, click in the checkbox in the first column
(under the Lock symbol). Selecting the box creates an Ethernet
connection to the device and locks out other users from
accessing it.
Selecting the device also activates the buttons on the Device List
toolbar and allows the software to read the firmware, BusEngine, and
licensing information within the SAS InFusion box.
Step 4 Click the Licensing button in the toolbar (looks like a lock). The
License dialog box opens (Figure 92).
The dialog shows the expiration date and a list of enabled features.
