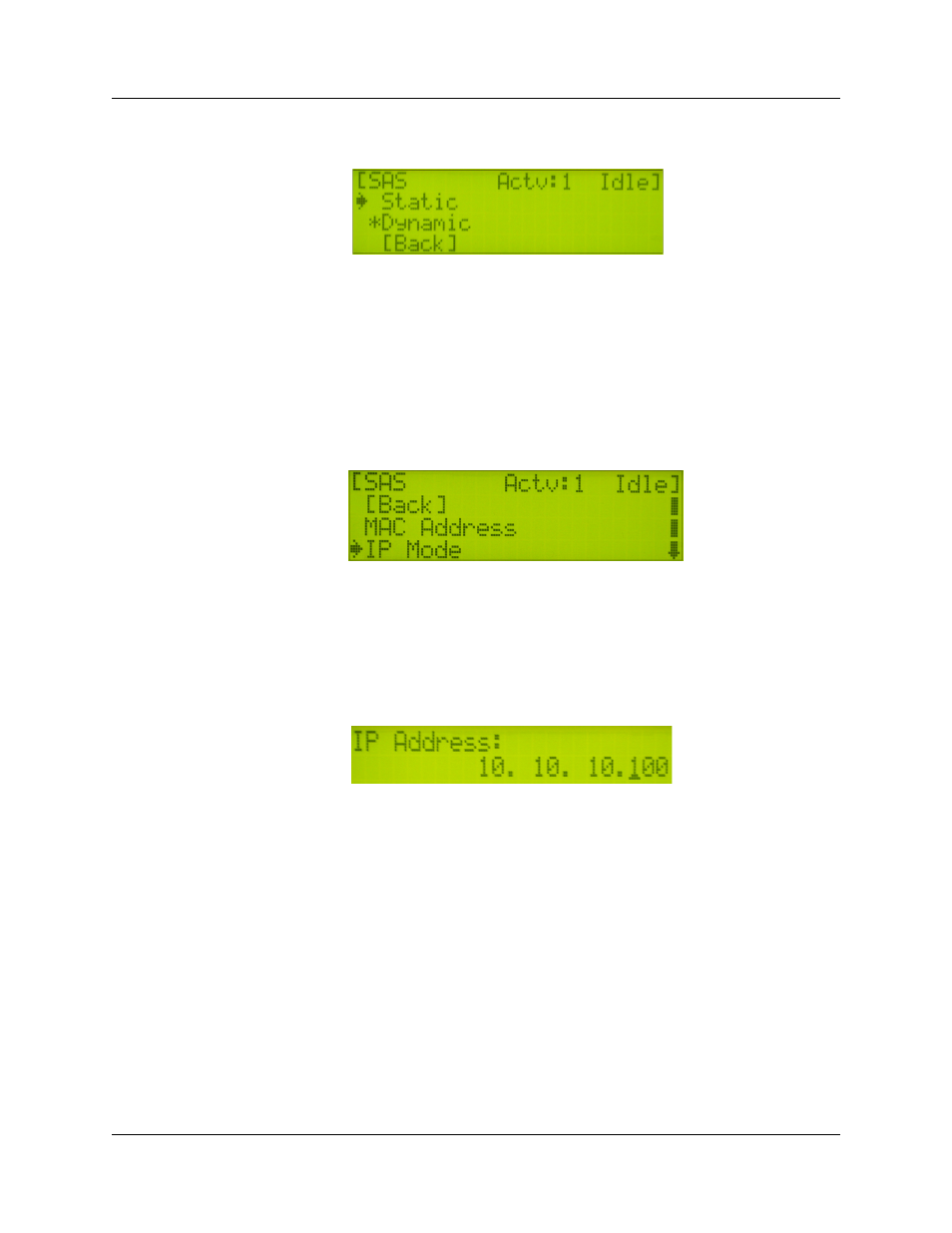

Figure 6 LCD Panel IP Mode Menu
Step 4 Press the Select button to select Static.
Step 5 Return to the previous menu by pressing the Bottom button
twice to move the Selection arrow to [Back], then press the
Select button to select it. The Box Setup menu appears
(Figure 7). The Selection arrow points to IP Mode.
Figure 7 LCD Panel Box Setup Menu: Arrow at IP Mode
Step 6 Press the bottom button once to move to IP Address, and then
press the select button to select it. The IP Address appears
(Figure 8).
Figure 8 LCD Panel: IP Address Display
Step 7 To edit the IP address, use the buttons as follows:
•
Bottom button: To move the cursor.
•
Top button: To edit the numbers.
•
Select (center) button: To go to the previous menu.
Step 8 When finished editing, press the Select button to return to the
previous menu.
Step 9 Repeat steps 6 and 7 for the subnet mask and default gateway.
Step 10 Once you have completed the IP addressing, reboot the box by
returning to the Box Setup menu and then pressing the Bottom
