SAS InFusion User Manual Version 2.0
LeCroy Corporation
23
Device Configuration
If a device is highlighted in the device list, selecting Device Configuration will bring up
a screen allowing you to configure the device. The screen is show below.

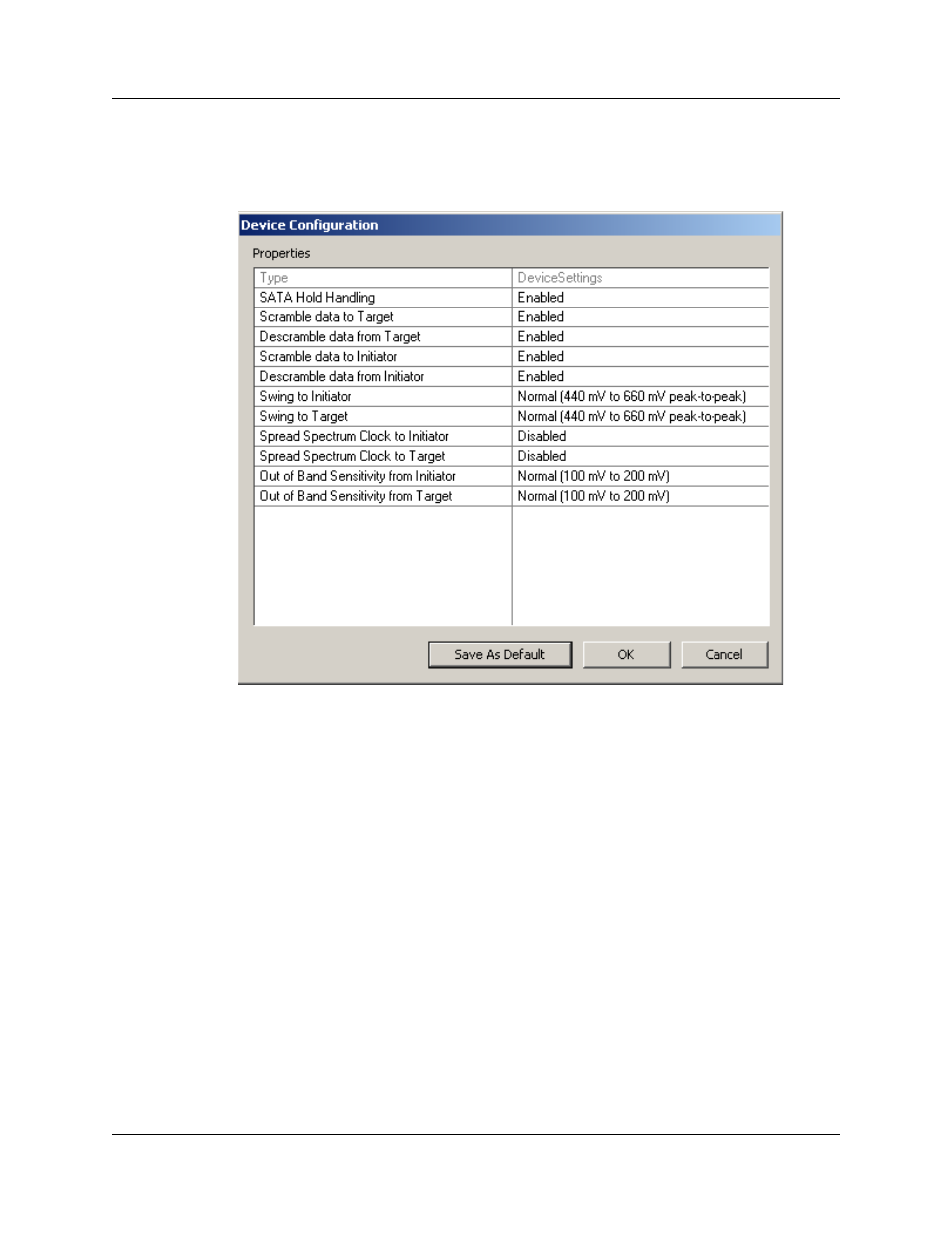

Figure 24 Device Configuration
When device configuration options are changed (see below for a description of these
options), you may save the new options as the default configurations for that device, or
you may save them temporarily by clicking OK. If you make a temporary change by
clicking OK, the new device configurations will remain until the InFusion box is powered
off (or the options are changed again through the Device Configuration screen).
If you select Save as Default, the InFusion box will need to be restarted to permanently
save the new configuration. A screen will appear as follows:
