Version 2.0 SAS InFusion User Manual
58
LeCroy Corporation
Step 5 Click OK to close the Event Properties dialog box.
Step 6 In the Global Rules area, click on the prompt to add an action
to be triggered by the RRDY (Reserved 0) (Figure 61).

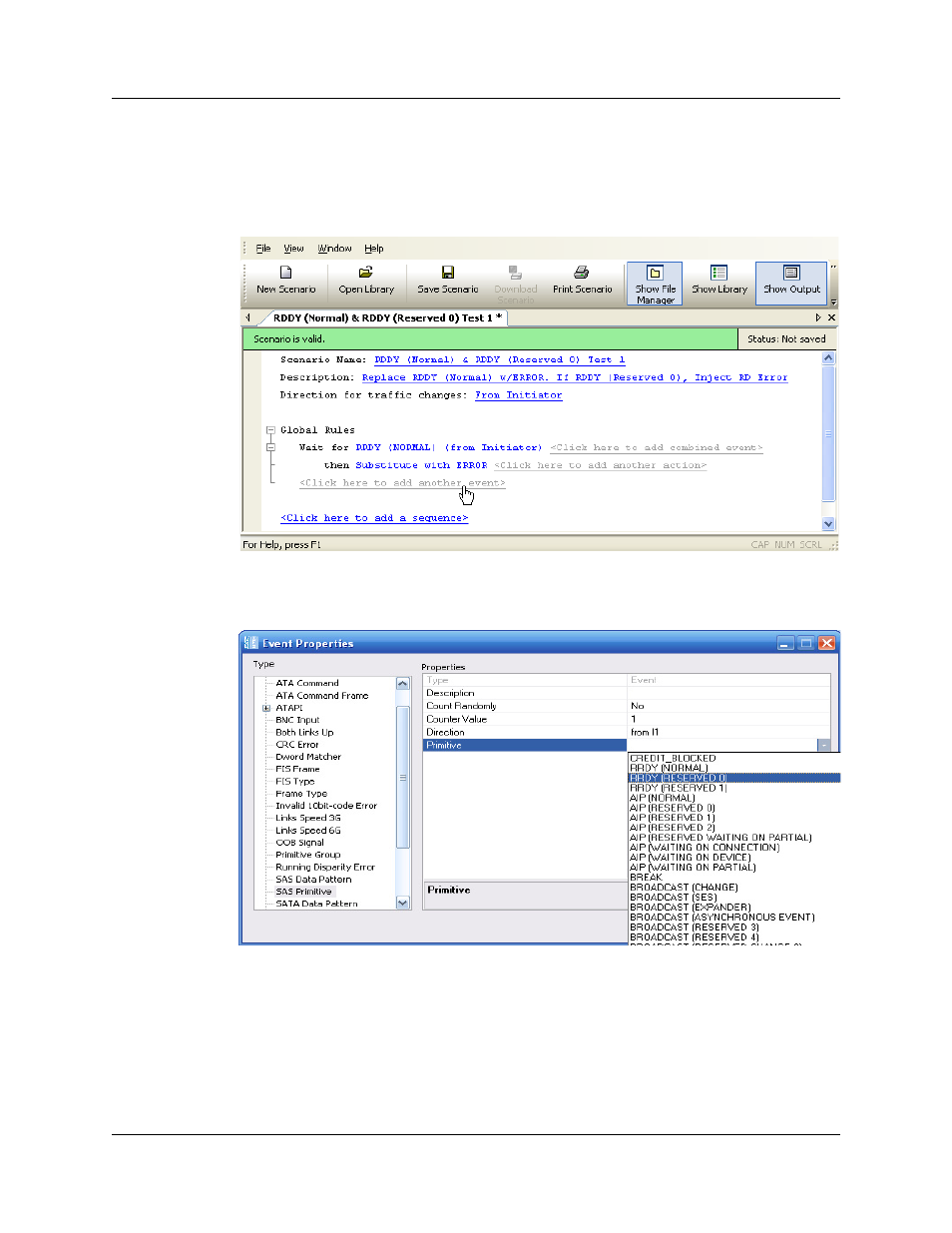

Figure 59 Example 4: Entering Second Event
Figure 60 Example 4: Event Drop-Down List
Step 7 The Action Properties dialog box appears (Figure 62). Use it to
choose Inject RD Error as the action triggered by RRDY
(Reserved 0).
