Version 2.0 SAS InFusion User Manual
54
LeCroy Corporation

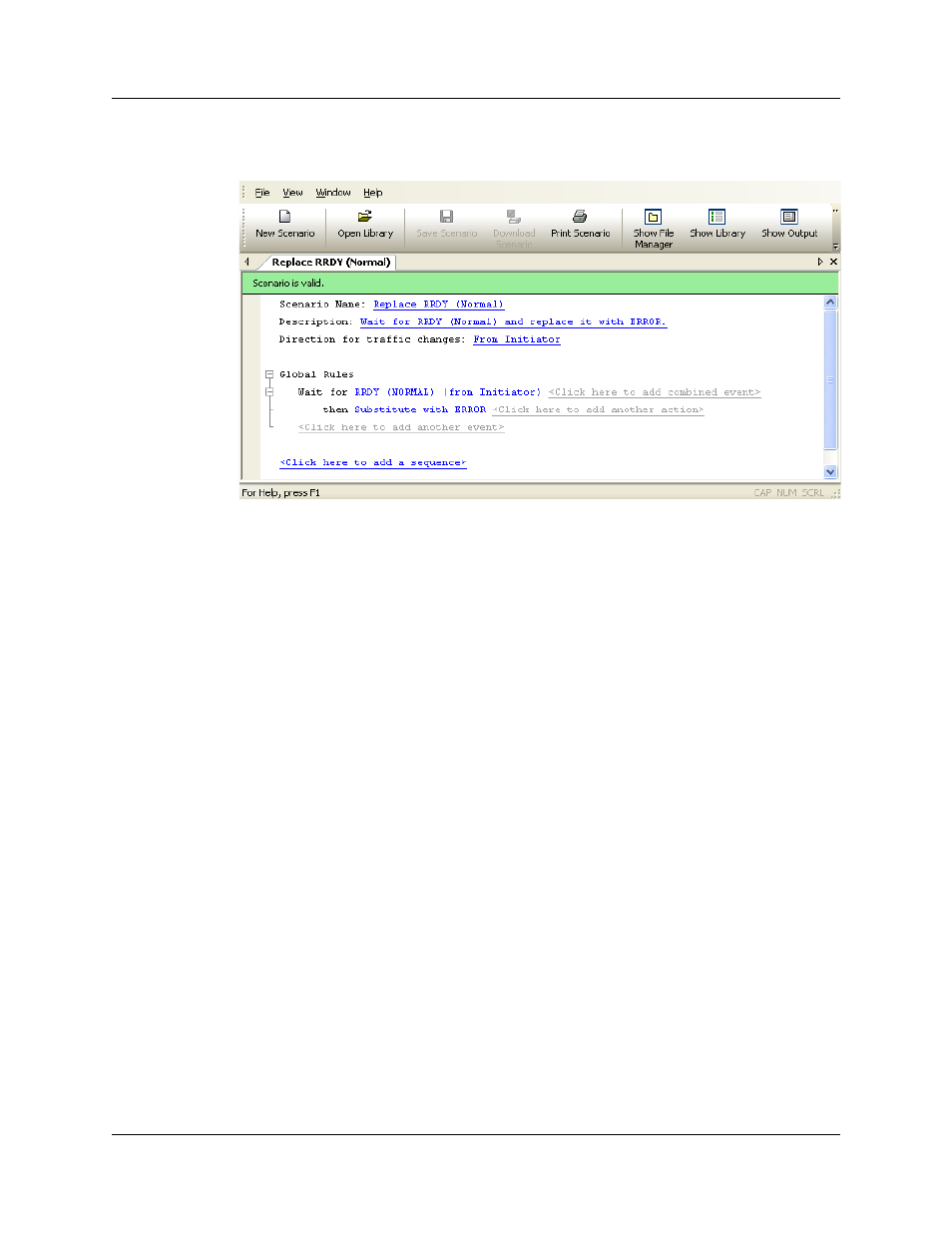

Figure 53 Example 2: Complete Scenario
Example 3:
Creating OR
Conditions
In this example, the Global Rules area of the scenario waits for either of two types of
RRDY primitive and replaces them with an ERROR primitive.
This example includes a combined event (a logical OR association of two or more single
events). Here, the combined event consists of any occurrence of RRDY (Normal) or
RRDY (Reserved 0).
Step 1 Click the New Scenario button in the main library or one of the
device libraries. At the top of the scenario area, enter general
scenario information, including scenario name, description, and
direction of traffic change.
Note: For an example of filling-in the general scenario information fields,
see Figure 41 and Figure 42.
Step 2 In the Global Rules area, click on the prompt to add an event.
Step 3 The Event Properties dialog box appears. As you did in example
1 of this chapter, choose RRDY (Normal) as the first primitive
you want to monitor.
Step 4 Click on the add combined event prompt to add a second event
(Figure 54).
Step 5 The Event Properties dialog box appears (Figure 55). Choose
RRDY (Reserved 0) as the second primitive you want to
monitor.
Step 6 Click OK to close the Event Properties dialog box.
