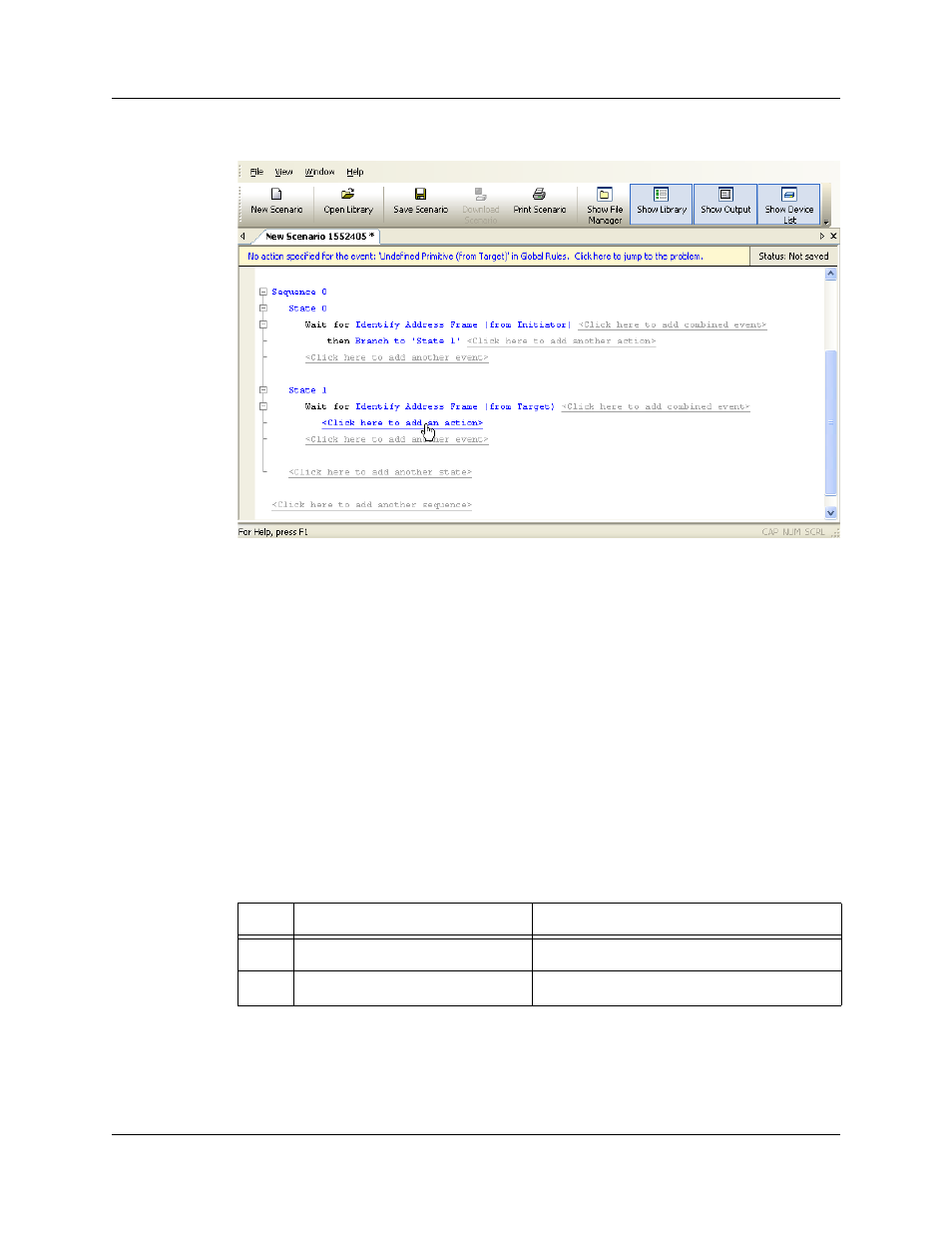

Figure 80 Example 7: Adding an Action to the Second State
Step 14 The Action Properties dialog box appears. In this example, you
enter the action Beep, and you set the duration of the beep for
1 second.
Step 15 Click on OK to close the Action Properties dialog box.
Step 16 You are finished creating the first sequence. Click on the add
another sequence prompt to create an area in the scenario
for the second sequence (Sequence 1) (Figure 81).
Step 17 Create two states in the second sequence with the
characteristics shown in Table 15.
Step 18 In the File menu, select Save Scenario to save the scenario
(Figure 82).
Table 15 Example 7: States for Second Sequence
State Event Action
0 Identify Address Frame from Target Branch to State 1
1 Identify Address Frame from Initiator Beep for 2 seconds.
