Table 10 Global Rules Examples
Example 1:
Creating a
Single Event
and Action
(Removes a
Primitive)
In this example, the Global Rules area of the scenario waits for each RRDY Normal
primitive from the initiator and removes it.
Step 1 Click the New Scenario button in the main library or one of the
device libraries. At the top of the scenario area, enter general
scenario information, including scenario name, description, and
direction of traffic change.
Note: For an example of filling in the general scenario information
fields, see Figure 41 and Figure 42.
Step 2 In the Global Rules area, click on the prompt to add an event
(Figure 43).
Step 3 The Event Properties dialog box appears (Figure 44). In the
Type column on the left, choose SAS Primitive.

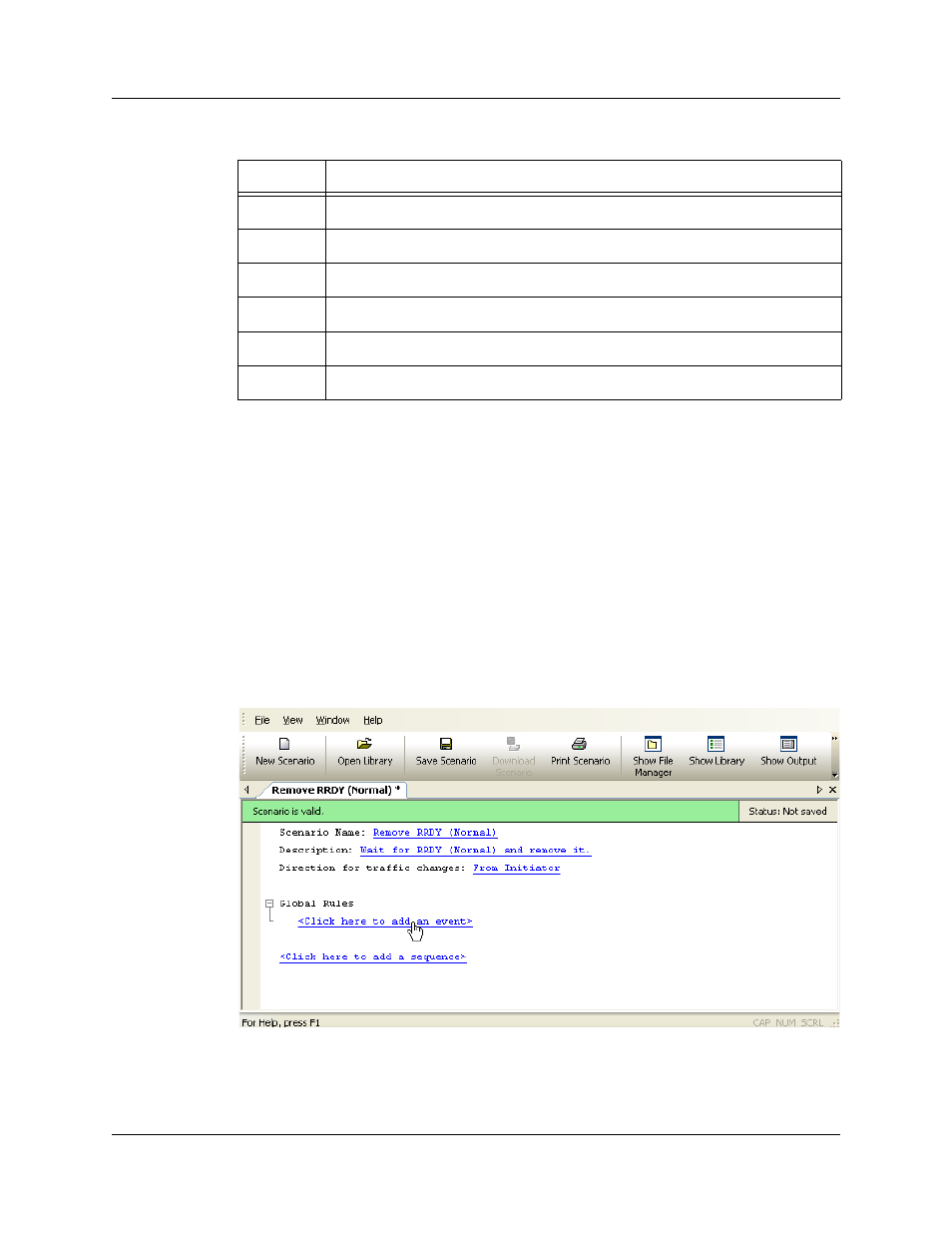

Figure 43 Example 1: Entering an Event
Example Description
1 Creating a single event and action (removes a primitive).
2 Creating a single event and action (replaces a primitive).
3 Creating a combined event (a logical OR association of multiple events) and an action.
4 Creating multiple triggers and actions.
5 Creating multiple actions on a single event.
6 Using timers.
