pin #

COLOR SIGNAL NAME:

(left)

1)

WHITE:

signal ground

2)

BLACK: - serial data out from Brick Brains

3)

RED:

+ serial data out from Brick Brains

4)

GREEN: - serial data in to Smart Brick Brains

5)

YELLOW: + serial data in to Smart Brick Brains

(right)

6)

BLUE:

signal ground

To cross wire the RS-422 / RS-485 signals from the Smart Brick

System to the RS-232 serial port of an IBM compatible or Pioneer
LaserDisk (or DVD) player, cross connect the signals as follows:

IBM IBMPioneer LaserDisk (or DVD)

DB-25 DE-9 DB-15

SIGNAL SIGNAL FROM/TO Smart Brick

Brain

2

3

2

DATA OUT - Rx data in to Brick Brain (GREEN)

3

2

3

DATA IN - Tx data out from Brain (BLACK)

7

51, 11 or 15 GROUND signal ground (BLUE or WHITE)

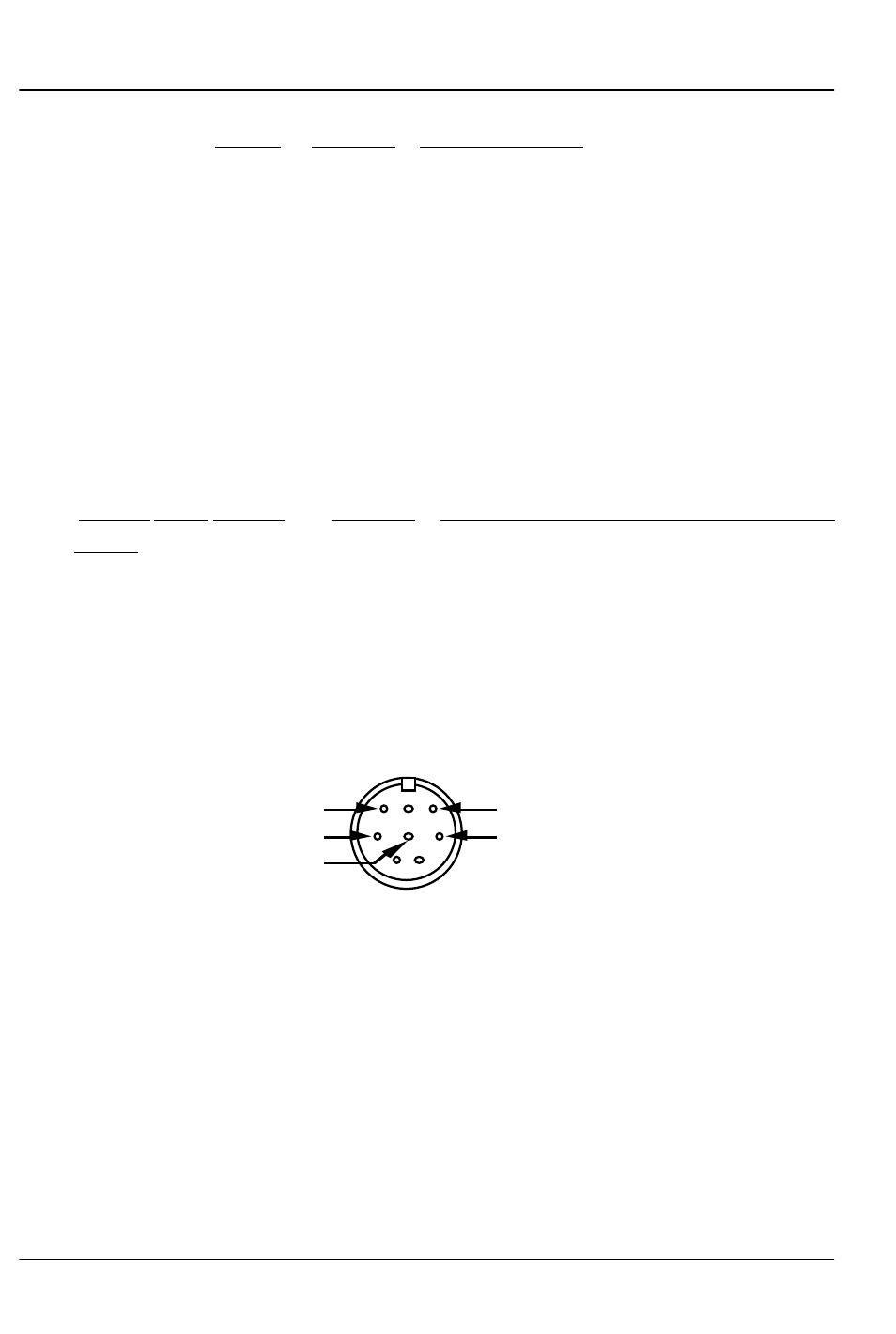

Apple Macintosh computers have true RS-422 serial ports

built in. To connect to the Smart Brick System, the pin out is as fol-
lows for a Macintosh mini-DIN-8:

to + serial data in to card (#5 yellow)

to - serial data in to card (#4 green)

1 2

3

4

5

6 7

8

from - serial data out from card (#2 black)

from + serial data out from card (#3 red)

signal ground (#1 blue or #6 white)

The Smart Brick System expects to see the serial data in the

following format:

ONE START BIT
EIGHT DATA BITS
TWO STOP BITS

There are a number of methods which you can use to access

a number of Smart Brick Brains and Digital Audio Repeaters at
the same time. If you are controlling the animation and audio
