- Enabling the Outputs When Stopped -

This jumper plug must be installed for the Smart Brick to work. It

has two possible positions. This position should be used if you
want the outputs to be active at their programmed levels, even
when the system is not advancing frames. This is used if you
don’t care that some outputs might stay on even when the sys-
tem is no longer advancing frames. It is almost always used if
there are any analog functions attached to a Smart Brick, as dis-
abling the outputs which feed a D/A converter would cause it to
slam to one of it’s extremes.

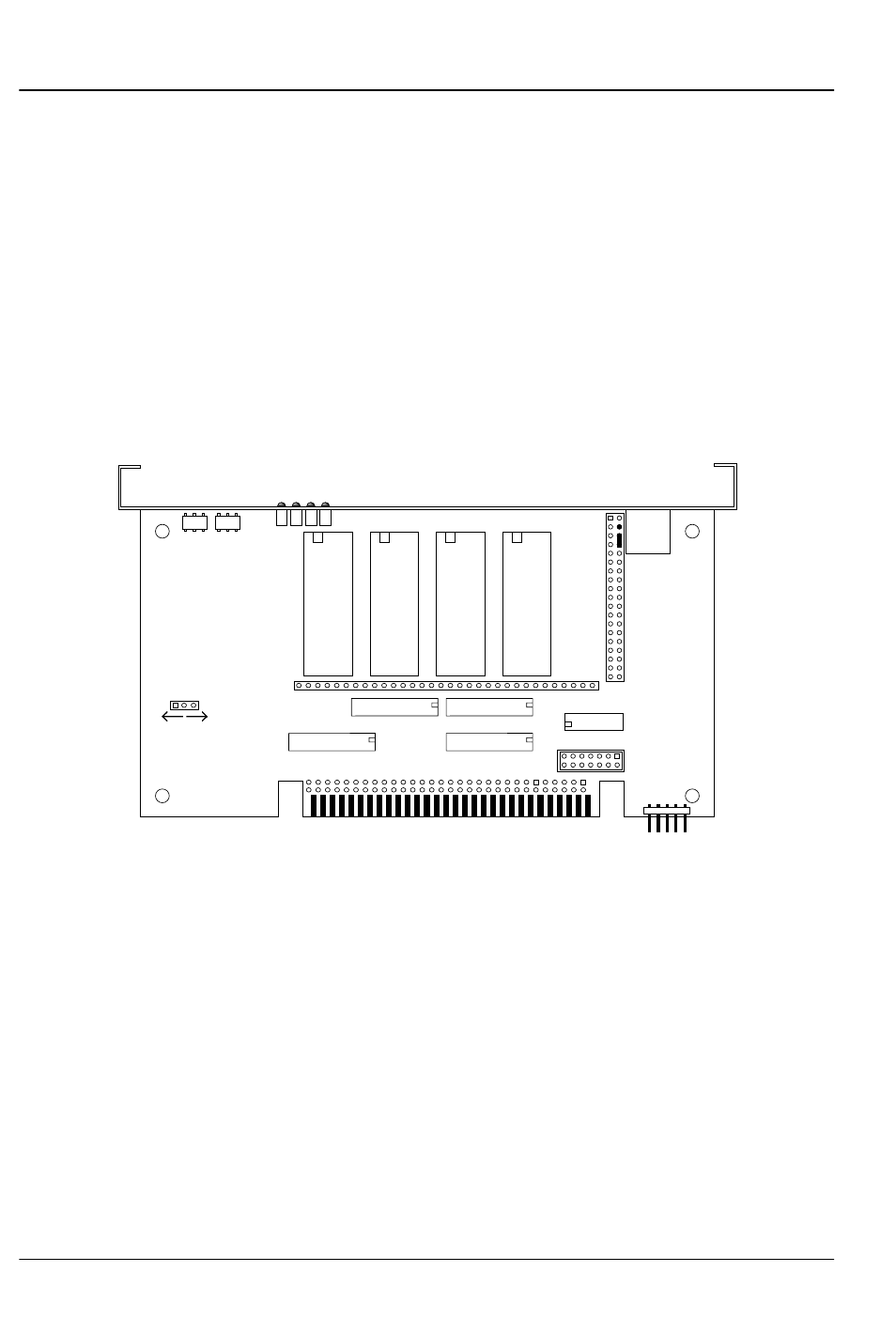

0

channel

U8

1

channel

U7

2

channel

U6

3

channel

U5

U14 (ch 0)

U13 (ch 1)

U12 (ch 2)

U11 (ch 3)

JP3

JP2

DMX-

512

in/out

DMX-512 Address

DMX heart Brain heart

DMX data

DMX Error

U17

26LS32

JP6

DMX-512

Forever!

Yes

No
