- Smart Brick MiniBrain -
The Smart Brick MiniBrain is a smaller version of our other Smart
Brick Brains. As with all Smart Brick Brains, it can be used to control
any number of Smart Bricks via a Smart Brick Network. It can be
used when you need to run Smart Bricks, Analog Smart Bricks, or
Electronic FeedBack (EFB) Smart Bricks in an installation which
doesn’t need to be synchronized to an external time code
and/or doesn’t need direct random access to multiple shows.
The Smart Brick MiniBrain can be used to control shows of up
to one MByte in length. This translates into a show capacity of al-
most ten hours at thirty frames (updates) per second. The
MiniBrain can divide the memory equally into two separate
shows. These can be selected by an external input.

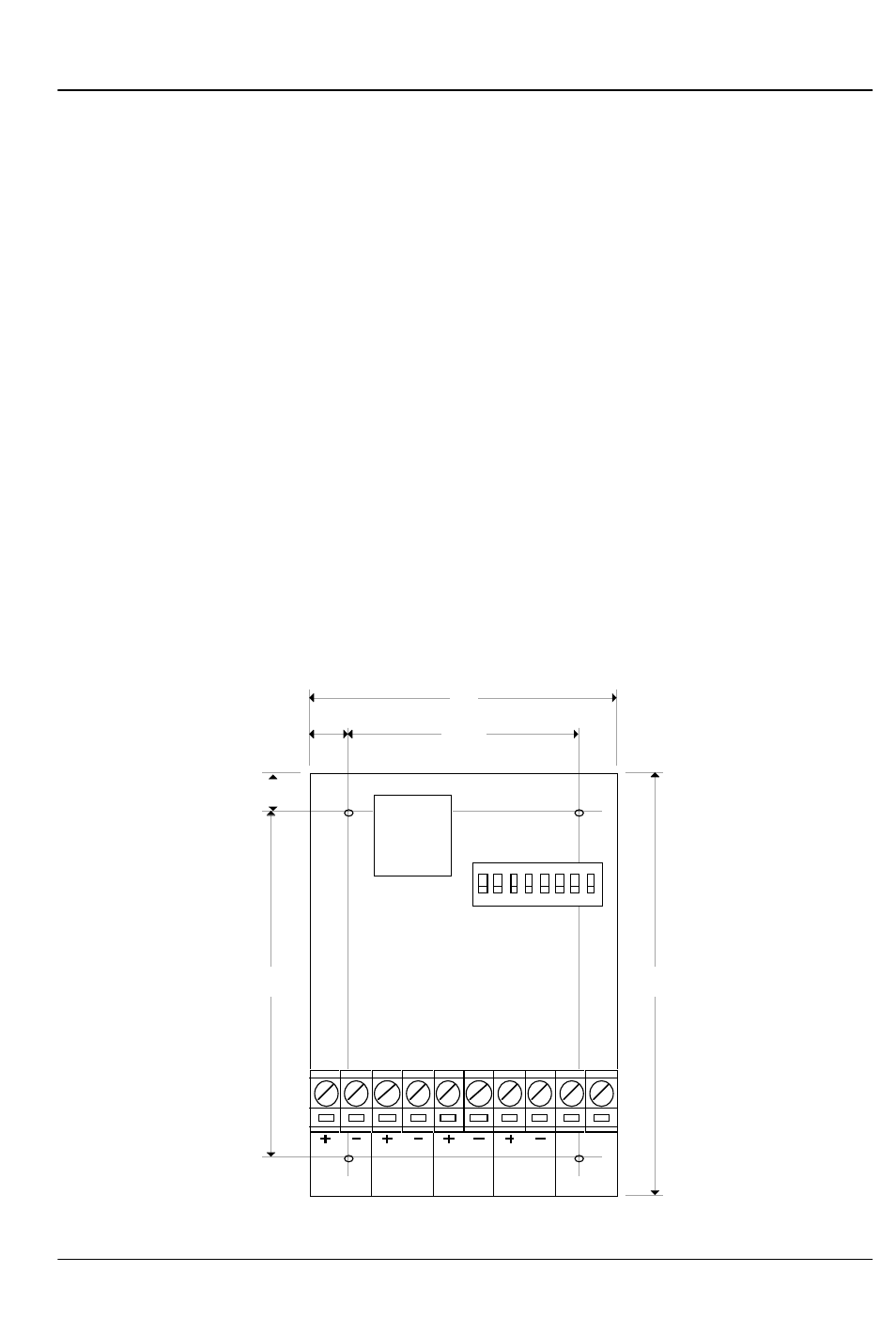

The MiniBrain is a small (2” x 2-3/4”) circuit board. Holes (.156”
dia.) at each corner allow it to be mounted on screw standoffs or
it can be snapped into Augat 2-3/4” Snap Track:
0.25" 1.5"
0.25"
2.75"
2"
2.25"
Green
Start
White
Reset
Red
Stop
Blue
Ext.Clk./
Dbl.Show
9-24vdc
Power
1 2 3 4 5 6 7 8
off
Smart
Brick
Network
Output
DipSwitch
