Gilderfluke&Co 'Smart' Brick Animation Control System - Manual (Page 27)

- 27C010, 27C020, 27C040 or 27C080
Eprom -

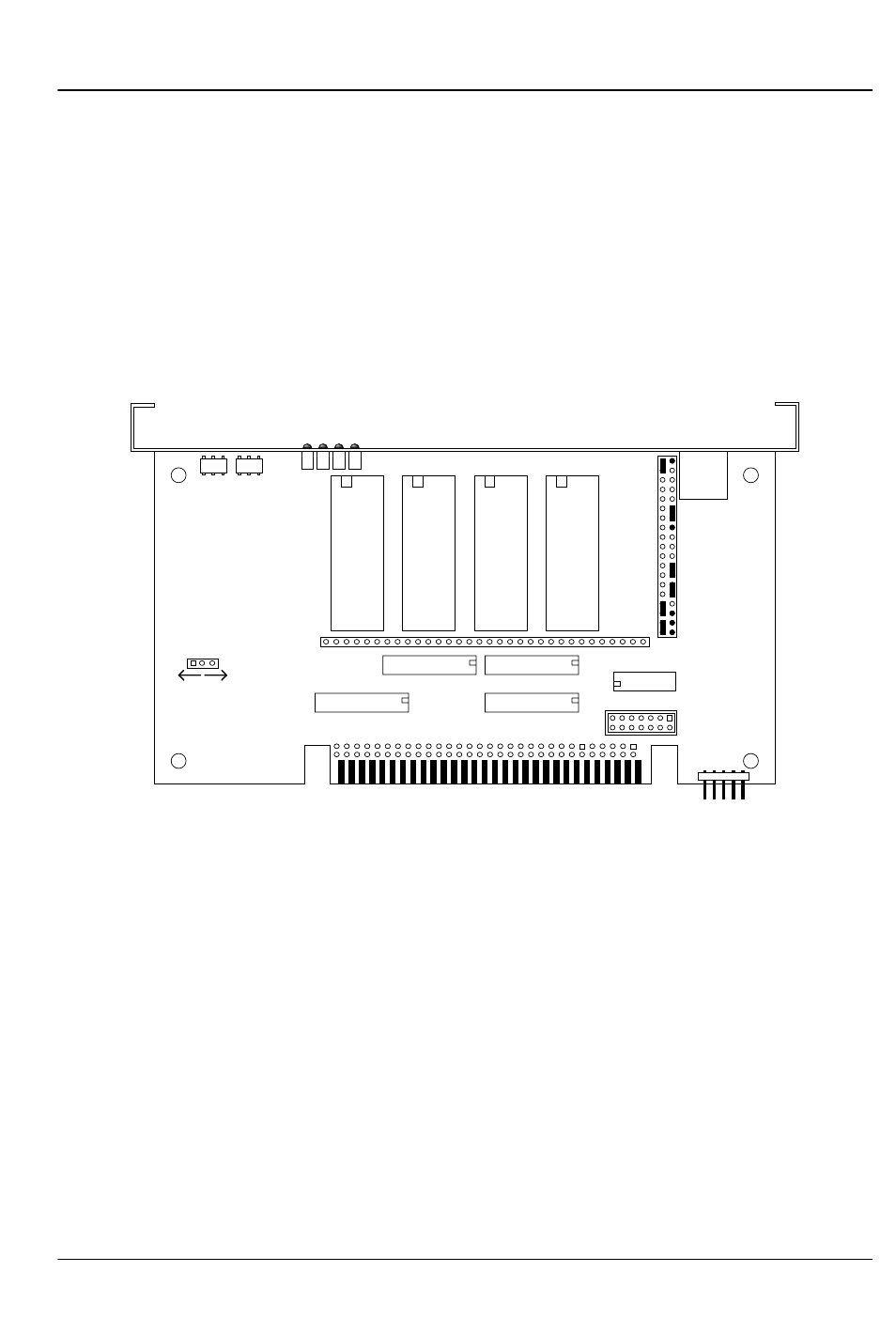

To configure a Playback-only Smart Brick for use with:
27C010 Eprom for a capacity of 131,072 (128 K) frames
27C020 Eprom for a capacity of 262,144 (256 K) frames
27C040 Eprom for a capacity of 524,288 (512 K) frames
27C080 Eprom for a capacity of 1,048,576 (1024 K) frames
0
channel
U8
1
channel
U7
2
channel
U6
3
channel
U5
U14 (ch 0)
U13 (ch 1) U12 (ch 2)
U11 (ch 3)
JP3
JP2 DMX-
512
in/out
DMX-512 Address DMX heart Brain heart DMX data DMX Error
U17 26LS32
JP6
DMX-512
Forever!
Yes No
27C010
27C020
27C040
27C080 27C010
27C020
27C040
27C080 27C010
27C020
27C040
27C080 27C010
27C020
27C040
27C080
