enFORCE
DSP1500 SAN Unit Operation Manual
PAGE 6－13 (Rev 4)
Chapter 6: System Operation

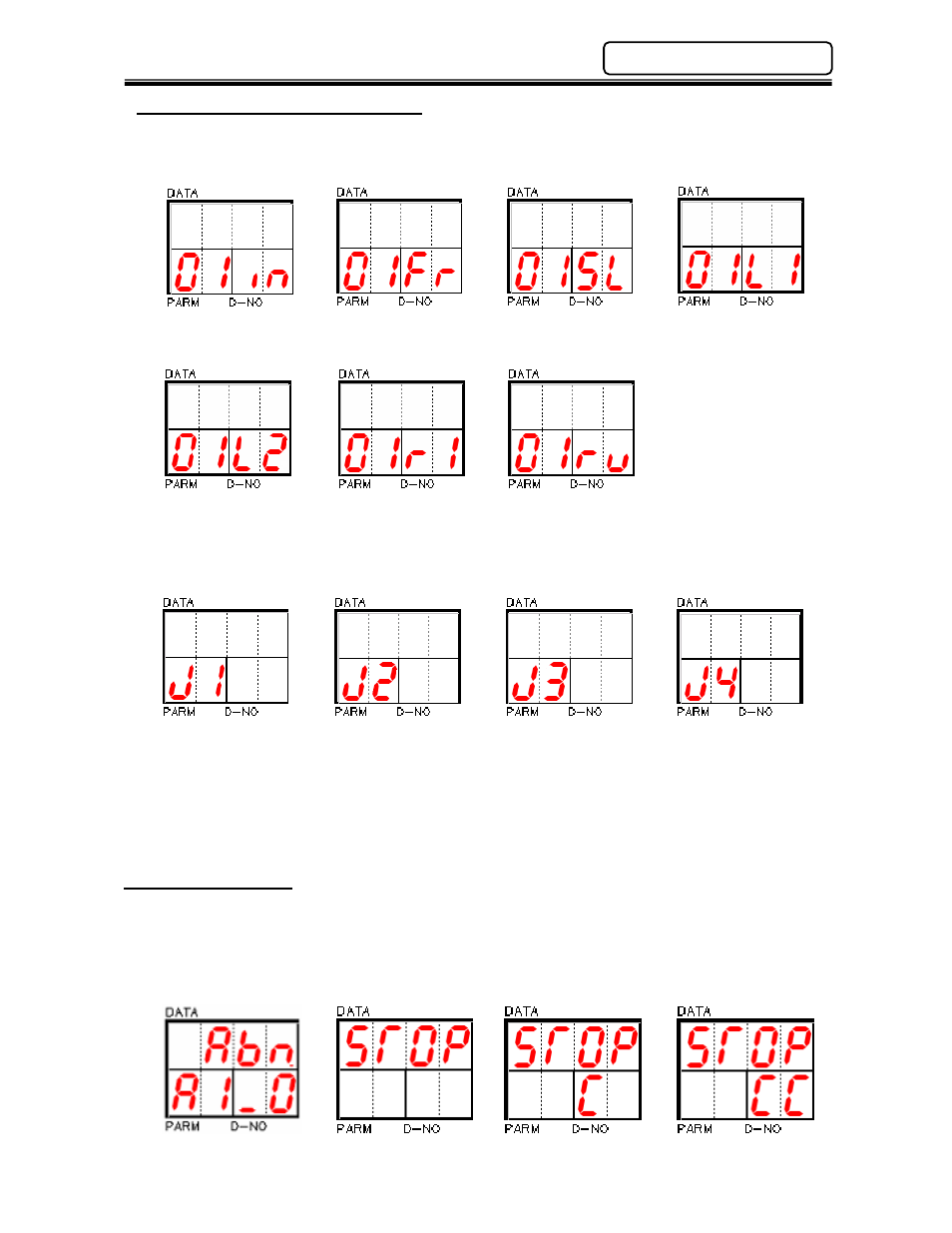

6.3.7 Operating Condition Display
The following speed conditions are shown on the display when in automatic operation:
■ Slow Start Speed ■ Approach Speed ■ Part Search Speed ■ Press Speed 1
■ Press Speed 2 ■ Decompression ■ Return
The following speed conditions are shown on the display when in Jog (Manual) operation.
■ Home Search ■ Home Return ■ Advance Jog (1) ■ Return Jog (2)
(1) Advance Jog is depicted in 3 speeds; J3 = High Speed Advance, J5 = Middle Speed Advance,
J7 = Slow Speed Advance.
(2) Return Jog is depicted in 3 speeds; J4 = High Speed Return, J6 = Middle Speed Return,
J8 = Slow Speed Return.
6.3.8 Status Display
When an abnormal occurs or when the STOP or Limit signals are OFF, the status is displayed as
follows:
■ ABNORMAL ■ STOP signal OFF ■ CW signal OFF ■ CCW signal OFF
(Advance Limit) (Return Limit)
