DSP1500 SAN Unit Operation Manual
PAGE 6－25 (Rev 4)
Chapter 6: System Operation
♦ Load Control (Method 0)
Upon start of cycle, the press will operate until it achieves [14: Target Load]. During
the press cycle, checks are performed for “Interference Check” / “Part Check”, Load
and Distance. If any of these values are compromised, the press will stop and return as
programmed.
(See corresponding sections for Interference Check and Part Check explanations.)

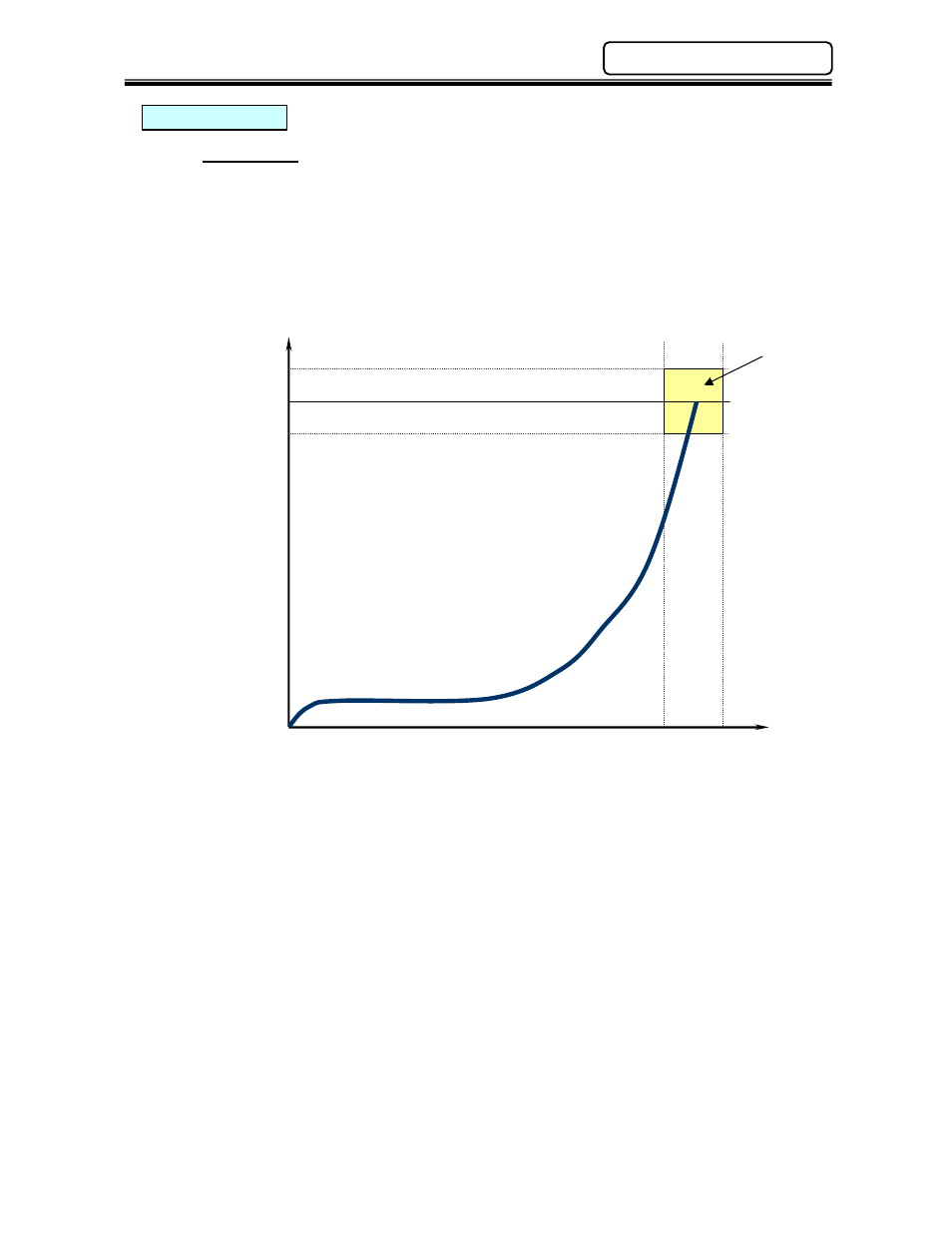

Press Methods
Load
Distance
[13] Load High Limit
[14] Target Load
[12] Load Low Limit
[31]
Distance
Low Limit
[32]
Distance
High Limit
Final Judgment Zone
