FEC DSP1500 (SAN3) User Manual
Page 85
enFORCE
DSP1500 SAN Unit Operation Manual
PAGE 6－9 (Rev
4)
Chapter 6: System Operation
6.3.3 RUN Status Key Operation
Selecting [Real Time Display Mode], [Press Result Display Mode] and [Parameter Display Mode]
is possible by pressing the [MODE] button. When the press is operating, the [Operating Condition
Display] is displayed.
[Status Display] will be displayed when abnormalities occur or when the STOP or Limit signals are
OFF.

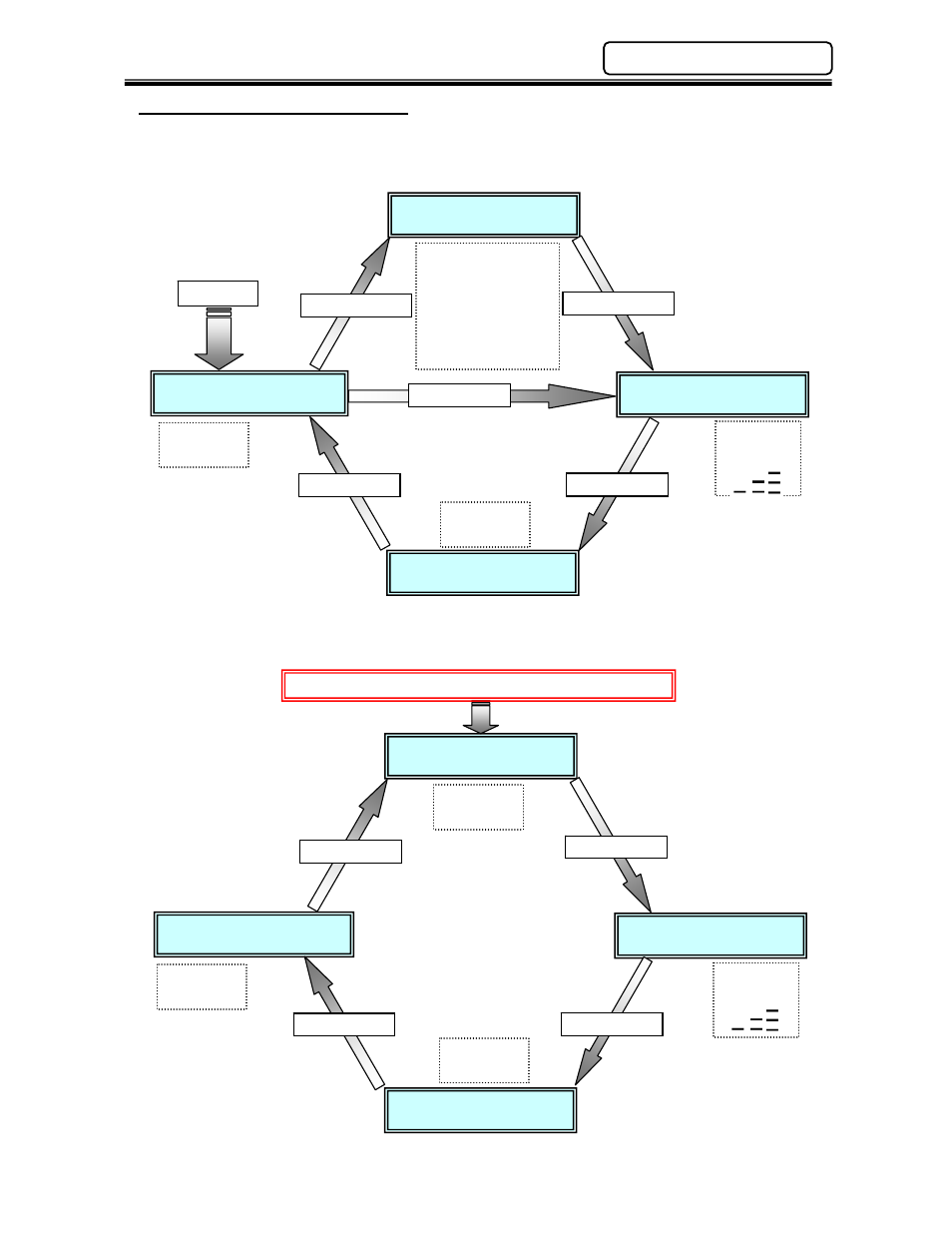

The following diagram shows how to change the display with the [MODE] button.
Real Time
Display Mode
Parameter
Display Mode
Press Result
Display Mode
Operating Condition
Display
Power ON
Press Start
Press Finish
[MODE]
[MODE]
[MODE]
D-NO
1 Digit Display
D-NO
2 Digit Display
D-NO
Digit on the Left
D-NO
in: initial
Fr: Approach
SL: Slow Down
Ld
: Load Speed
Real Time
Display Mode
Press Result
Display Mode
Status
Display
D-NO
1 Digit Display
D-NO
Digit on the Left
Abnormal or STOP / Limit signal OFF
DATA
Abn/STOP
Parameter
Display Mode
D-NO
2 Digit Display
[MODE]
[MODE]
[MODE]
[MODE]
D-NO
In: Slow Start
Fr: Approach
SL: Part Search
L1
: Press Speed 1
L2
: Press Speed 2
r1
: Decompression
ru
: Return
