FEC DSP1500 (SAN3) User Manual
Page 33
enFORCE
DSP1500 SAN Unit Operation Manual
PAGE 3－3 (Rev.
4)
Chapter 3: System Description

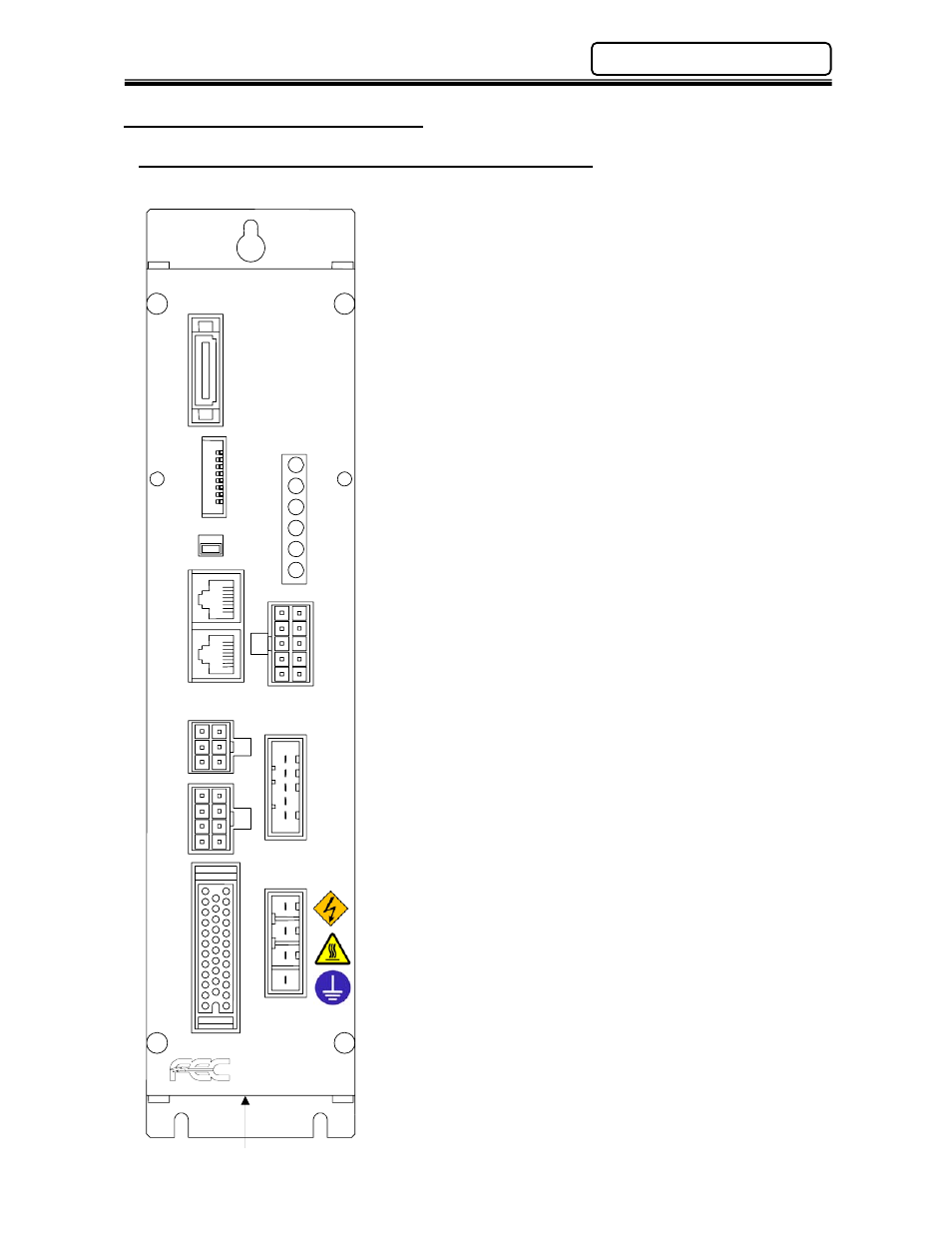

3.2 DSP1500 SAN Unit Front Panel
3.2.1 SAN Unit Front Panel Switches and Connectors
CON1:
For Display Unit (SAN3-DP*S) connection.
SW1:
Sets press number and special
configuration
features.（See Section 4.8）
RUN/BYPASS: Controller
Enable/Disable
switch.
RUN:
Enable
BYPASS:
Bypass Mode（Disable）
RS485:
Bi-directional Communication ports.
RESOLVER:
Resolver connection for tool Motor/Resolver
cable.
MON.:
(Monitor
Output)
Pressure analog voltage and distance pulse
output
connection.
T/D:
Connection for tool Load Cell cable.
PLC:
Connection for I/O & Limit Sensor Cable.
Connects to press limit sensors and
PLC or Input-Output devices.
MOTOR:
Motor Connection for tool Motor/Resolver
cable.
AC 200-220V:
Connection for Input Power. (SAN3)
3
phase,
180-242VAC,
50/60Hz
Connection for Input Motor Power. (SAN4)
3
phase,
180-242VAC,
50/60Hz
CONTROL IN:
Connection for Input Control Power. (SAN4)
1
phase,
180-242VAC,
50/60Hz
M
O
T
O
R
A
C
2
0
0
-
2
2
0
V
P
L
C
T
/
D
R
S
4
8
5
R
U
N
B
Y
P
A
S
S
S
W
1
C
O
N
1
P
O
W
E
R
B
U
S
Y
S
V
.
A
B
N
.
A
C
C
.
R
E
J
.
FEC
SAN3-24SM
Ｄ
Ｓ
Ｐ
１
５
０
０
M
O
N
.
R
E
S
O
L
V
E
R
CONTROL IN
