DSP1500 SAN Unit Operation Manual
(Rev. 4)
PAGE 3-10

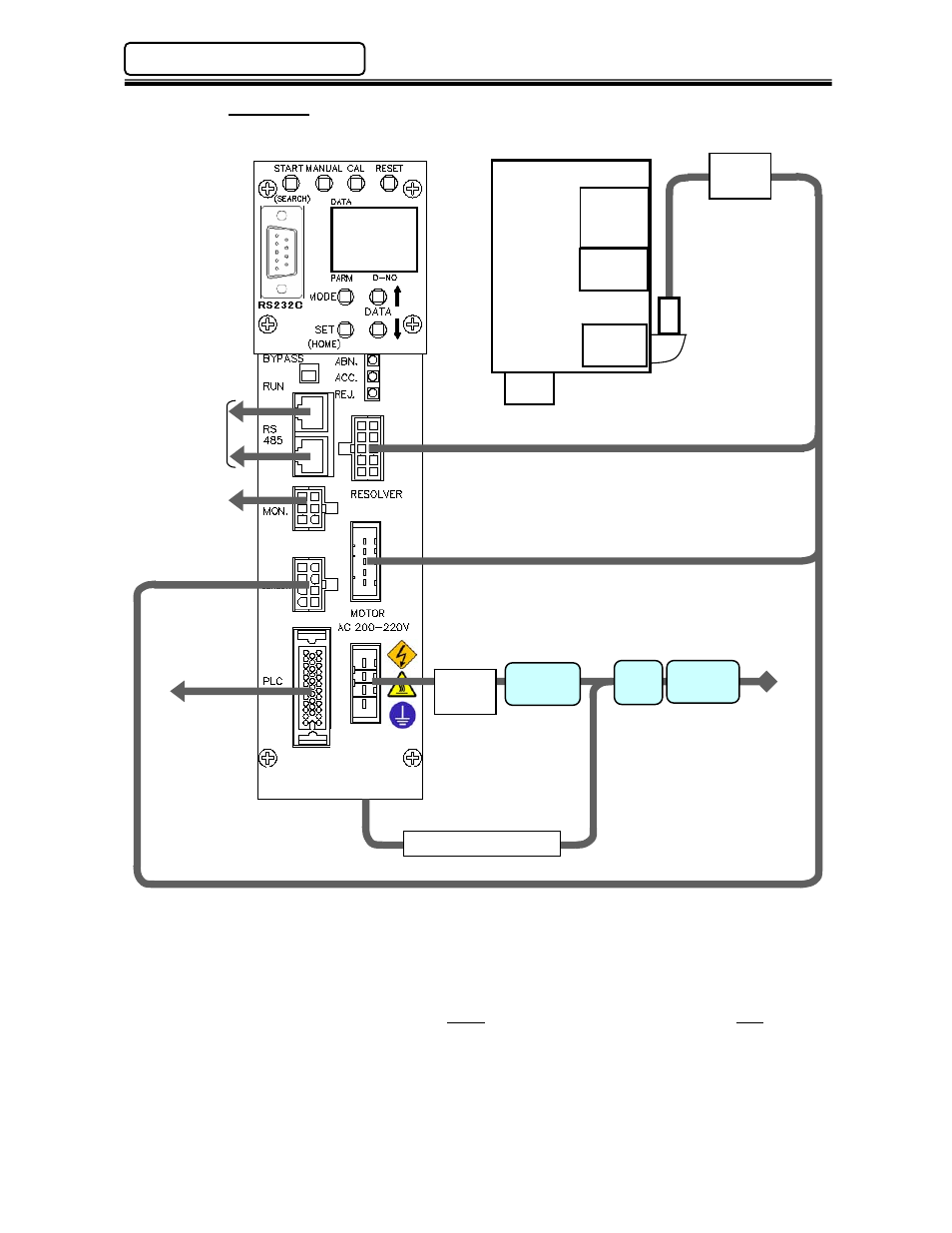

Chapter 3: System Description
DPM Series
NOTE:
1. Clockwise and Counter-clockwise Sensors/cables (CCW & CW) are not used in this series.
2. Motor, Resolver and Transducer (Load Cell) cables are combined into 1 cable.
3. Motor and Control input power is separated on SAN4 Units only.
4. This press series uses the SAN3/4-24HS controller. It cannot use the SAN3/4-24S.
5. Brake Units are not available in this series.
SAN3-
24HS
P
L
C
Motor
S
S
A
A
N
N
U
U
n
n
i
i
t
t
T
T
o
o
o
o
l
l
Monitor Signal
PC, PLC
or Main Unit
Resolver
Tool
Cable
Pre-
amplifier
180~242VAC
Customer Supplied
Noise
Filter
Circuit
Protector
Control Power Cable
※On SAN4 Only
SAN4
Contactor
Power
Cable
