enFORCE DSP1500 SAN Unit Operation Manual
(Rev 4) PAGE 6－40
Chapter 6: System Operation
Part Check 3 settings are available when the Judgment Operation is set to 1 or 3. Set these
values if additional Check Limits are required during the load portion of the press operation.
¾ Data Number 23 - Part Check 2 Load Low Limit
¾ Data Number 24 - Part Check 2 Load High Limit
ƒ The minimum and maximum acceptable limits for the measured load value occurring
between [44: Part Check 2 Start Distance] and [45: Part Check 2 End Distance].
A Low Limit setting is possible from 0 to full-scale value.
A High Limit setting is possible from 0 to 110% of full-scale value.
¾ Data Number 44 - Part Check 2 Start Distance
ƒ The distance at which “Part Check 2” starts. This distance is measured from
the [18: Distance Measurement Start Load] value.
A setting is possible from 0 to stroke distance limit.
¾ Data Number 45 - Part Check 2 End Distance
ƒ The distance at which “Part Check 2” ends. This distance is measured from
the [18: Distance Measurement Start Load] value.
A setting is possible from 0 to stroke distance limit.
¾ Data Number 25 - Part Check 3 Load Low Limit
¾ Data Number 26 - Part Check 3 Load High Limit
ƒ The minimum and maximum acceptable limits for the measured load value occurring
between [46: Part Check 3 Start Distance] and [47: Part Check 3 End Distance].
A Low Limit setting is possible from 0 to full-scale value.
A High Limit setting is possible from 0 to 110% of full-scale value.
¾ Data Number 46 - Part Check 3 Start Distance
ƒ The distance at which “Part Check 3” starts. This distance is measured from
the [18: Distance Measurement Start Load] value.
A setting is possible from 0 to stroke distance limit.
¾ Data Number 47 - Part Check 3 End Distance
ƒ The distance at which “Part Check 3” ends. This distance is measured from
the [18: Distance Measurement Start Load] value.
A setting is possible from 0 to stroke distance limit.

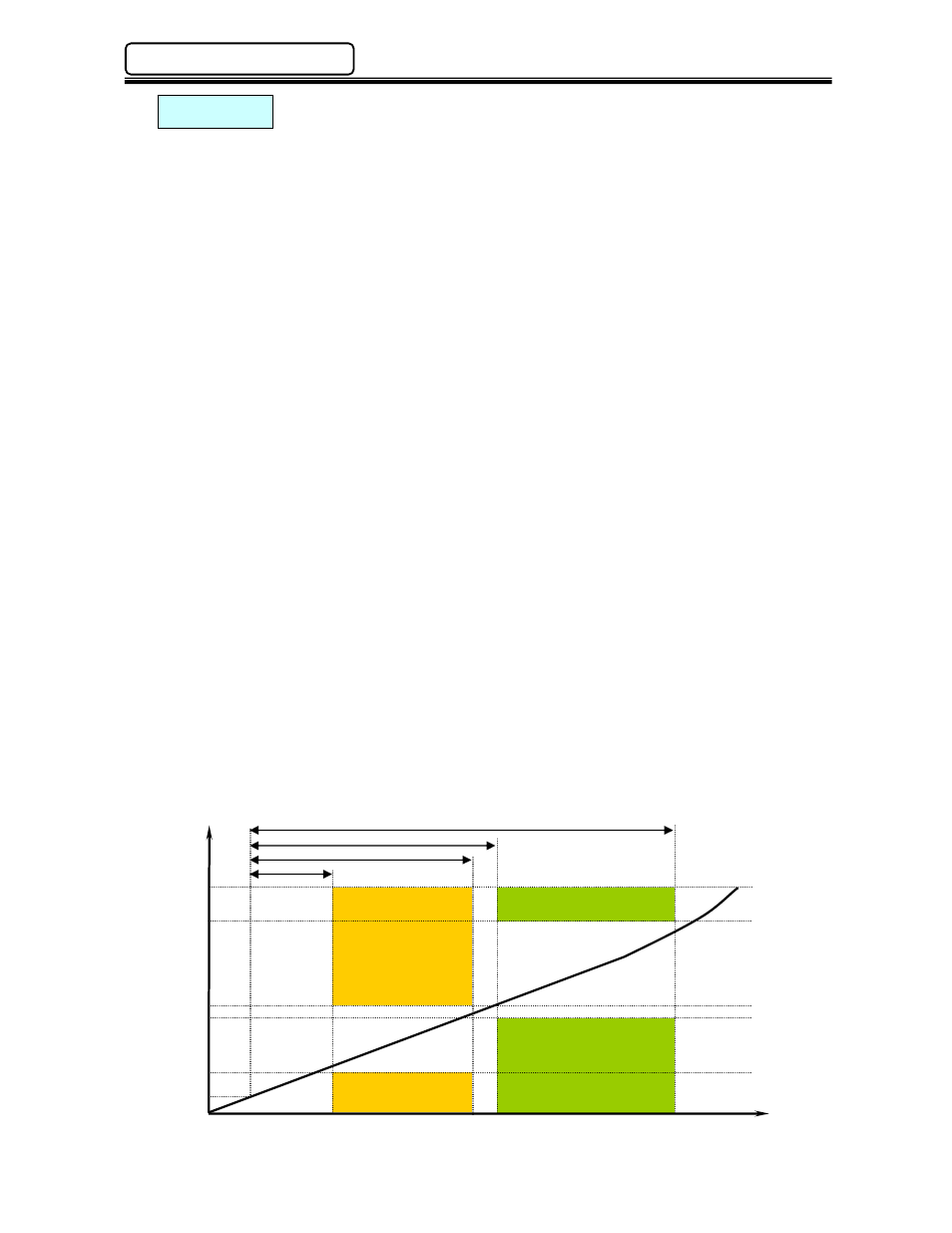

Load
[44]
Part Check 2
Start Distance
Final Position
Time/
Distance
[45]
Part Check 2
End Distance
[46]
Part Check 3
Start Distance
[25] Part Check 3
Load Low Limit
[24] Part Check 2
Load High Limit
[23] Part Check 2
Load Low Limit
[26] Part Check 3
Load High Limit
[47]
Part Check 3
End Distance
[18] Distance
Measurement
Start Load
Part Check 3
