enFORCE DSP1500 SAN Unit Operation Manual
PAGE 4－23 (Rev. 4)
Chapter 4: System Setup and Wiring
4.8.2 Special Configuration Settings (DIP Switch 1~3)
1 ON: CAL/Zero acceptance window = +/-10% of full scale load.
OFF: CAL/Zero acceptance window = +/-4% of full scale load. (Default)
2 ON:
Parameter changes made by communicating are not saved on EEPROM.
OFF: Parameter changes made by communicating are saved on EEPROM. (Default)
3 ON: Ramp Up / Down Software Configured (default)
Ramp Up and Ramp Down are set in the User Console Software.
OFF: Ramp Up / Down Hardware Configured (see below)
Ramp Up and Ramp Down are hardware set.

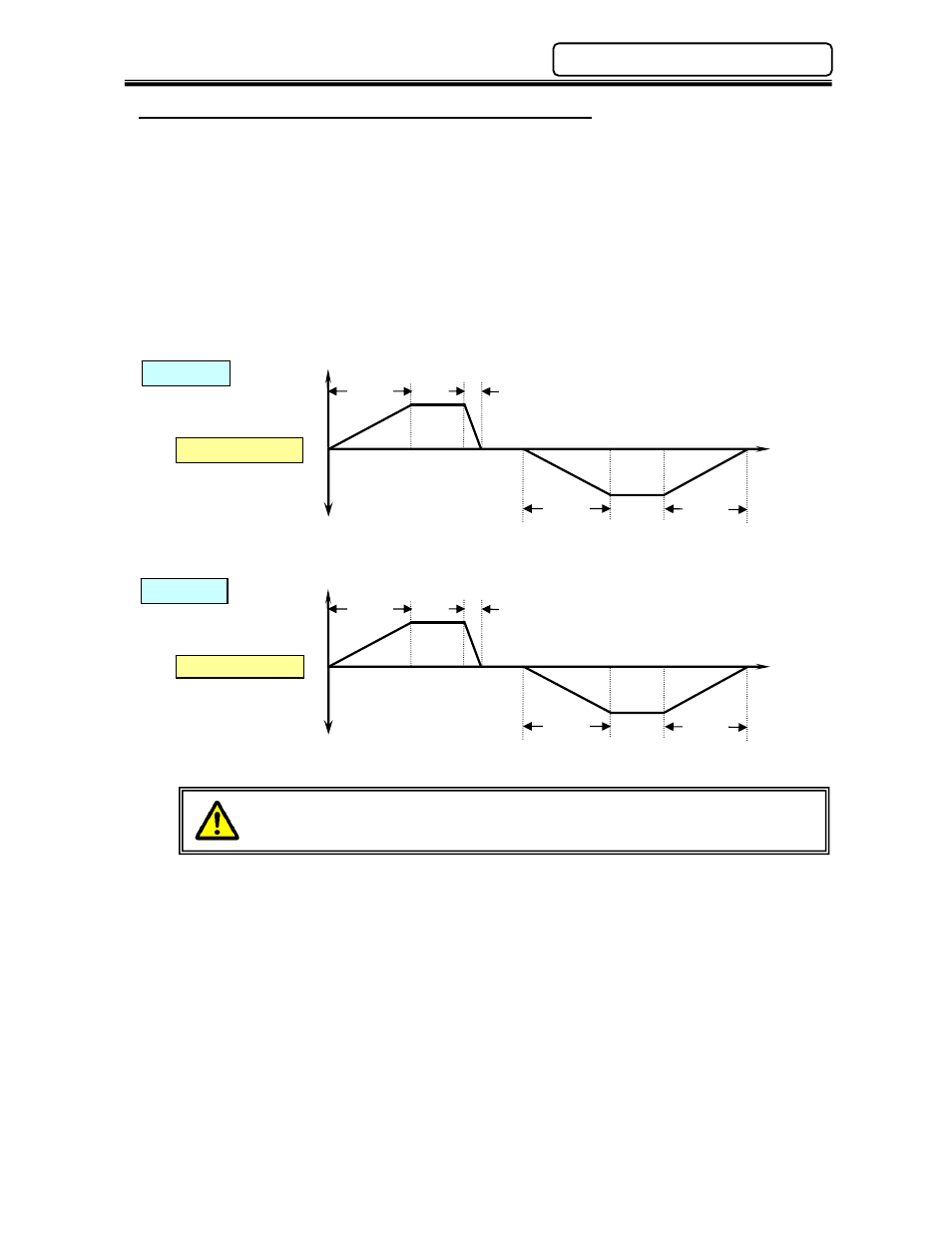

The diagrams below show the effects of the DIP switch 3 setting in the OFF position as seen
on an oscilloscope for a DPT-021R1 press (top diagram) and a DPT-201R3 press (bottom
diagram). Both presses were set up to run Distance Control at maximum speed with the
brake disabled (always disengaged).
If not used, set DIP switches number 1 and 2 in the OFF position and DIP
switch number 3 in the ON position.
SAN Unit must be powered off and on again for switch changes to take effect.
Advance
Return
470ms 30ms
470ms 470ms
Advance
Return
488ms 14ms
488ms 456ms
DIP Switch 3 OFF
DIP Switch 3 OFF
DPT-021R1
DPT-201R3
