enFORCE DSP1500 SAN Unit Operation Manual
(Rev. 4) PAGE 4－30
Chapter 4: System Setup and Wiring
4.13 Tool Connections
Tools are connected to the SAN controller using three or four cables. The first cable connects to the
Load Cell Force Transducer preamp. Second is a combination Motor / Resolver Cable. The third
cable connects the position proximity switches for home and advanced position indication. A fourth
cable is for an external brake (maintenance lock) if ordered. Each cable is separated from the Motor /
Resolver cable to reduce the possibility of high voltage noise interference. In multiple press systems,
each cable is labeled with a corresponding press number and should be connected to the
corresponding SAN Controller and Tool.

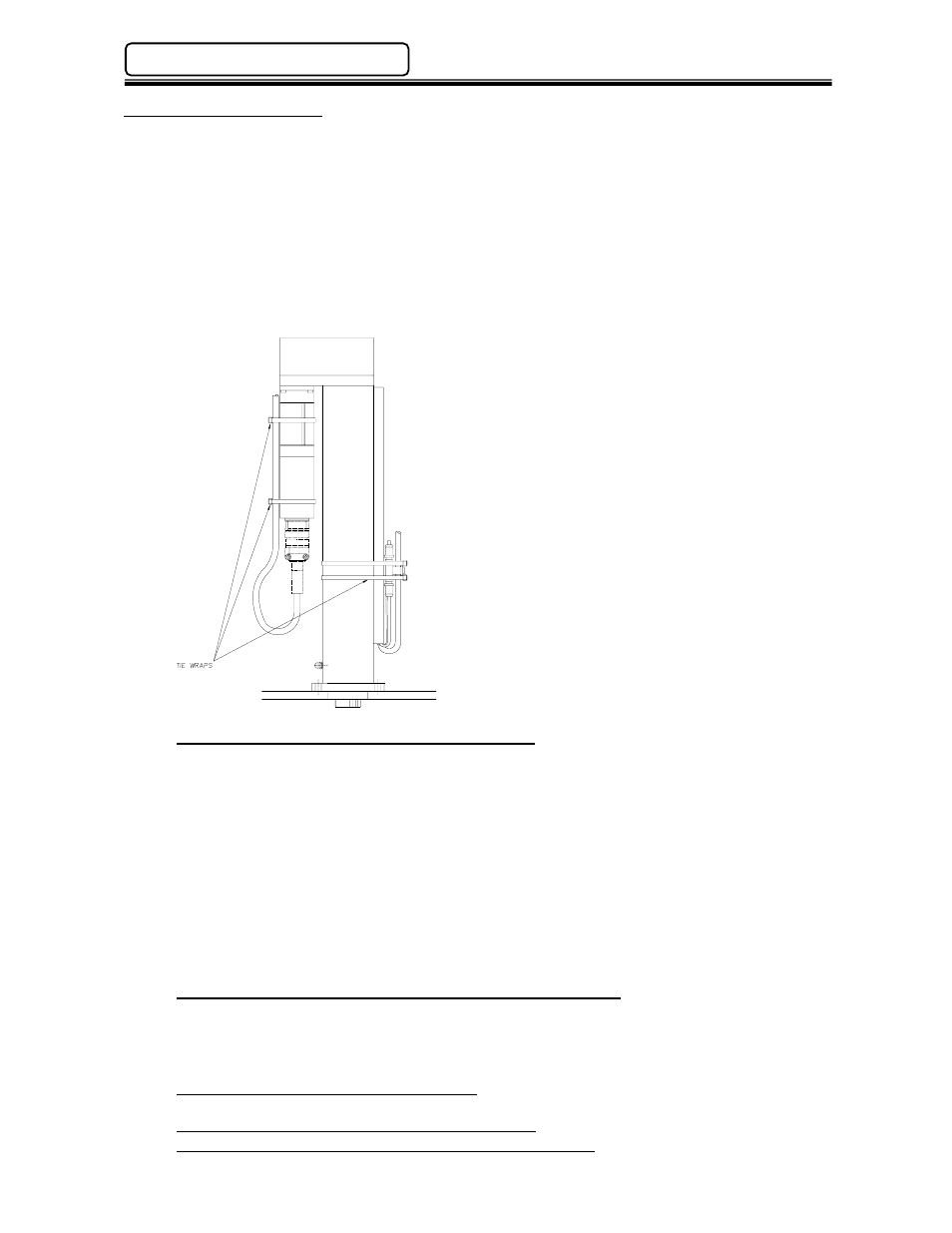

Cables should be secured to the motor similar to the method as shown below. If cable ties are used,
they should be loose enough to allow the cable to move, but yet hold it in place. Cable ties too tight
cause a stress point leading to premature cable failure.
*Recommended Cable Lengths: 75’ or less.
*Maximum Cable Lengths:
100’ (must be free
from Electrical Noise)
MOTOR / RESOLVER CABLE (DPT & DPS Series)
RM1, RM2, RM3 (FIELD): FEC P/N: FEB-1251
RM4 (FIELD): FEC P/N: FEB-1605
RM1, RM2, RM3, RM4 (EXTENSION): FEC P/N: FEB-1283
Nominal OD = .505” Min. Bend Radius = 6.0“
RM5 (MOTOR FIELD): FEC P/N: FEB-1604
RM5 (MOTOR EXTENSION): FEC P/N: FEB-1606
Nominal OD = .415” (x2) Min. Bend Radius for group = 10.0“
RM5 (RESOLVER FIELD): FEC P/N: FEB-1603
RM5 (RESOLVER EXTENSION): FEC P/N: FEB-1283
Nominal OD = .535” Min. Bend Radius = 6.0“
LOAD TRANSDUCER (PRE-AMP) CABLE (DPT & DPS Series)
RM1, RM2, RM3, RM4, RM5 (FIELD): FEC P/N: FEB-1173
RM1, RM2, RM3, RM4, RM5 (EXTENSION): FEC P/N: FEB-1284
Nominal OD = .405” Min. Bend Radius = 4.0“
POSITION SENSOR CABLE (DPT Series): Brad Harrison female 4 pin Micro style cable or
equivalent (See Appendix A).
POSITION SENSOR/BRAKE CABLE (DPS Series):
FEC P/N: FEB-1626
MOTOR/RESOLVER/TRANSDUCER CABLE (DPM Series): . FEC P/N: FEB-1524
