enFORCE
DSP1500 SAN Unit Operation Manual
(Rev 4)
PAGE 7－10
Chapter 7: Maintenance & Inspection

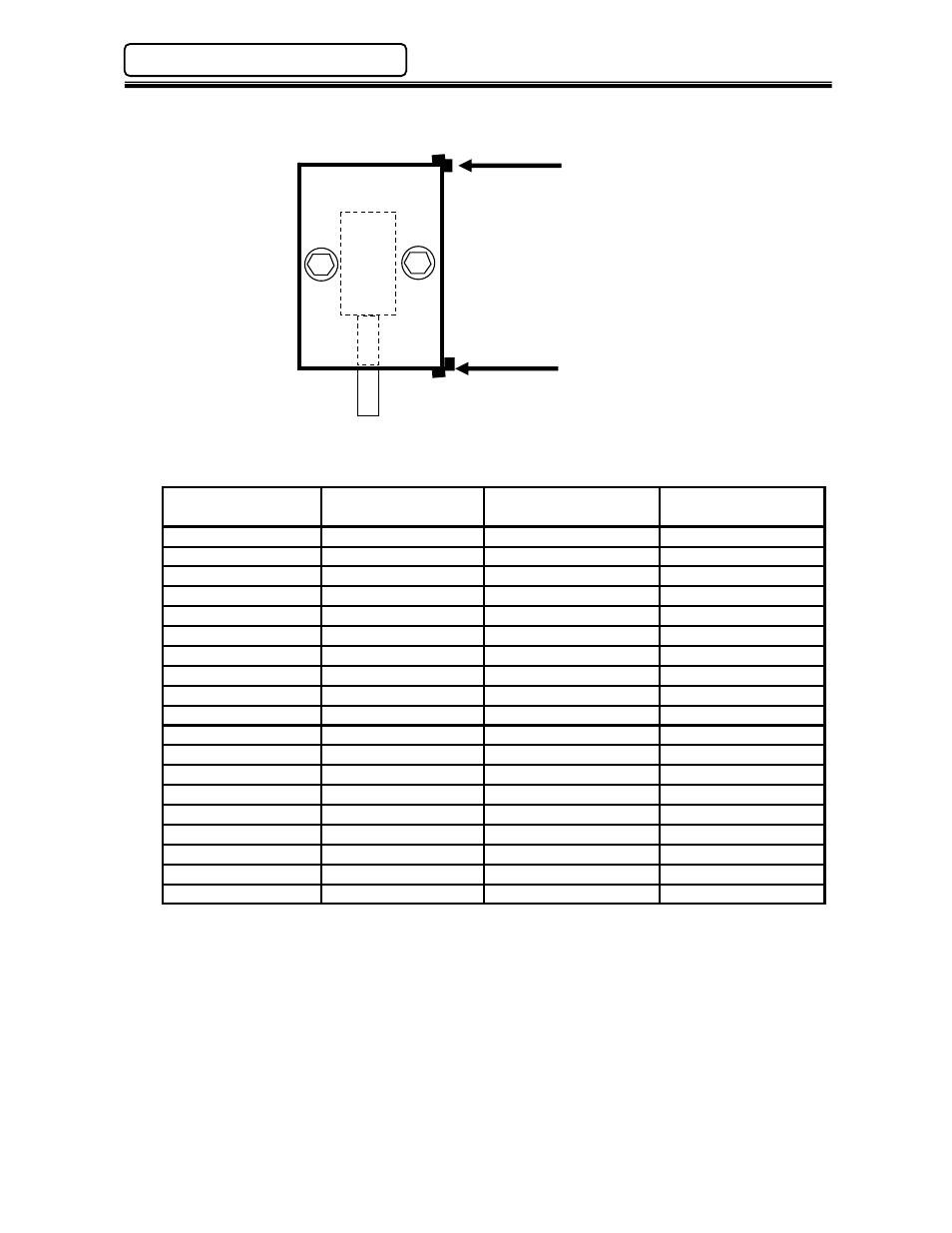

Mark X & Y position for Ref.
Mark X & Y position for Ref.
Press Part Number
If reading is
(0～1000), move
If reading is
(3000～4095), move
Move for every 1000
pulses (approx)
DPT-021R1-**F Down
Up
0.75mm
DPT-021R3-**P Down
Up
0.31mm
DPT-051R2A-**F Up
Down
0.42mm
DPT-051R3-**P Up
Down
0.14mm
DPT-101R3-**F Up
Down
0.42mm
DPT-101R4H-**P Up
Down
0.42mm
DPS-101R3-**F Down
Up
0.33mm
DPT-151R3-**F Up
Down
0.42mm
DPT-151R4H-**P Up
Down
0.36mm
DPT-201R3-**F Up
Down
0.25mm
DPT-201R4H-**P Up
Down
0.25mm
DPT-301R4H-**F Down
Up
1.00mm
DPT-301R4H-**P Up
Down
0.20mm
DPS-301R4H-**F Down
Up
0.63mm
DPT-501R4H-**F Down
Up
0.63mm
DPT-501R5B-**P Up
Down
0.25mm
DPS-501R4H-**F Down
Up
0.50mm
DPT-701R4H-**F Down
Up
0.42mm
DPT-701R5-**P Up
Down 0.18mm
Presses larger than 10 ton cannot be adjusted this way because of the use of the Origin switch.
“Up” is a movement towards the gear housing and “Down” is a movement towards the press ram.
