FEC DSP1500 (SAN3) User Manual
Page 32

enFORCE
DSP1500 SAN Unit Operation Manual
(Rev. 4)
PAGE 3-2
Chapter 3: System Description

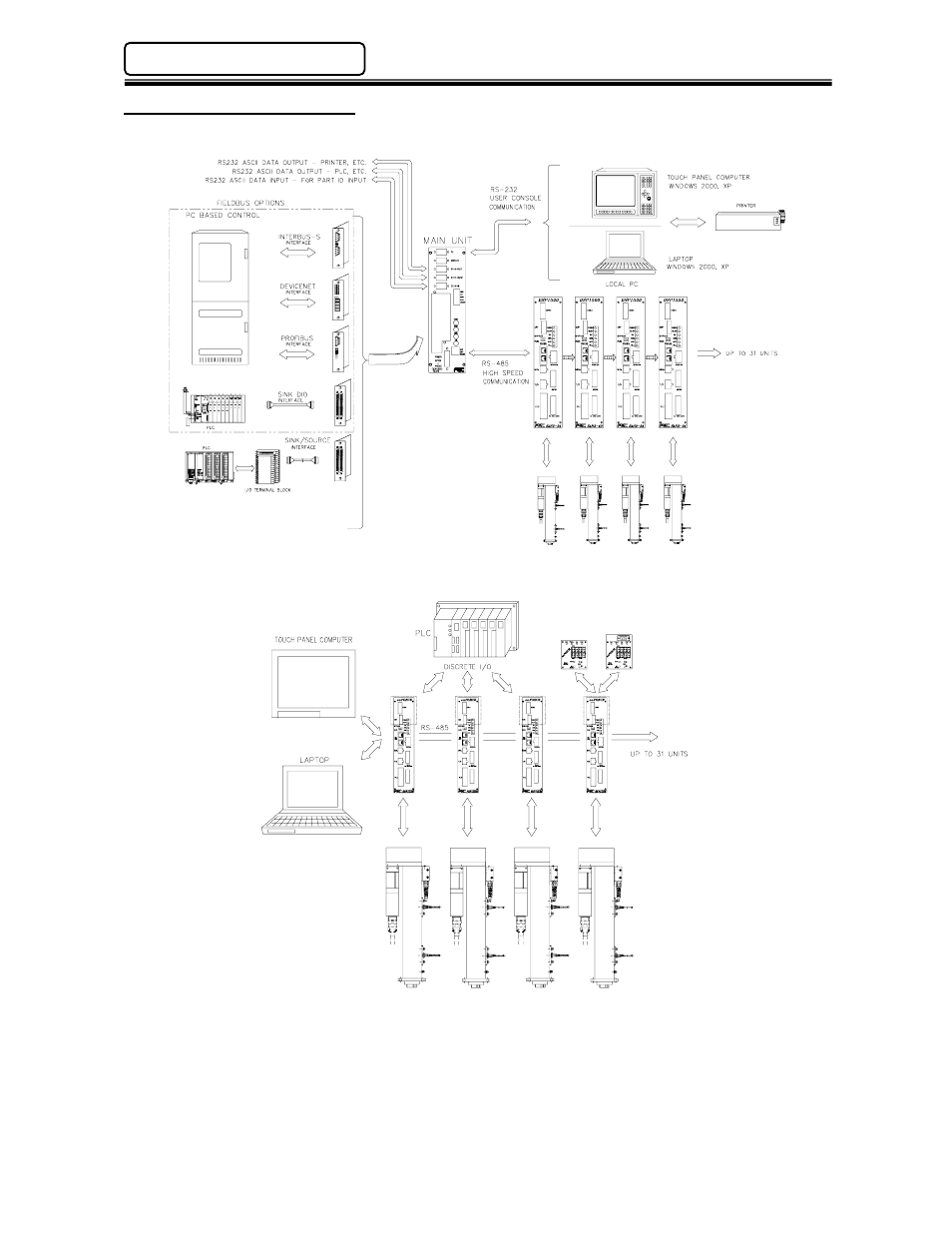

3.1 System Block Diagram
(
Main Unit Configuration)
(
Stand Alone Configuration)
♦
The
enFORCE
system can consist of a single unit or combined in multiple press configuration
controlled by one main controller (Main Unit) using one set of I/O to control the group of presses.
Discrete 24VDC (Sinking) I/O on the SAN unit provides direct communication with the PLC for
individual press control (Stand Alone).
♦
Press programming / monitoring can be accomplished using the “hot-swap” detachable keypad – for
individual controllers, or by a PC running the DSP User Console software package – for
simultaneous upload / download and monitoring of up to 31 SAN controllers via an RS485 series
connection on the front of each SAN unit.
