83
012-05892A AC/DC Electronics Laboratory
®

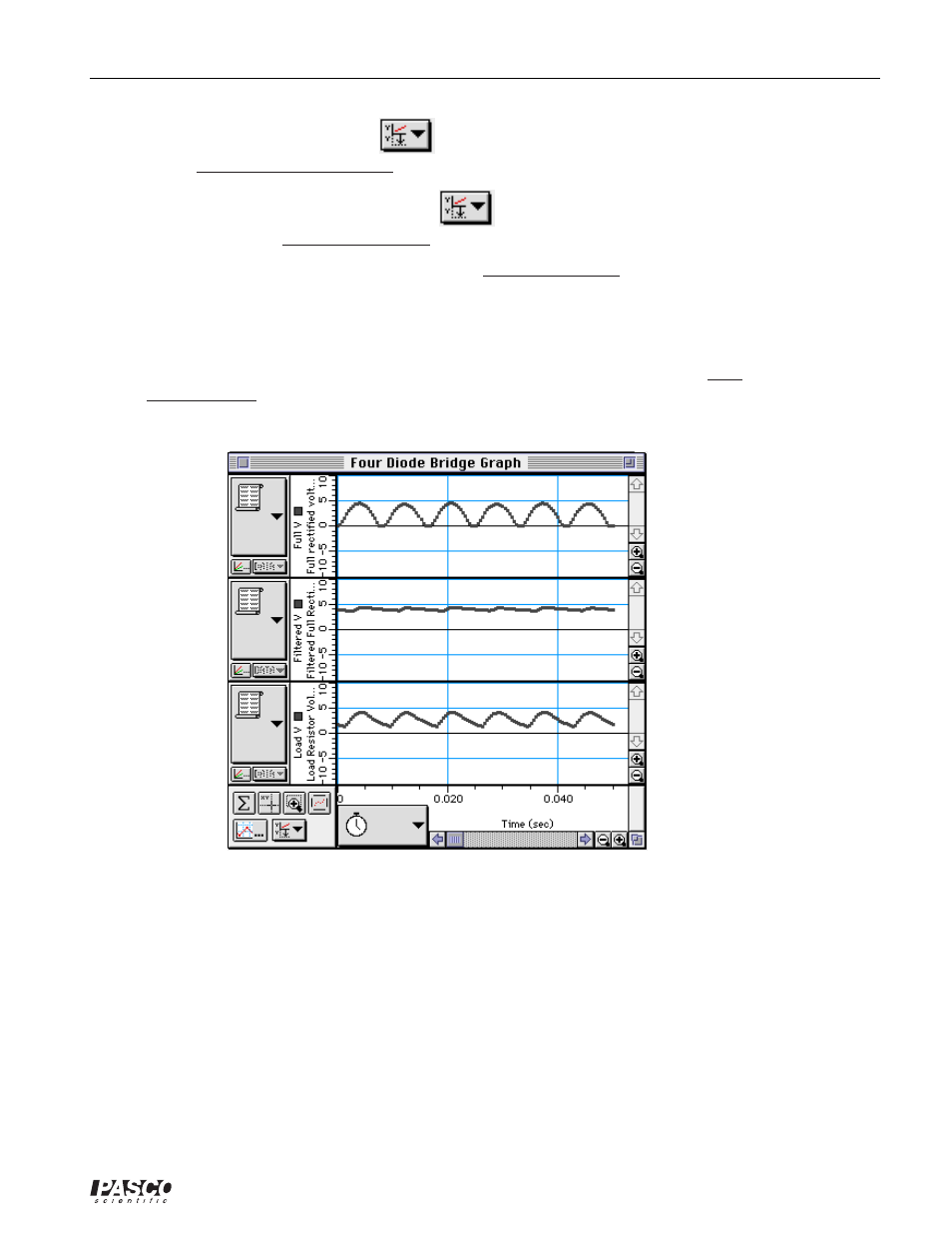

➃ Click the “Add Plot” menu button ( ) at the lower left corner of the Graph. Select “Data
Cache, Filtered Full Rectified voltage” from the “Add Plot” menu.
➄
Click again on the “Add Plot” menu button ( ) at the lower left corner of the Graph.
Select “Data Cache, Load Resistor Voltage” from the “Add Plot” menu.
➅
Click anywhere on the vertical axis of the top plot (Full rectified voltage). The “Enter Plot Y
Scale” window opens.
➆
Type in “10” for the Max and “-10 for the Min, and then click “OK”.
➇ Click anywhere on the vertical axis of the middle plot (Filtered Full Rectified Voltage). Type in
“10” and “-10” for the Max and Min and then click “OK. Repeat for the bottom plot (Load
Resistor Voltage)
• Optional: If a printer is available, select “Print Active Display” from the File menu.
