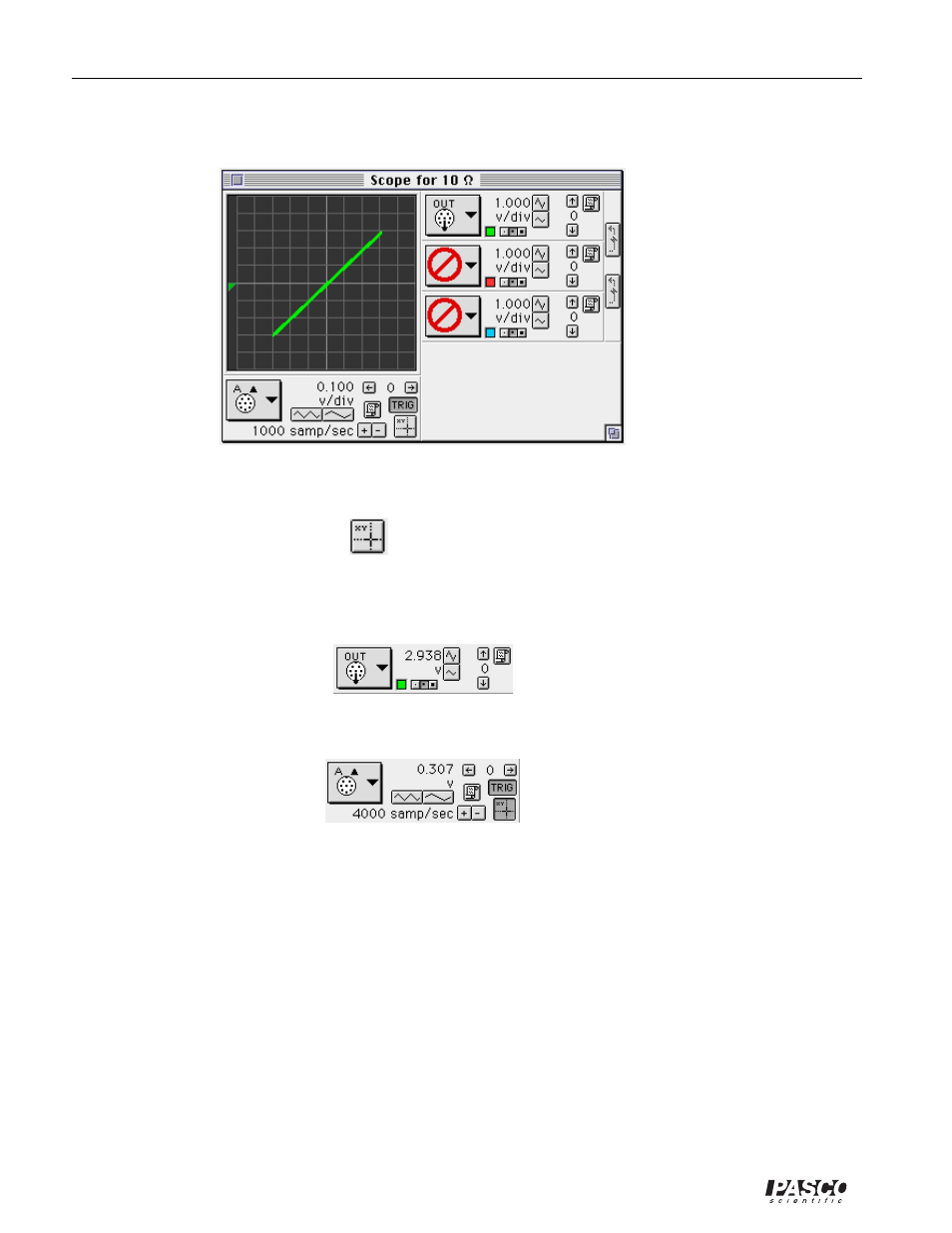

Select the Scope display.
Analyzing the Data – Resistor (10
Ω
)
➀
Click the “Smart Cursor” button (
) in the Scope. The cursor changes to a cross-hair. Move
the cursor into the display area of the Scope.
•
The Y-coordinate of the cursor/cross-hair is shown next to the Vertical Axis Input button:
.
•
The X-coordinate of the cursor/cross-hair is shown next to the Horizontal Axis Input button:
➁
Use the coordinates of a point on the trace on the Scope display to determine the slope of the trace
on the Scope. Record the value of the slope.
