Technical notice – Micromod MOD: 30ML and Modcell Maintenance for 2001N, 2002N, and 1800R User Manual
Page 136
Technical Notice

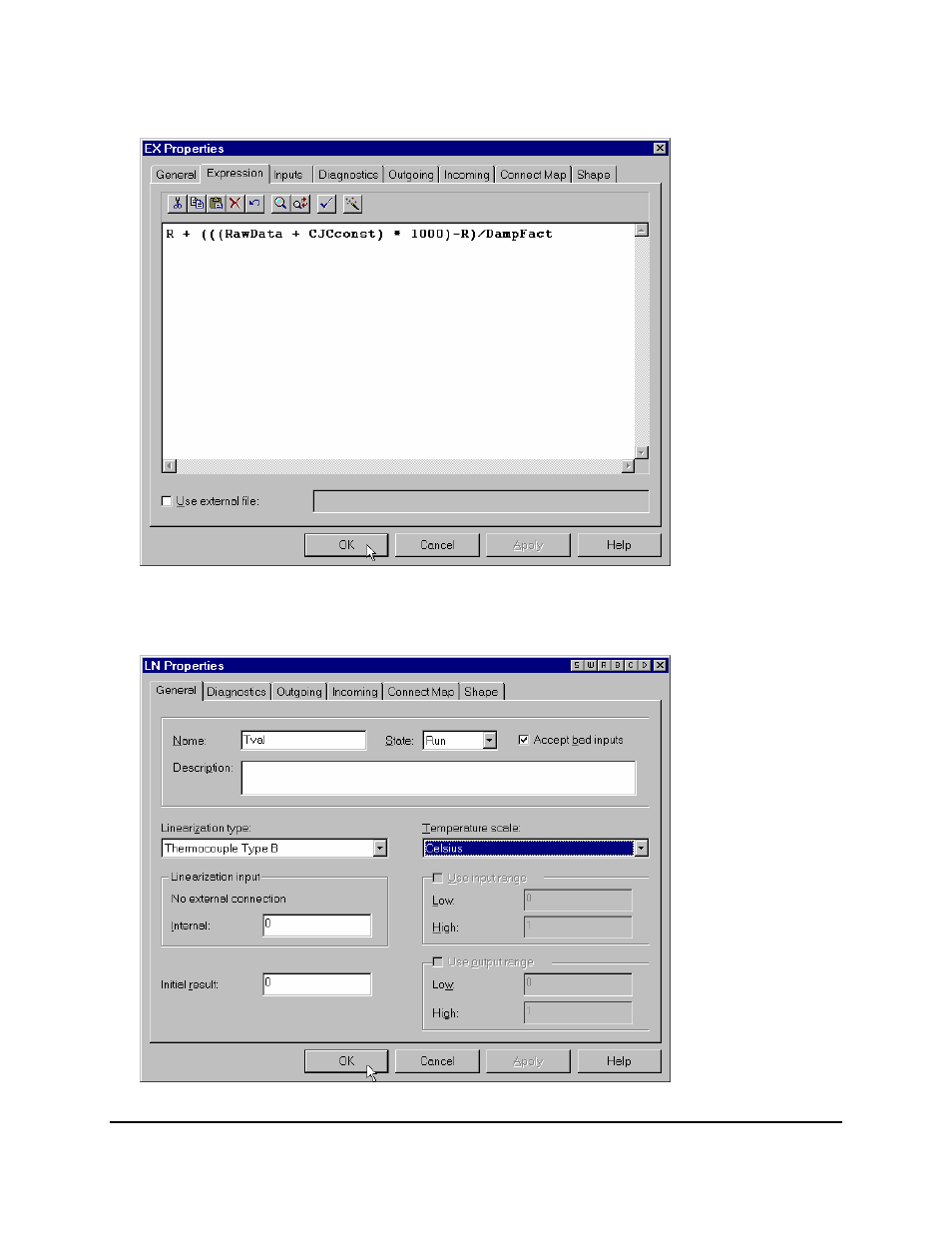

R + (((RawData + CJCconst) * 1000)-R)/DampFact
6. Click on OK.
7. Configure the LIN block with the Linearization type as Thermocouple Type B as shown in the next
figure: Choose the appropriate Temperature scale:
8. Click on OK and connect the blocks as below: (Refer to the figure on the second page).
Topic: MOD 30ML/Modcell
Technote: TNML0501-1
MicroMod Automation, Inc.
Rev. May-2001
B Type TC Problem.Doc
Page 4 of 6
