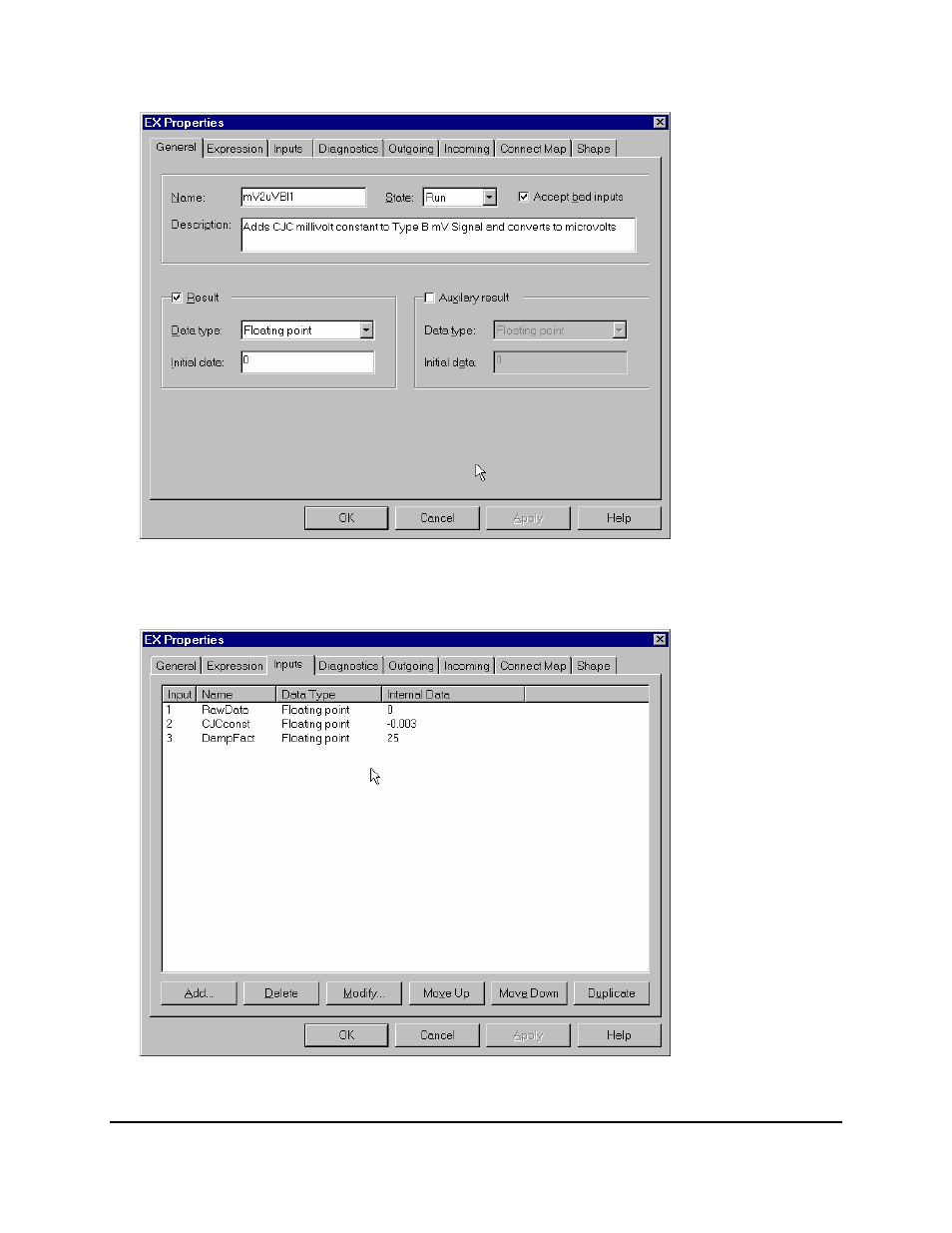

4. Add 3 inputs: RawData (Floating point), CJConst (Floating point with internal data value of –0.003)
and Dampfact (Floating point with internal data value of 25) in the Inputs tab of this EX block as
shown in the next figure:
5. Configure the Expression tab of this EX block by typing the expression:
Topic: MOD 30ML/Modcell
Technote: TNML0501-1
MicroMod Automation, Inc.
Rev. May-2001
B Type TC Problem.Doc
Page 3 of 6
