6 .2 Adjustment system
1
2

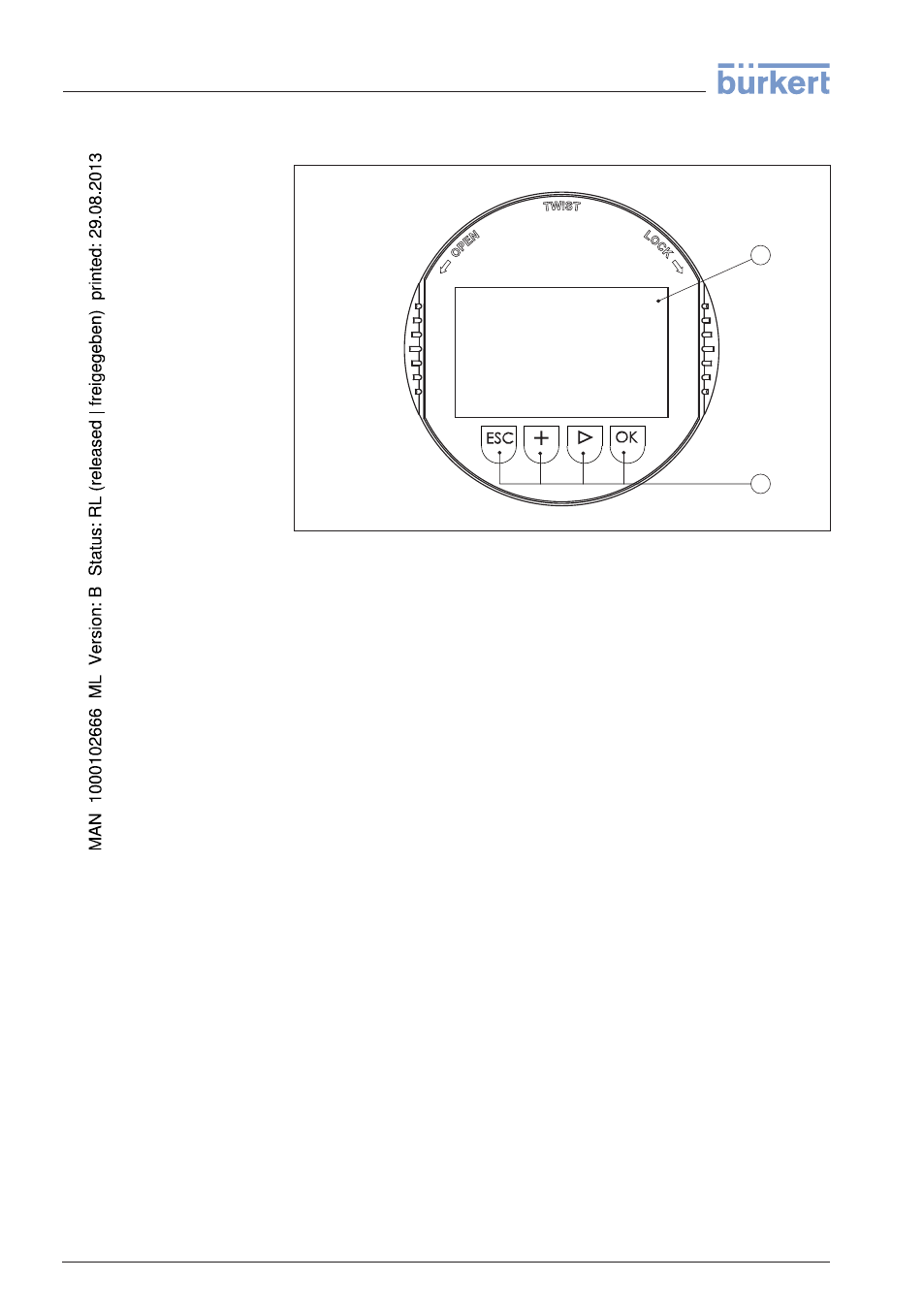

Fig. 25: Indicating and adjustment elements
1 LC display
2 Adjustment keys
l [OK] key:
-
Move to the menu overview
-
Confirm selected menu
-
Edit parameter
-
Save value
l [->] key:
-
Presentation change measured value
-
Select list entry
-
Select editing position
l [+] key:
-
Change value of the parameter
l [ESC] key:
-
interrupt input
-
Return to higher-ranking menu
The sensor is adjusted via the four keys of the indicating and
adjustment module. The LC display indicates the individual menu
items. The functions of the individual keys are shown in the above
illustration. Approx. 10 minutes after the last pressing of a key, an
automatic reset to measured value indication is triggered. Any values
not confirmed with [OK] will not be saved.
