When using a surge pipe in a vessel, influences from vessel
installations and turbulences can be excluded. Under these prereq-
uisites, the measurement of products with low dielectric values (ε
r
value ≥ 1.6) is possible. In very adhesive products, measurement in a
surge pipe is not recommended.
1
2
3
100%
4
5
8
6
7
0%
9

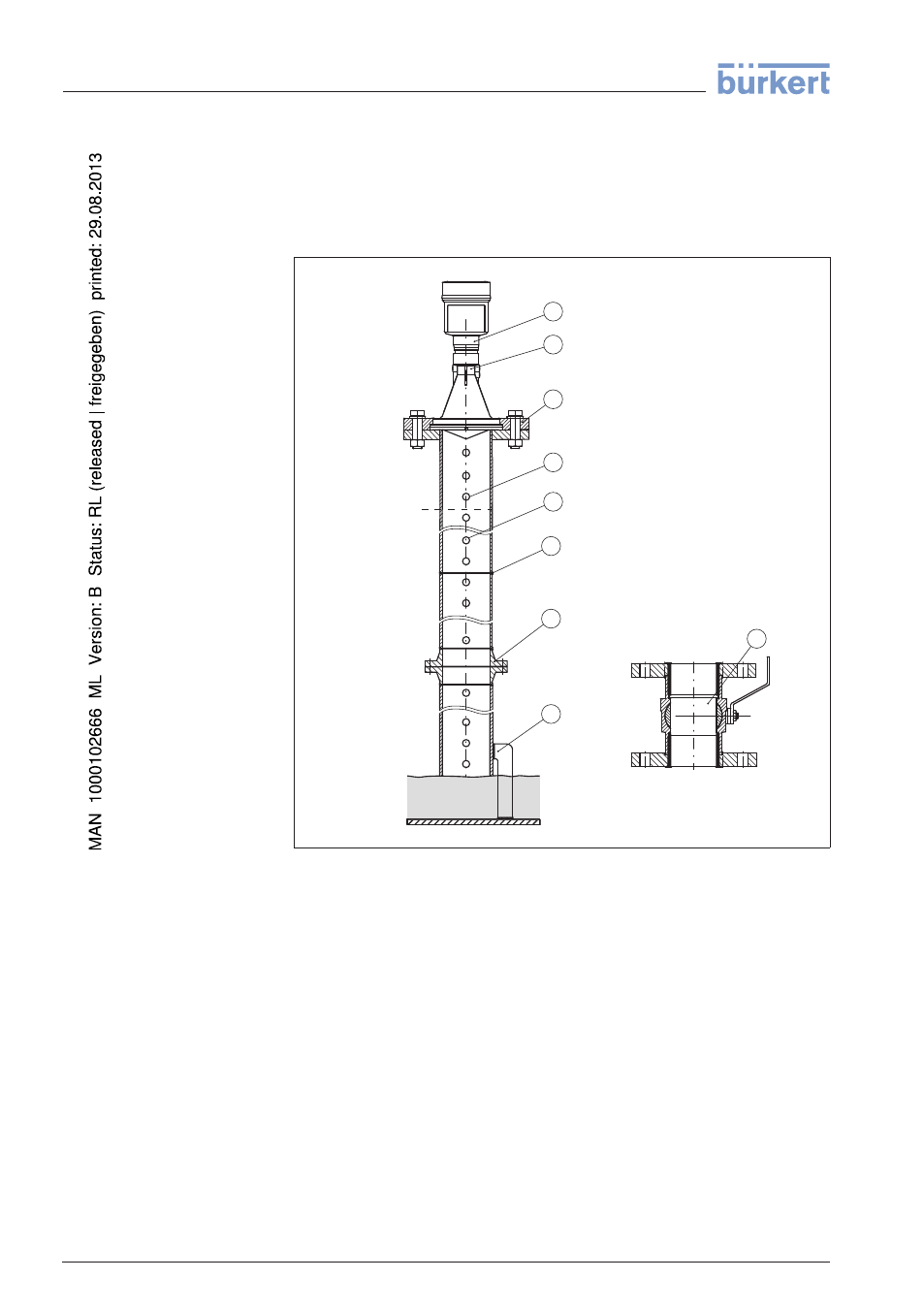

Fig. 18: Configuration surge pipe
1 Radar sensor
2 Marking of the polarisation direction
3 Thread or flange on the instrument
4 Vent hole
5 Holes
6 Weld joint
7 Welding neck flange
8 Ball valve with complete opening
9 Fastening of the surge pipe
Instructions for orientation:
l Note marking of the polarisation plane on the sensor
l With threaded fitting, the marking is on the hexagon, with flange
connection between the two flange holes
l All holes in the surge pipe must be in one plane with this marking
Instructions for the measurement:
Measurement in a surge
pipe
20 LEVEL TRANSMITTER 8136 • 4 … 20 mA/HART - two-wire
4 Mounting
