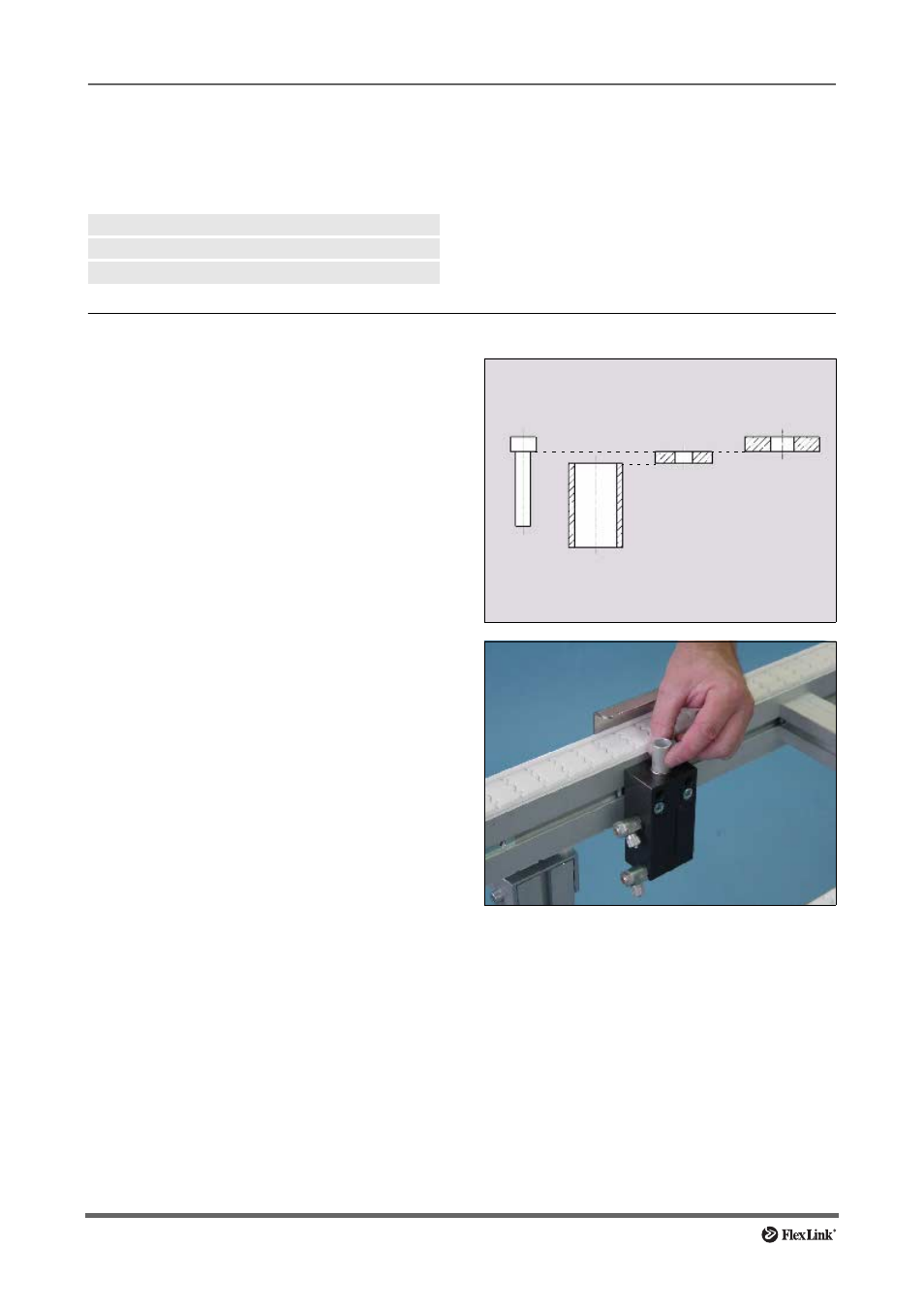

Mounting guide pins to locating, lift-and-rotate and lift-and-locate station
Introduction
Valid for all locating stations.
Tools
Instruction
Allen key 4 mm
Soft faced hammer
Box wrench
10 mm
1 You need the following equipment to change
guide pins.
A: Screw MC6S M5×25
B: Pipe Ш18Ч2Ч28
C: Washer Ш19 Ш6 t=4
D: Washer Ш25 Ш8 t=5
2 Place the piece of pipe (B) over the pin.
D C B A
