Replace motor on XT transfer unit XTPT M2

Introduction

Valid for XT transfer unit type M2.

Tools

Instruction

Allen key

3 mm

Allen key

5 mm

Box wrench

10 mm

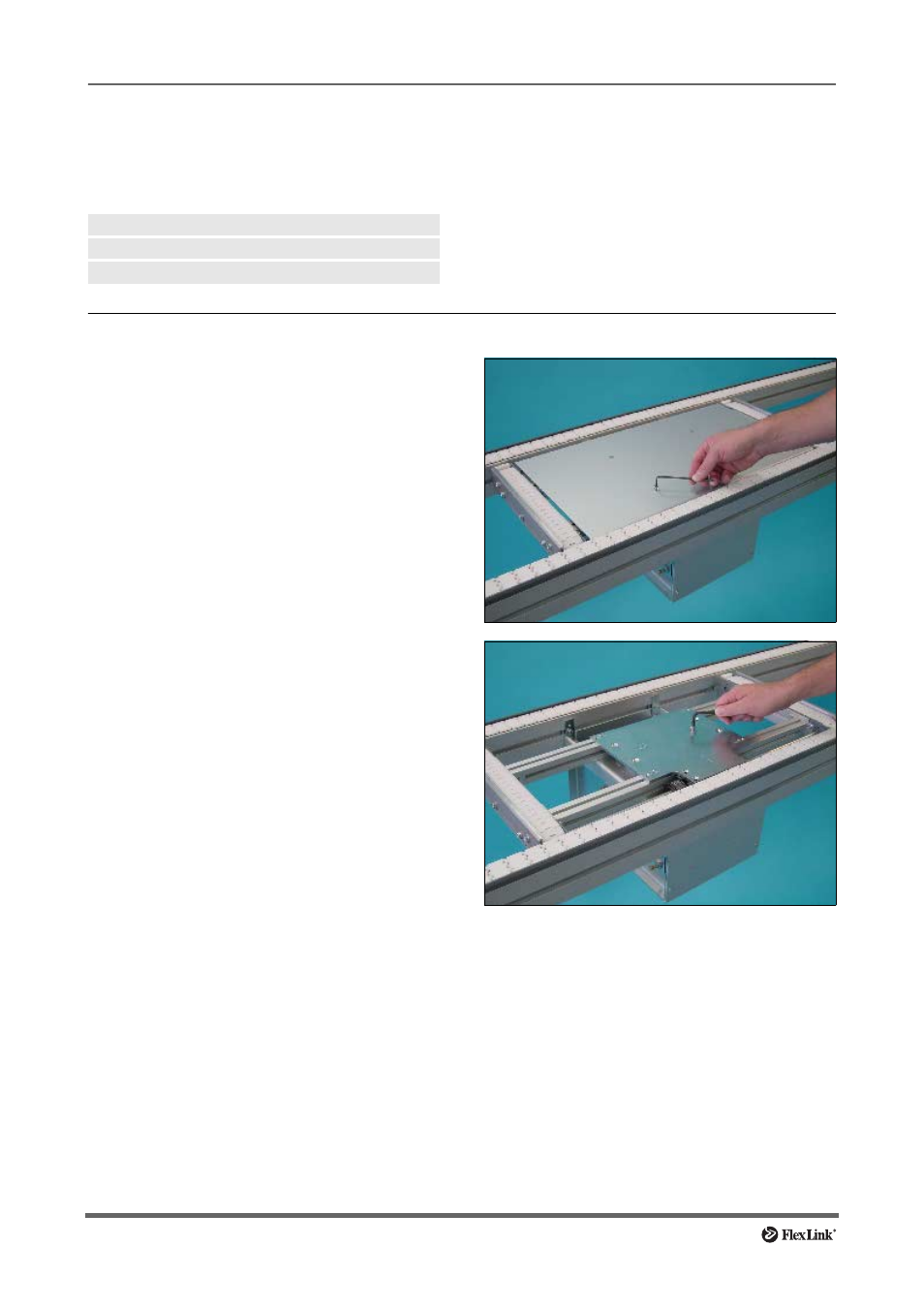

1 Remove the screws (4×) on the transfer unit

cover. Use the 3 mm Allen key.
Remove the cover.

2 Remove the screws (2×) on the transfer unit

bracket. Use the 5 mm Allen key.
