Replacement of slide rail
Introduction
This instruction is primarily intended for conveyor XT,
but can also be used as a guideline for the XT
Compact conveyor.
Tools
Instruction
Allen key 4 mm
Drilling machine
Drill
3,2 mm
Screwdriver
File
Drill fixture tool
3923584
Countersink tool
Rivet tool
3923563
Cutting pliers
Marker
1 Remove the chain according to one of following
instructions:
“Replace chain on XT conveyor module – End
drive unit” on page 16
“Replace chain on XT conveyor module –
Catenary drive unit” on page 21
“Replace chain on XT Compact conveyor
module” on page 35

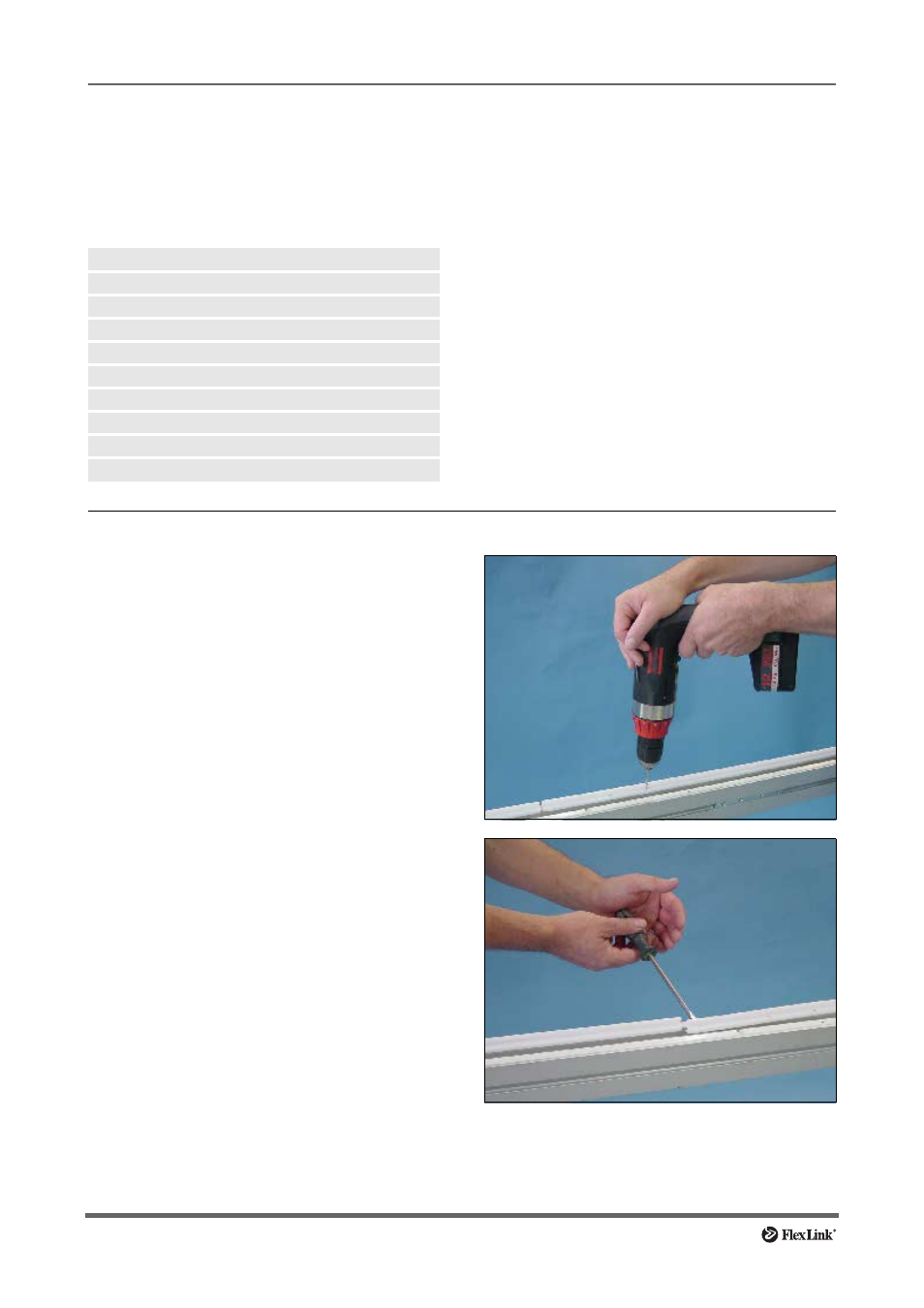

Use the 3,2 mm drill to remove old rivets.
2 Remove the slide rail by positioning the screw-
driver at the side of the slide rail and carefully
hammering on the top of the handle with your
hand.
