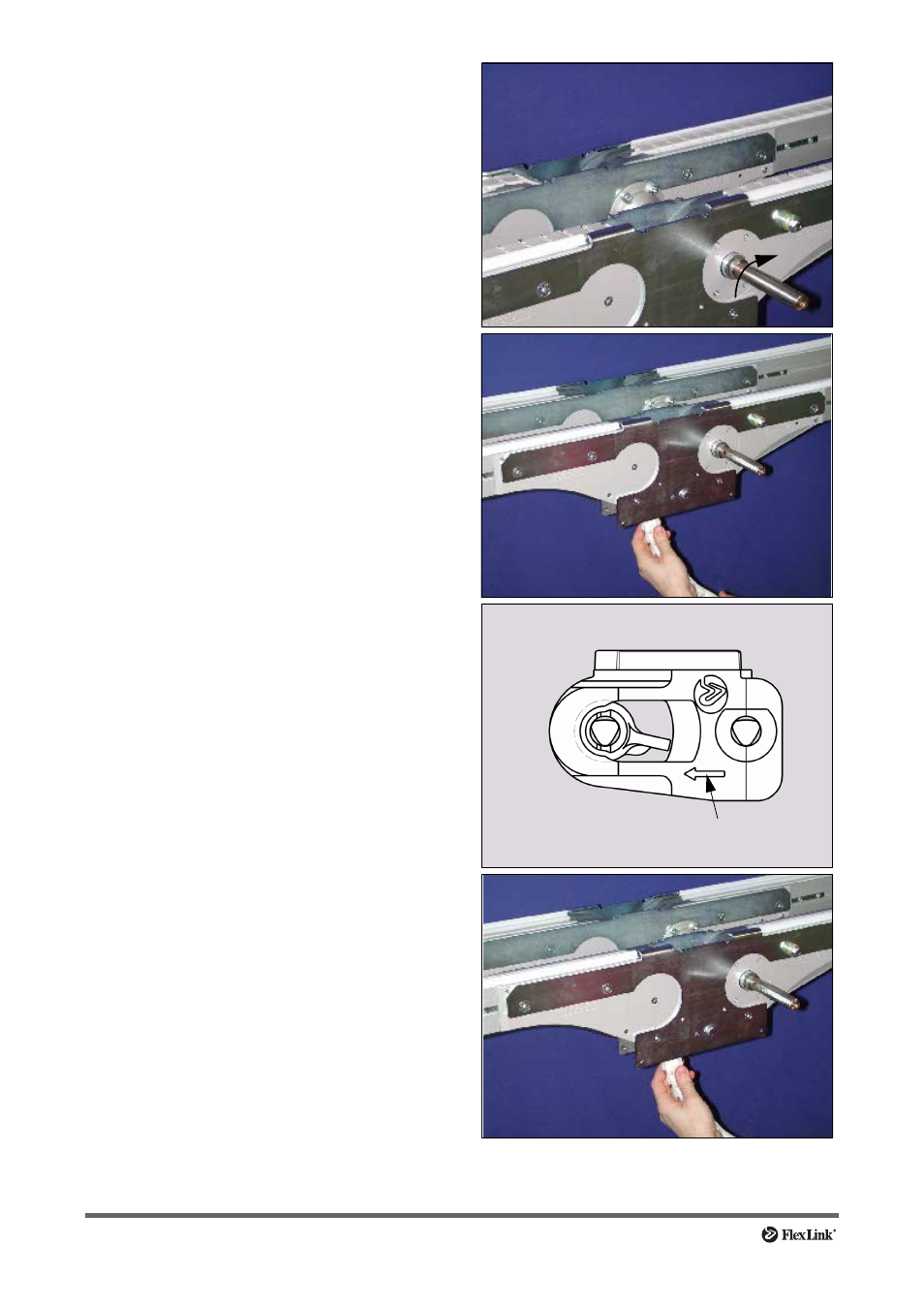

8 Feed the chain out through the drive wheel by

turning the drive shaft until the chain is loose.
CAUTION! Make sure that the short loose end

of the chain runs smoothly through the plastic

guides. Risk for the plastic guides to brake.

9 Pull out the chain from below the idler end unit.

10 Unpack the new chain. Note that the chain can

only be mounted in its direction of travel

(marked with an arrow).

11 Insert the chain from below, with the nose for-

ward (see previous step).
CAUTION! Make sure that you start feeding the

chain from the idler end unit towards the drive

unit or it might lead to chain damage.

Direction of travel
