Page 35: Instruction, Replace chain on xt compact conveyor

2002-12-11

Replace chain on XT Compact conveyor module

Introduction

Valid for XT Compact conveyor only.

Tools

Instruction

Screwdriver
Allen key

3 mm

Allen key

2,5 mm

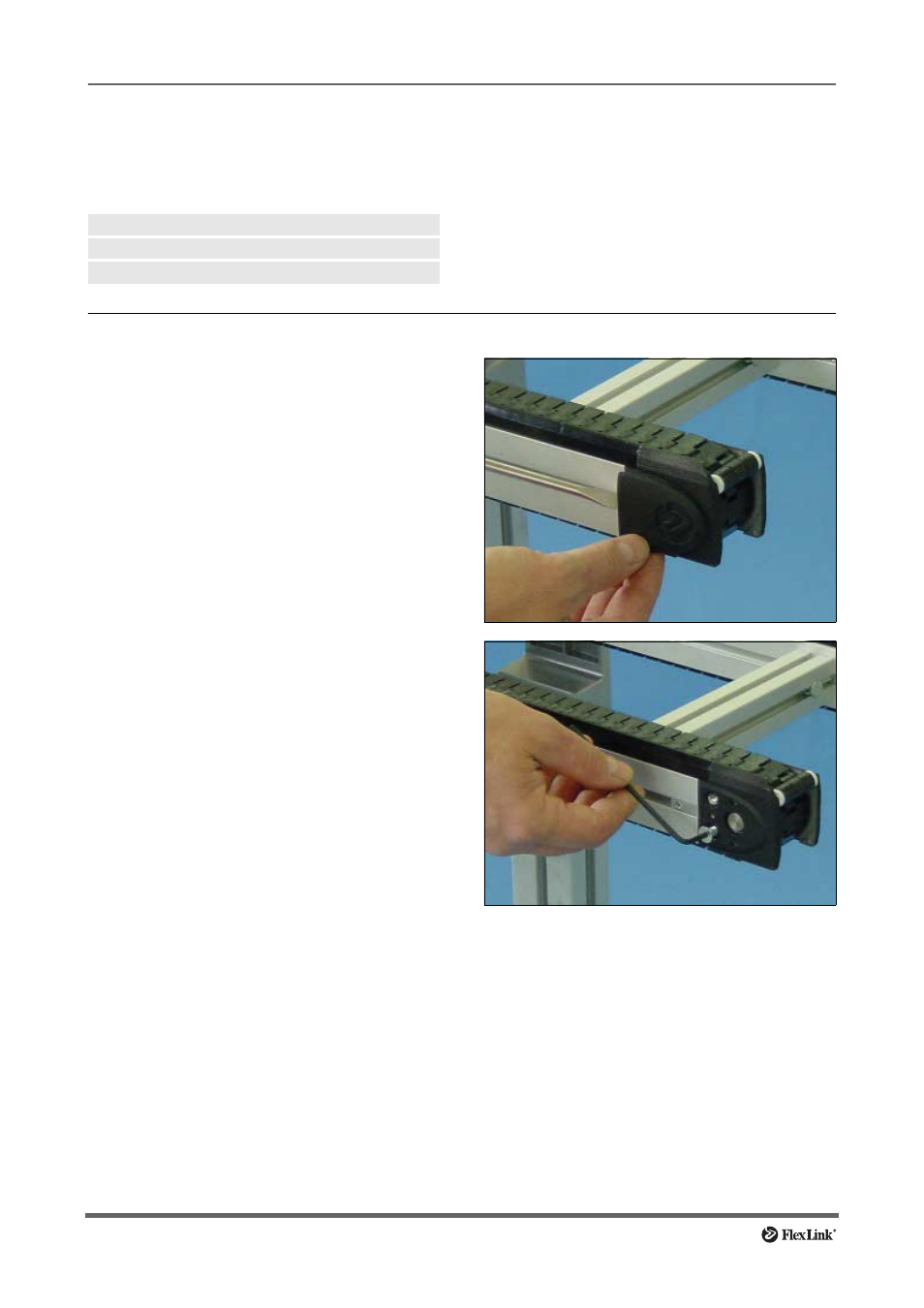

1 Use a screwdriver to remove the plastic cover on

the idler end.

1 Use the 3 mm Allen key to loosen the screws on

the idler end.
