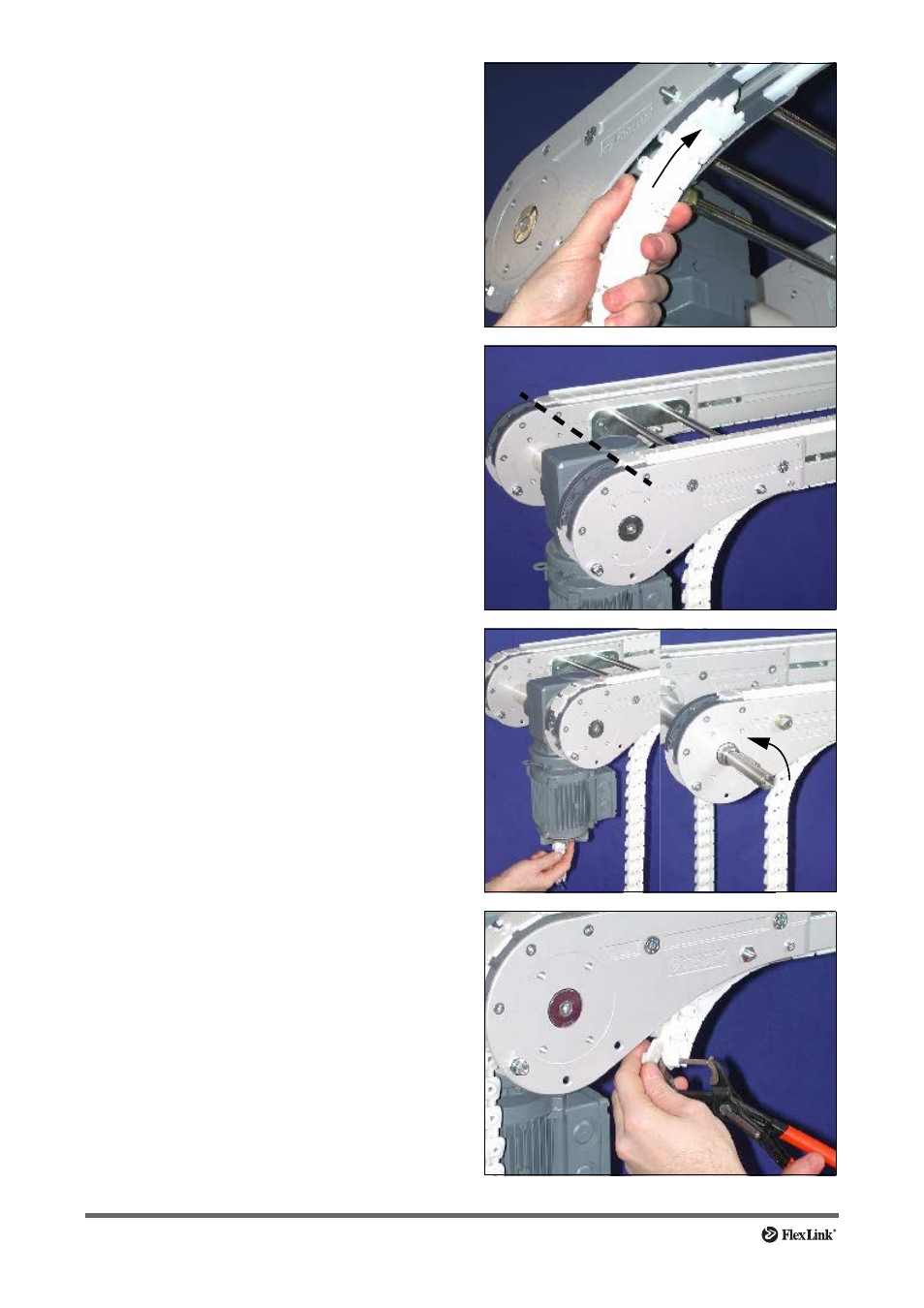

7 Insert the chain from below, with the nose for-
ward (see previous step).
8 Feed the chain into the conveyor until it reaches
the drive wheel at the driving end.
Repeat steps 7 and 8 for the second chain.
9 Centre mounted motor (A) - Remove the fan
cover. Use the 7 mm box wrench. Feed the
chains to the drive wheel and turn the fan until
the chains are hanging a bit below the conveyor.
Side mounted motor (B) - Feed the chains to
the drive wheel and turn the drive shaft until the
chains are hanging a bit below the conveyor.
CAUTION! Make sure that the chain enters the
drive wheel correctly. Risk for the plastic guides
to break.
10 Use a pair of slip joint pliers to insert the pin half-
way into the chain link.
B A
