2002-12-11 30

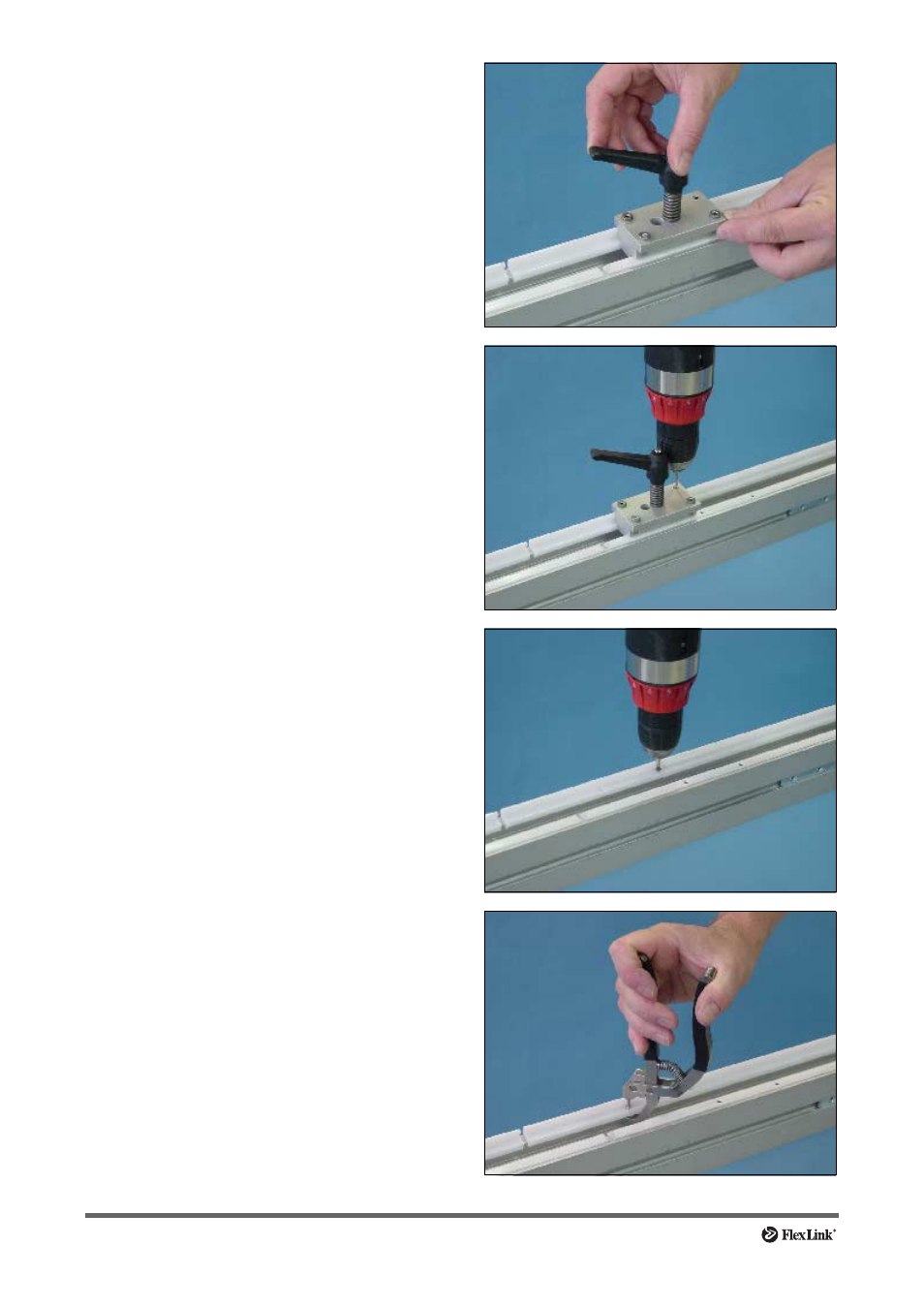

7 Use drill fixture 3923584 to drill the rivet holes.
Place it so the new hole is about 20 mm behind
the mark for the old hole, then turn the handle to
lock it in position (never use the old rivet holes).
8 Drill new holes for the rivets using a 3,2 mm drill.
9 Countersink the holes to ensure that the top of
the rivet is below the surface of the slide rail.
10 Fit the rivets in the holes and press them
together with the rivet tool.
