2002-12-11 33

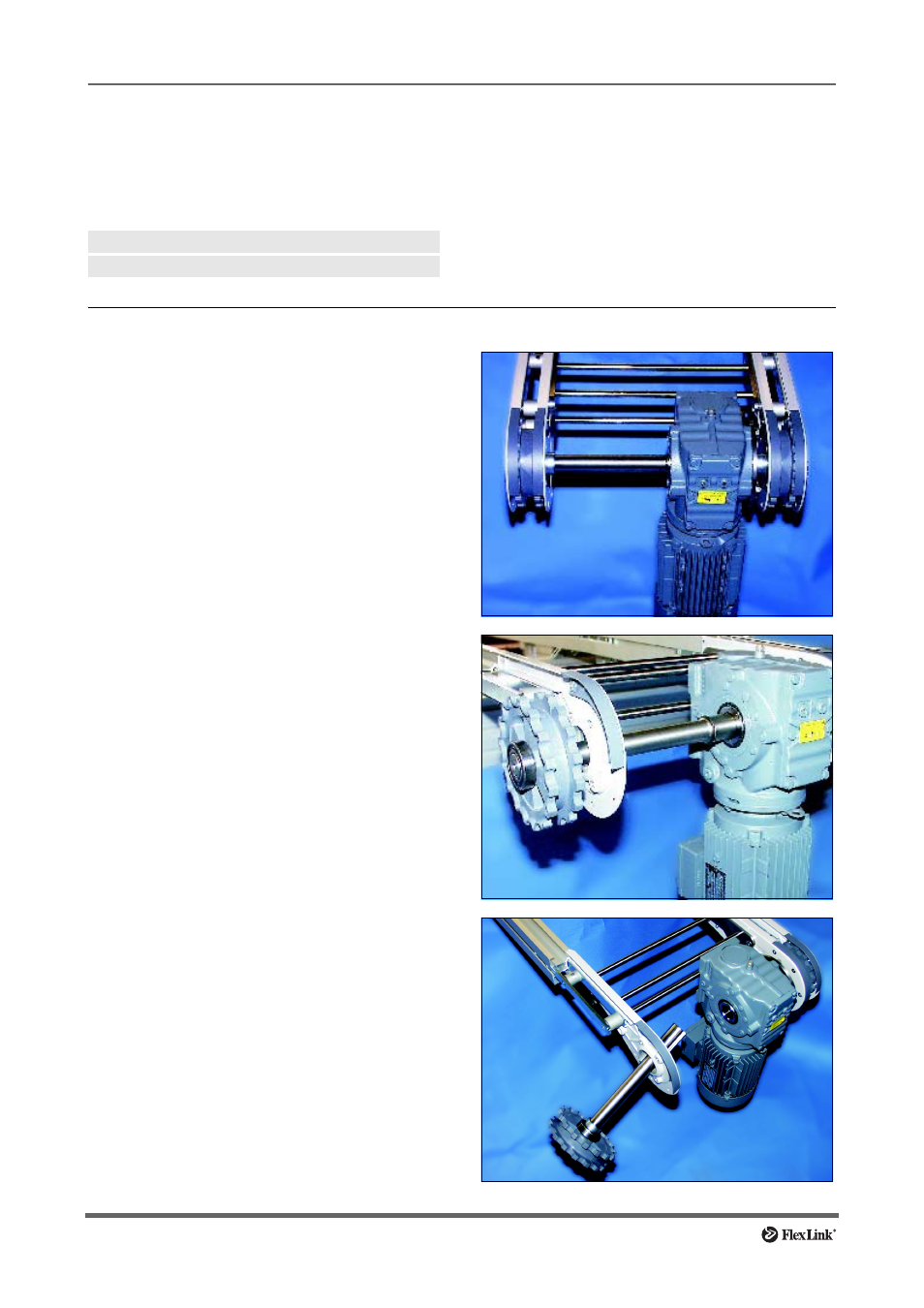

Replace motor on XT conveyor drive unit – Centre mounted
Introduction
Valid for motor types M and HM (centre mounted
motor).
Tools
Instruction
Allen key 5 mm
Retaining ring plier
1 Disconnect all electrical wiring from the motor.
Release the chain from the drive wheel on the
lain furthest away from the motor, see “Replace
chain on XT conveyor module – End drive unit”
on page 16.
2 Loosen the screws (2×M8) on the side plate fur-
thest away from the motor. Use the 5 mm Allen
key. Remove the side plate.
3 Remove the retaining ring from the shaft. Use
the retaining ring plier. Detach shaft with drive
wheel and bearings from the motor. Pull the
motor in the shaft direction until it is loose.
