Replace motor on XT transfer unit XTPT M1

Introduction

Valid for XT transfer unit type M1.

Tools

Instruction

Phillips screwdriver
Allen key

5 mm

Box wrench

10 mm

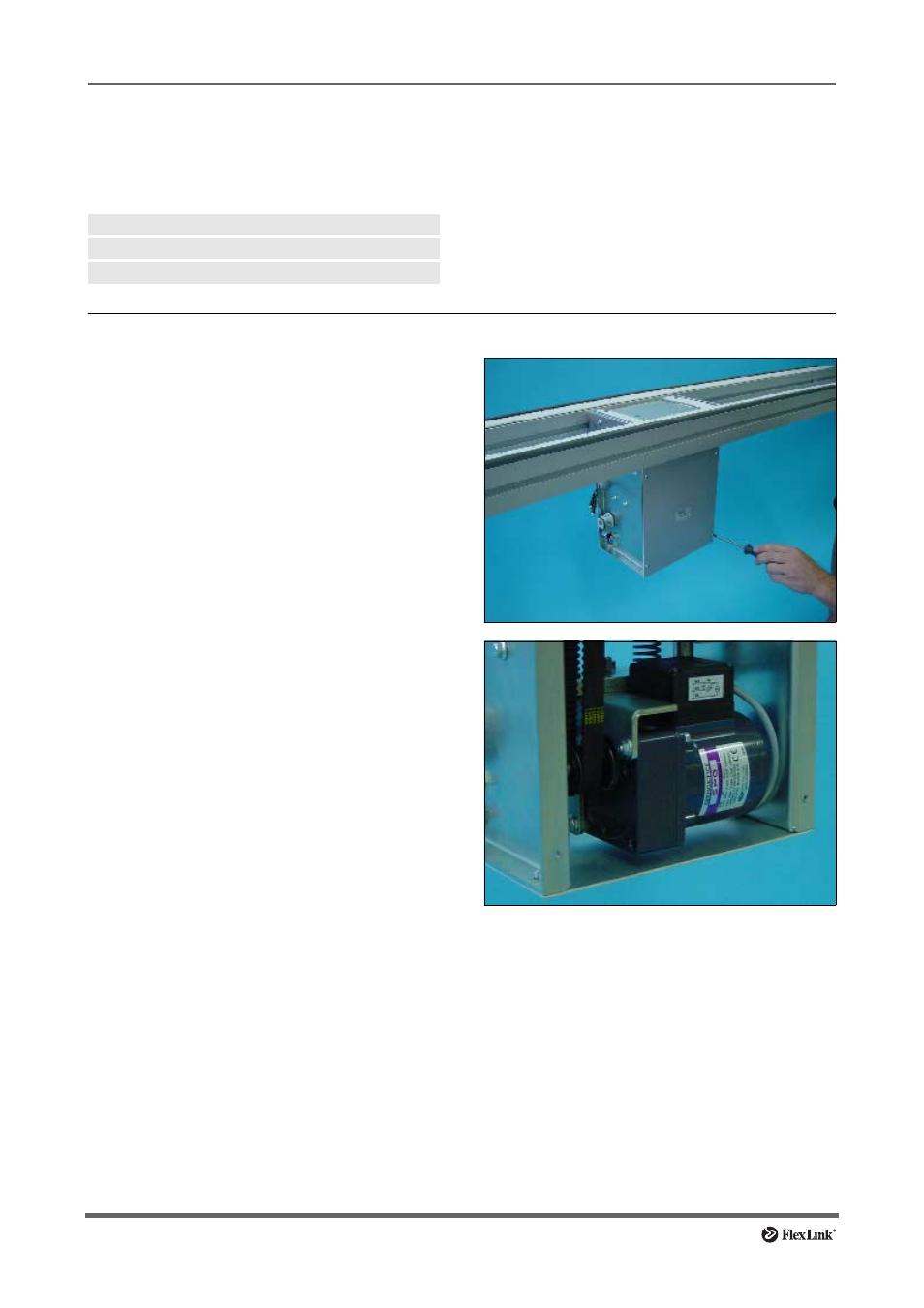

1 Remove the screws (8×) on the transfer unit

covers on both sides. Use the Phillips

screwdriver. Remove the covers.

2 Remove the screws (2x) holding the motor, use

the 5 mm Allen key and the 10 mm box wrench.
Replace the old motor and fasten the screws

using the 5 mm Allen key and the 10 mm box

wrench. Make sure to hook the driving belt on the

new motor.
Fit the covers. Fit and tighten the screws (8×) on

the transfer unit covers on both sides. Use the

Phillips screwdriver.
