Replace driving belt on XT transfer unit XTPT M1

Introduction

Valid for XT transfer unit type M1.

Tools

Instruction

Phillips screwdriver
Allen key

3 mm

Allen key

5 mm

Box wrench

10 mm

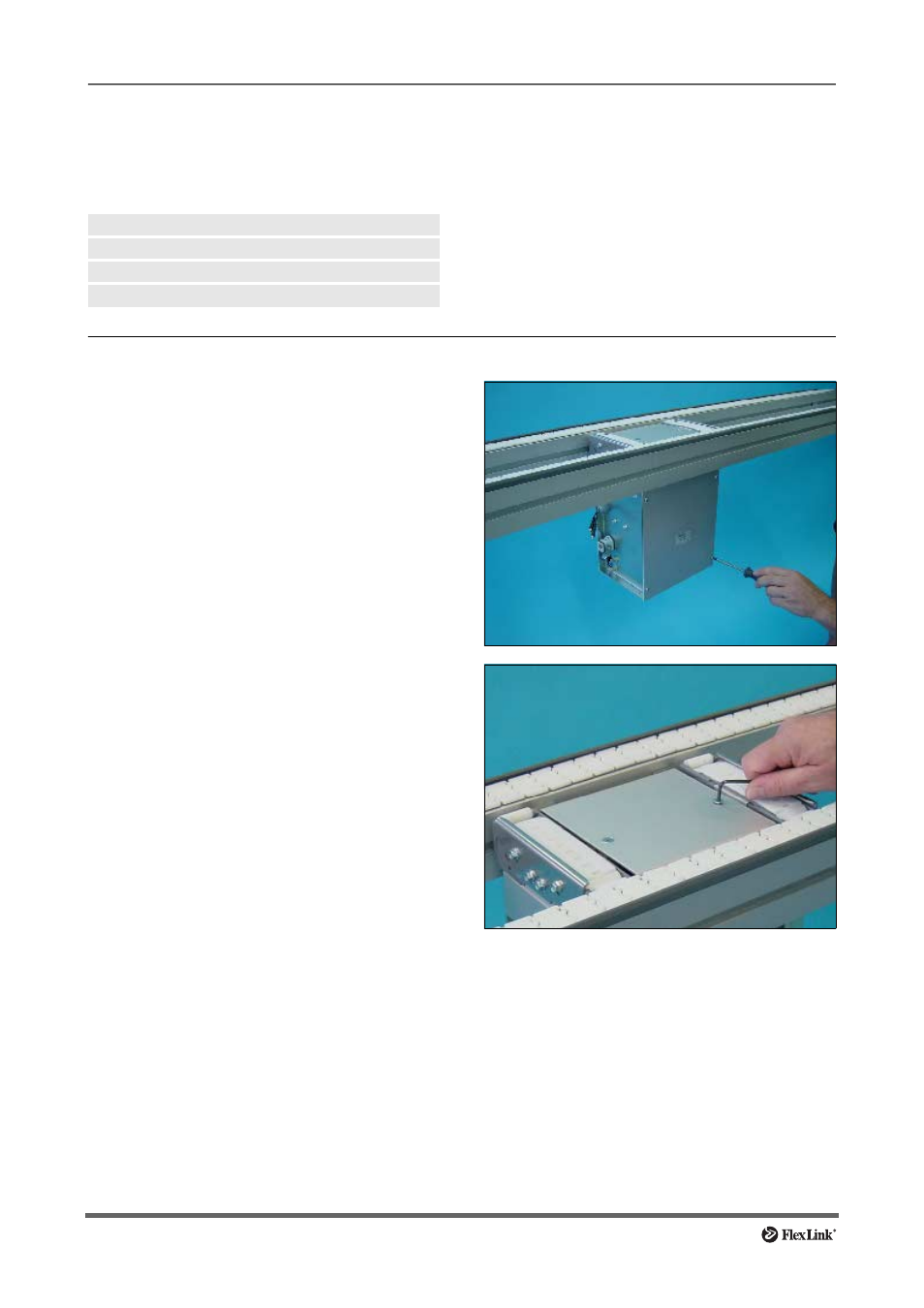

1 Remove the screws (8x) on the transfer unit

covers on both sides. Use the Phillips

screwdriver. Remove the covers.

2 Loosen the screws holding the transfer unit

cover, use the 3 mm Allen key. Remove the

transfer unit cover.
