2002-12-11
11

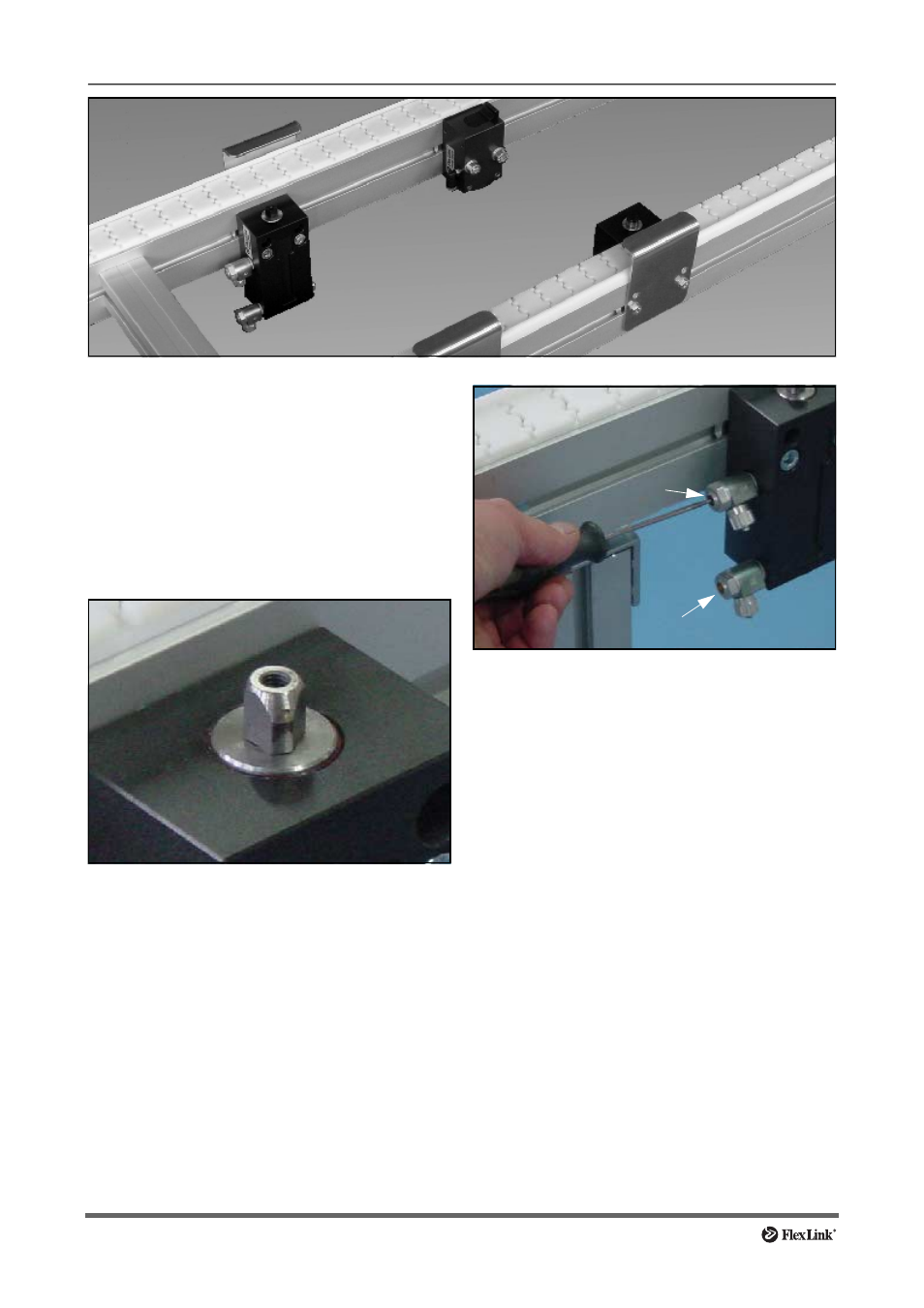

Locating station XTPX P11 A
Recommended inspection interval
Inspection is recommended every 1500 operating
hours or every 3rd month depending on which case
that occurs first.
Check wear of guide pins
1 Examine the guide pins (A).
2 If the guide pins have to be replaced see “Mount-
ing guide pins to locating, lift-and-rotate and lift-
and-locate station” on page 59
Check docking of pallet
1 Run the unit and check that the pins enter the
pallet bushings in a smooth way without jam and
noise.
2 If the locating units have to be adjusted due to jam,
see separate publication "Assembly manual – XT
modules".
Check speed of lift and lowering movement
1 Run the unit with loaded pallets.
2 If necessary, adjust the throttle valves (B) on the
cylinder units.
3 Check that the two individual guide pins are syn-
chronised and enter/leave the pallet at the same
time.
Other observations
Use “Trouble shooting” on page 62
Spare parts
To find correct spare parts, see separate Spare Parts
documentation.
A
B: Lift
B: Lowering
