2002-12-11 19

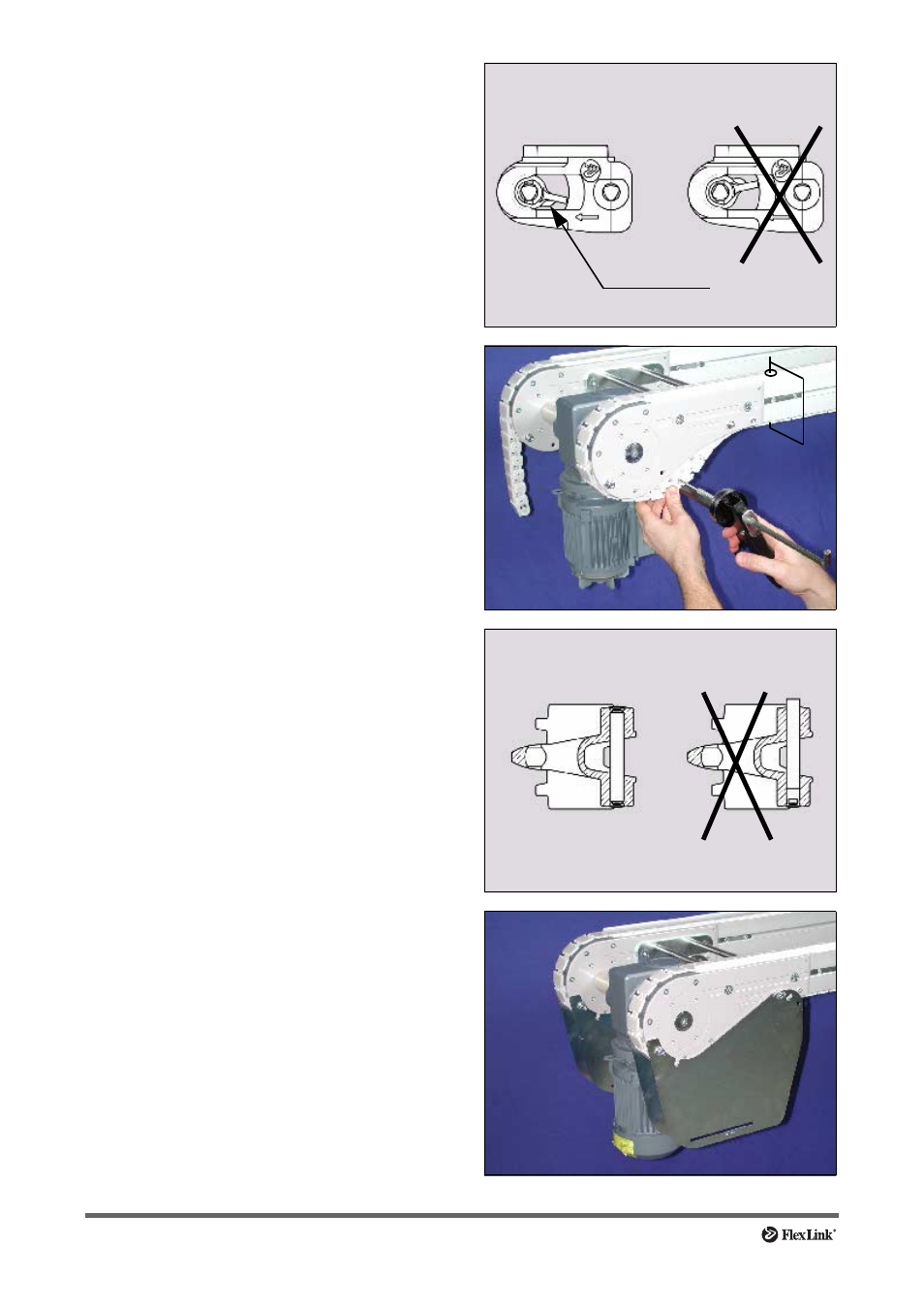

11 Join the chain endings. Make sure that the joint
ball has not been removed and re-assembled
upside down.
CAUTION! Wrongly positioned joint ball will lead
to chain damage when running the chain.
12 Press the pin through the chain. Use the pin
insertion tool.
TIP! Use a clamp (A) to keep the chain stretched.
13 Make sure that the pin snaps into the correct
position (centred).
14 Centre mounted motor - Fit the fan cover to the
motor and tighten the screws. Use the 7 mm box
wrench. Fit the slack protection plates and
tighten the nuts. Use the 10 mm box wrench.
Side mounted motor - Fit the slack protection
plates and tighten the nuts. Use the 10 mm box
wrench.
Check rib down
A
