Page 22

2002-12-11

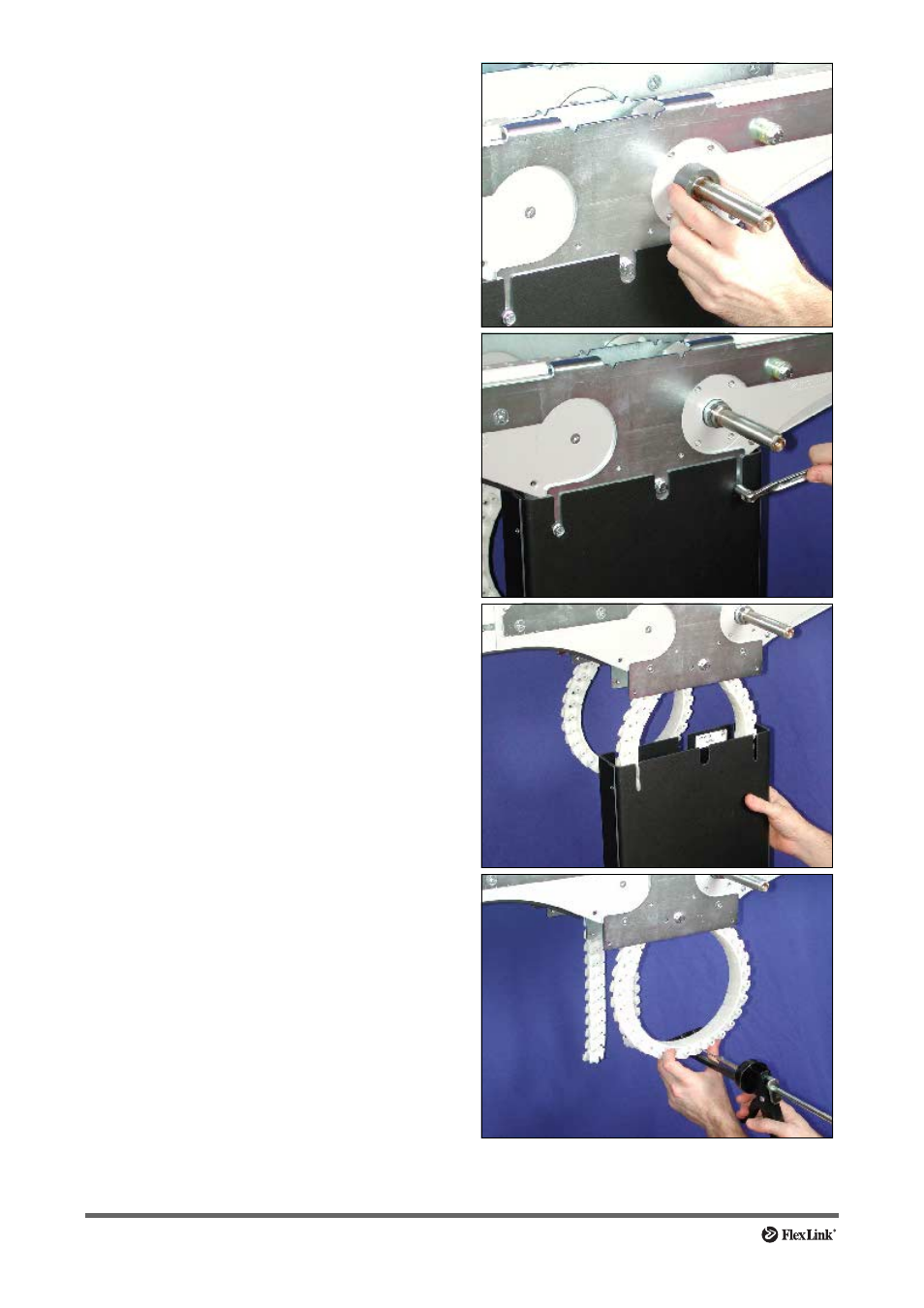

4 Remove the plastic sleeve from the drive shaft.

5 Detach the screws (4×M6) holding the slack

protection. Use the 10 mm box wrench.

6 Remove the slack protection cover.

7 Remove a pin (holding the chain together) by

pressing it through the chain. Use the pin inser-

tion tool.
