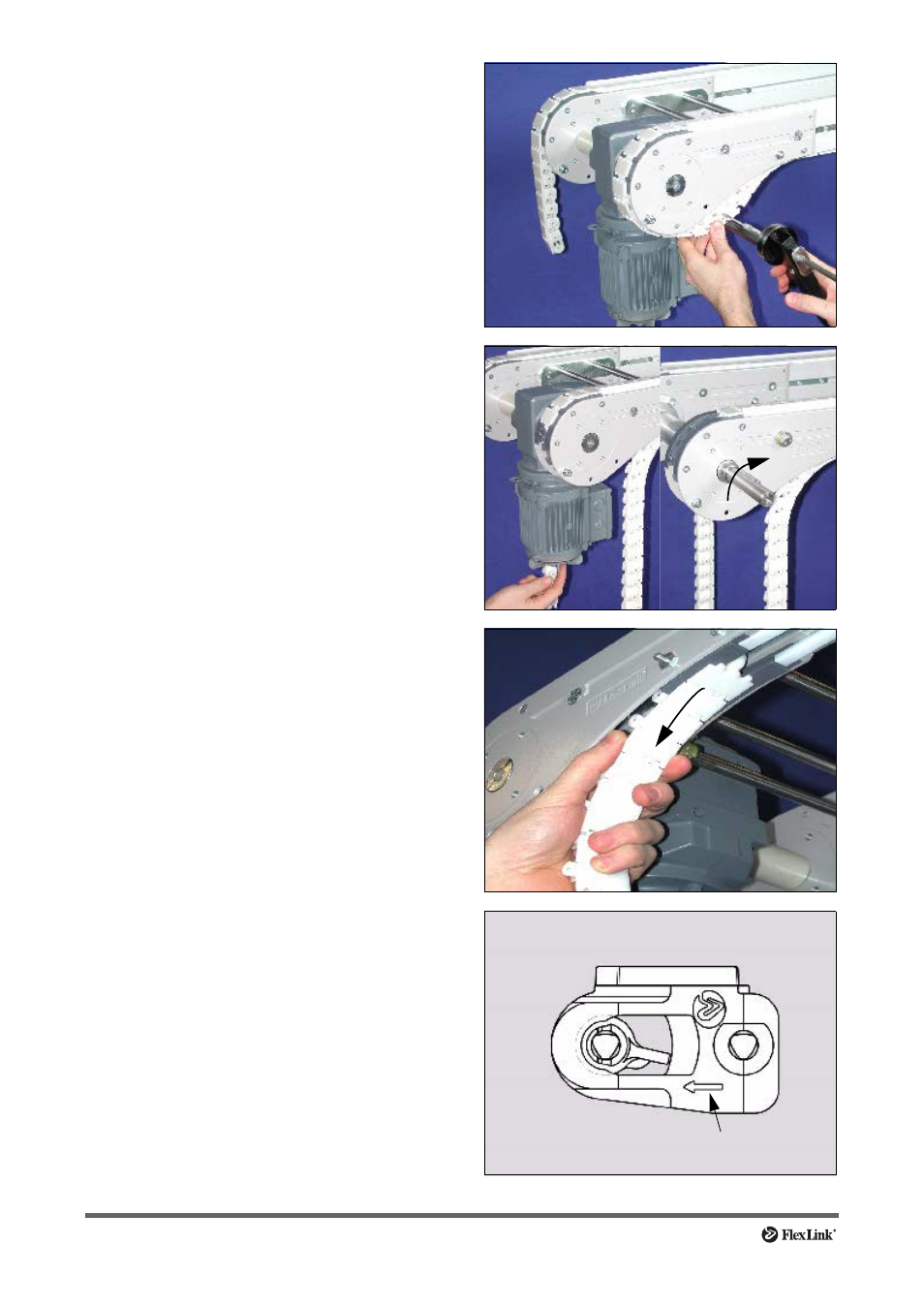

3 Remove a pin (that holds the chain together) in
the driving end by pressing it through the chain.
Use the pin insertion tool.
4 Centre mounted motor (A) - Remove the fan
cover. Use the 7 mm box wrench. Feed the chain
out through the drive wheel and turn the fan until
the chain is loose.
Side mounted motor (B) - Feed the chain out
through the drive wheel and turn the drive shaft
until the chain is loose.
CAUTION! Make sure that the short loose end of
the chain runs smoothly through the plastic
guides. Risk for the plastic guides to brake.
5 Pull out the chain from below.
6 Unpack the new chain. Note that the chain can
only be mounted in its direction of travel (marked
with an arrow).
B A
Direction of travel
