2002-12-11
13

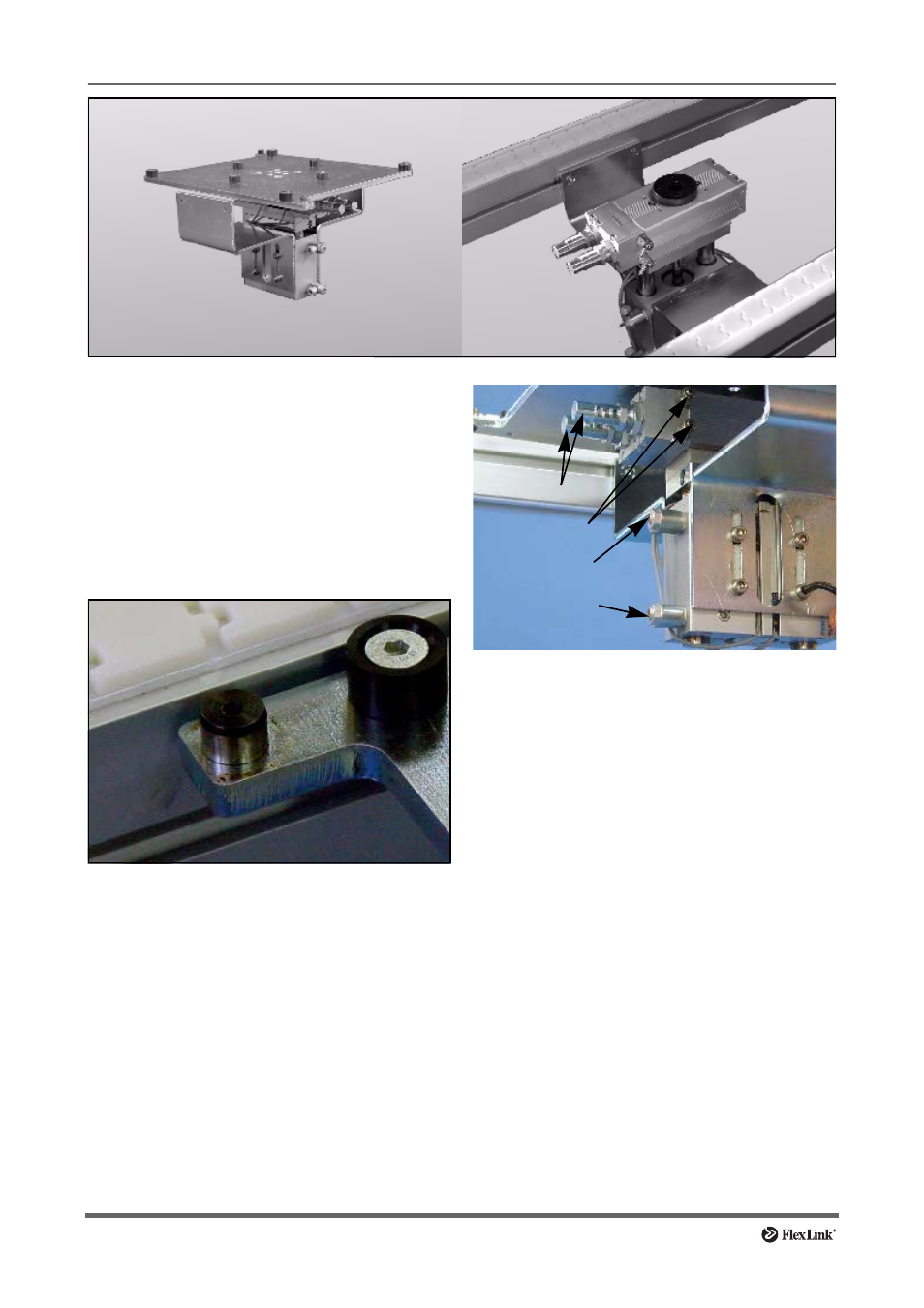

Lift and rotate station XTPR
Recommended inspection interval
Inspection is recommended every 1500 operating
hours or every 3rd month depending on which case
that occurs first.
Check wear of guide pins
1 Examine the guide pins (A).
2 If the guide pins have to be replaced see “Mount-
ing guide pins to locating, lift-and-rotate and lift-
and-locate station” on page 59.
Check docking of pallet
1 Run the unit and check that the pins enter the
pallet bushings in a smooth way without jam and
noise.
2 If the locating units have to be adjusted due to jam,
try to adjust the end positions of the rotate actuator
(B).
Check speed of lift and lowering movement
1 Run the unit with loaded pallets.
2 If necessary, adjust the throttle valves (C) at the
cylinder units.
Check speed of rotating movement
1 Run the unit with loaded pallets.
2 If necessary, adjust the throttle valves (D) on the
cylinder units.
Other observations
Use “Trouble shooting” on page 62.
Spare parts
To find correct spare parts, see separate Spare Parts
documentation.
A
B
D
C:Lift
C:Lowering
