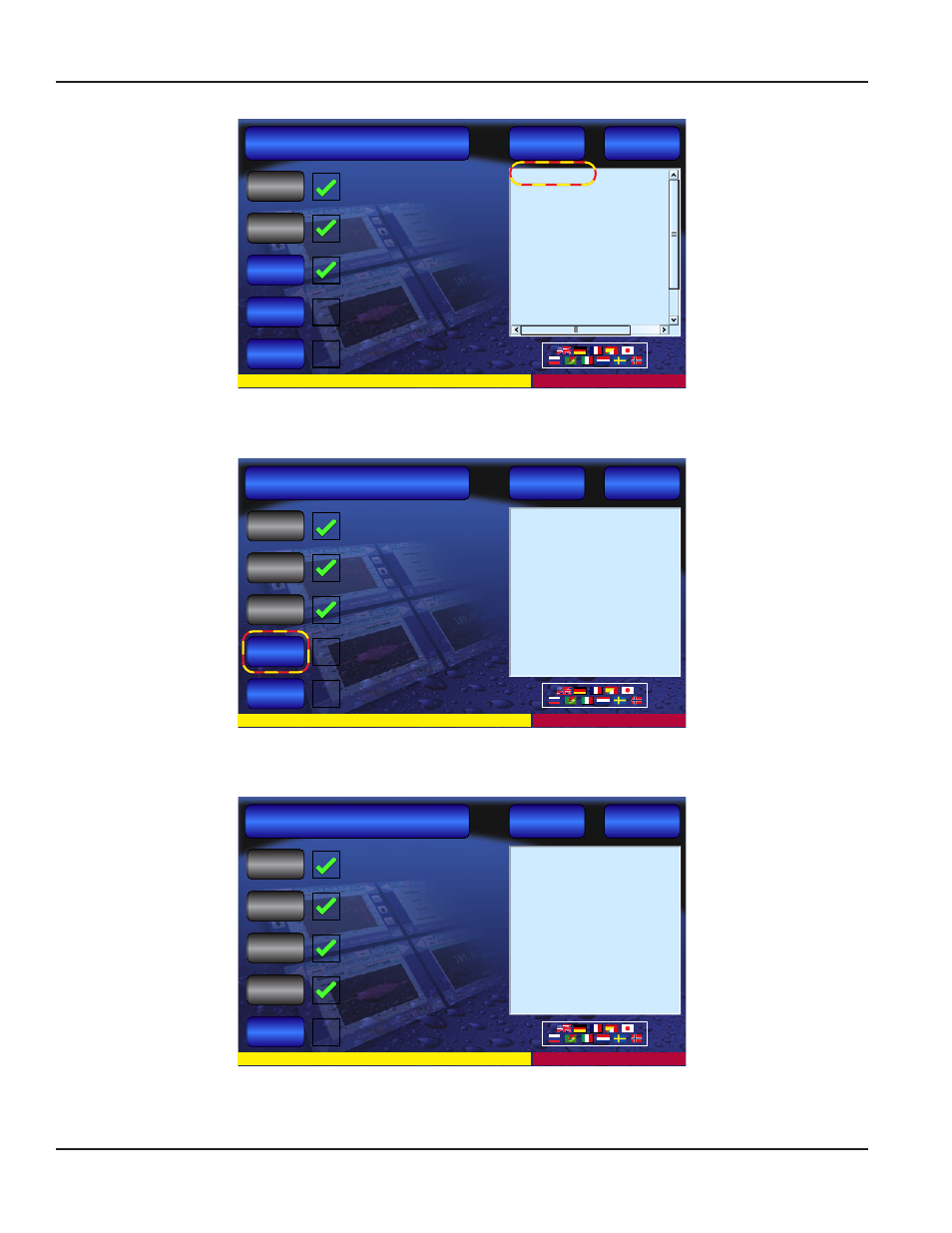

Step 1: Unlock System (Reboot)
Step 3: Copy Updated Files
Step 2: Update System (Reboot)
Step 4: Update Flowmeter
Step 5: Lock System (Reboot)
Unlock
Lock
Update
Flowmeter
Update
System
Copy
Copy Files Complete 98 Files
Check Update Status Quit Update Utility Restart System
ORDEM & PR OGRE SSO
16. At the conclusion of the process the message “OK to reboot” will appear on the screen. At this point, remove the
thumb drive and then press OK.
dynasonics.com 800-535-3569 ©2012 Racine Federated Inc., all rights reserved
Step 1: Unlock System (Reboot)
Step 3: Copy Updated Files
Step 2: Update System (Reboot)
Step 4: Update Flowmeter
Step 5: Lock System (Reboot)
Unlock
Lock
Update
Flowmeter
Update
System
Copy
15:19:23 Begin Embedded Update
15:19:23 Boot... A A A t r t r t r t r T r R BB Ready
15:19:28 Embedded File:
CRC32B:
18C97728
MD5:
867B861C
7038 D7D4 A2C5
Check Update Status Quit Update Utility Restart System
ORDEM & PR OGRE SSO
The meter will reboot again and show the startup screen again. This reboot will use a more Windows-like process and requires
more time for completion. When the reboot is complete, the meter returns to the Start Screen.
dynasonics.com 800-535-3569 ©2012 Racine Federated Inc., all rights reserved
Step 1: Unlock System (Reboot)
Step 3: Copy Updated Files
Step 2: Update System (Reboot)
Step 4: Update Flowmeter
Step 5: Lock System (Reboot)
Unlock
Lock
Update
Flowmeter
Update
System
Copy
15:19:23 Begin Embedded Update
15:19:23 Boot... A A A t r t r t r t r T r R BB Ready
15:19:28 Embedded File:
CRC32B:
18C97728
MD5:
867B861C
7038 D7D4 A2C5
F74EE8D207CE
15:19:30 Erase ............ Success
15:19:41 Program ............ Success
15:20:11 Verify ............ Success
!Success Embedded Update!
Exiting Reprogramming Mode
Check Update Status Quit Update Utility Restart System
ORDEM & PR OGRE SSO
DXN Portable Ultrasonic Measurement System
Page 92 February 2013
