The user screens consists of controls, status icons, and data display areas similar to most found on personal computers.
Detailed description of interface functions are found throughout this manual.
DXN Data and Controls Layout
Site Name 0.00 GPM
1/16/2013
2:18 PM
Meter Adv Cal System Display Site Log I/O
Alerts Table Graph Setup Graph Meters
.000
GPM
Flow
Totalizer NET TT Quality
.0
Gallons
0
%
Status Bar Status Bar
Navigation
Button
Navigate
Menu Left
Group & Page
Tabs
Left Context
Sensitive
Area
Right Context
Sensitive
Area
Data & Control
Pages
Navigate
Menu Right

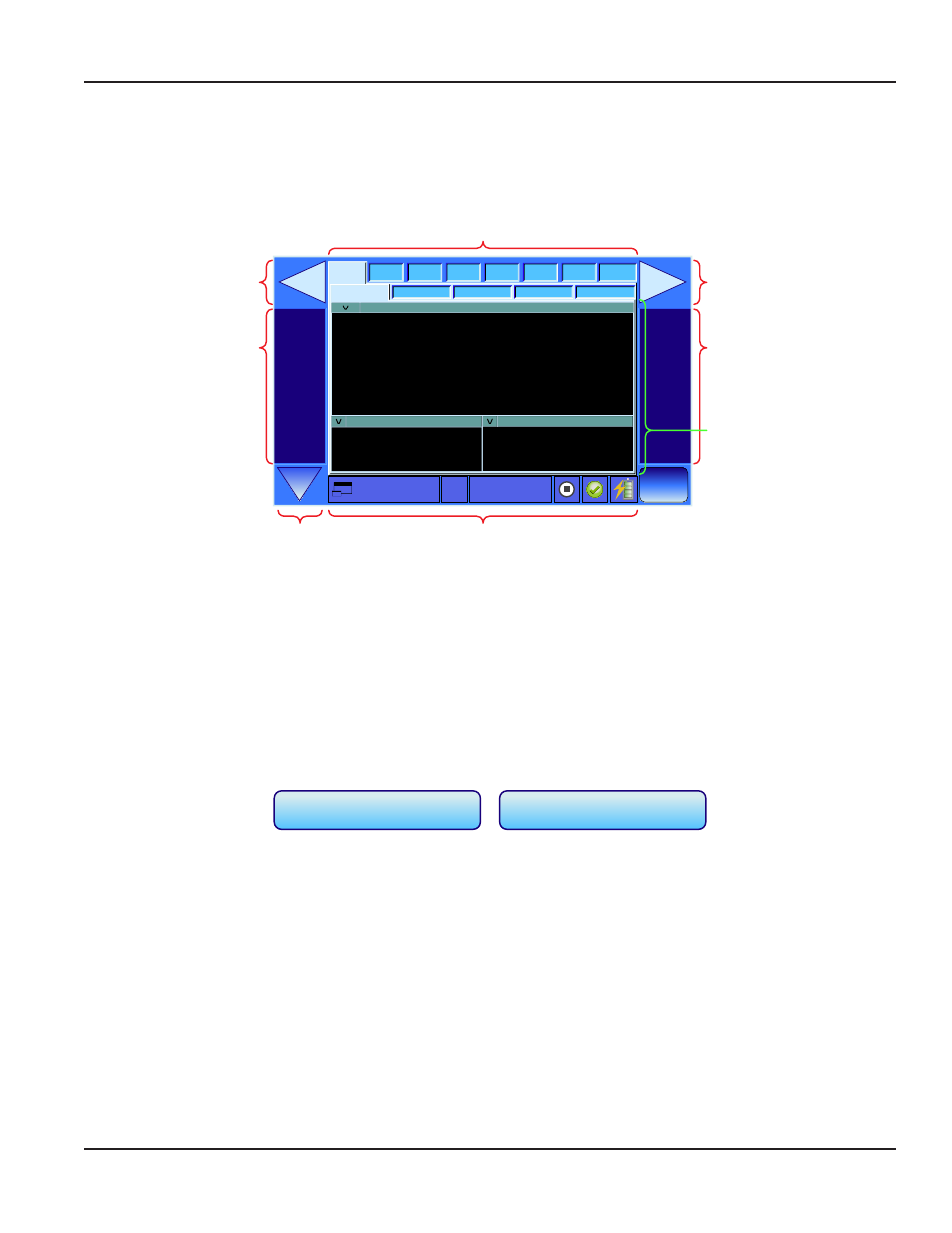

Figure 11: Main User Screen Layout
Controls
The DXN uses many of the same software controls as common windows based graphical user interfaces. The following
describes the controls and how they are used.
Text Boxes
Text boxes provide space for the user to enter various pieces of data such as the Create New Site button. When a text box
button is pressed a Qwerty keyboard pops up allowing text and/or numbers to be entered.
Create New Site From
CURRENT Settings
Create New Site From
DEFAULT Settings
Figure 12: Typical Text Boxes
