Dynasonics DXN Portable Ultrasonic Measurement System - Manual (Page 77)

Disk
Site Name 0.00 GPM
1/16/2013
2:18 PM
System Site I/O Cal Adv Display Meter Log
Disk Comm Update Storage ENet PC Power Time Misc
System Disk
3,967 MB Free
2,432 MB Used
Site Disk
1,355 MB Free
10 MB Used

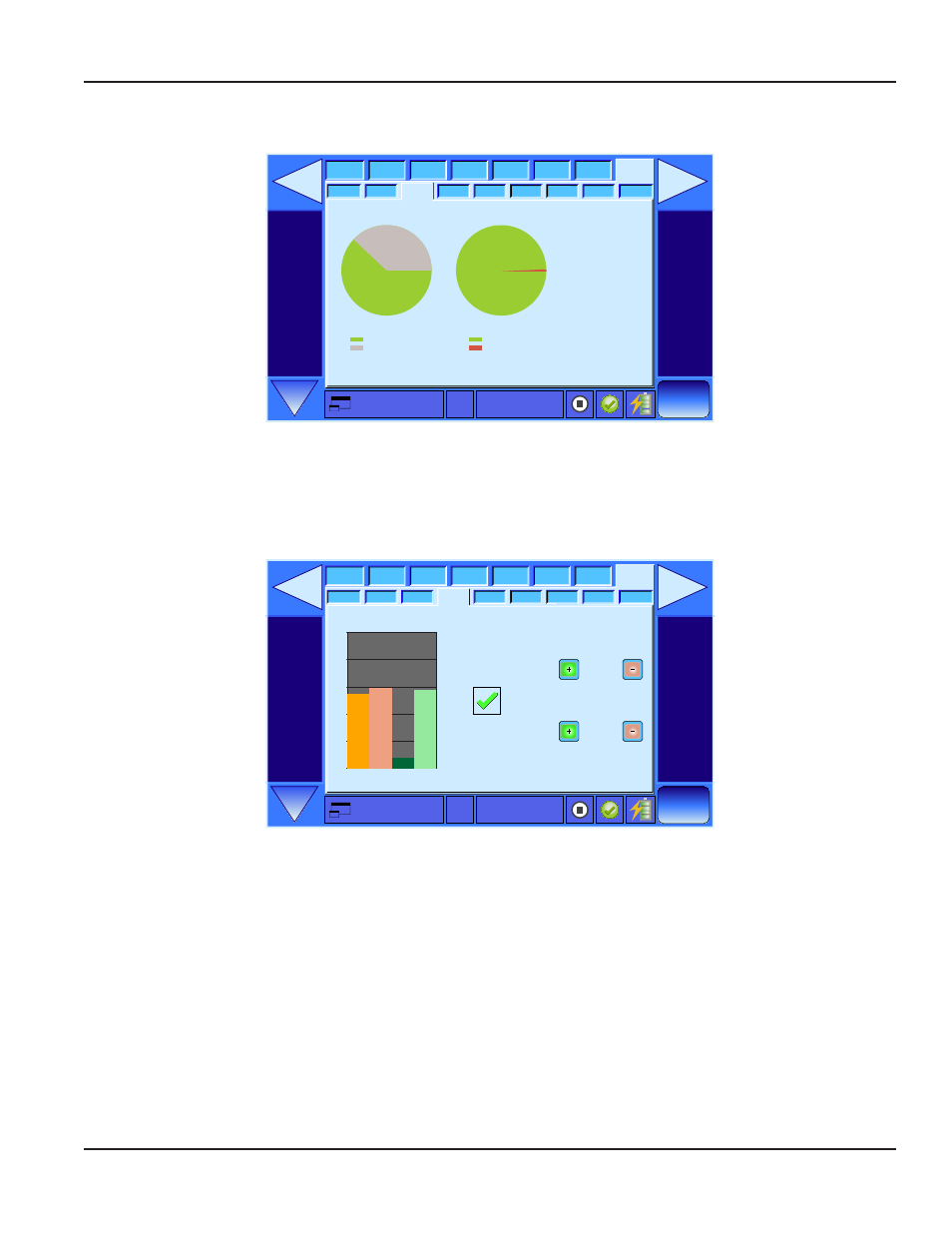

Figure 103: System Disk
The System>Disk provides information about the meters hard disk storage capacity. The DXN uses an 8 gigabyte hard drive of
which 1 gigabyte is available to the user.
PC
Site Name 0.00 GPM
1/16/2013
2:18 PM
System Site I/O Cal Adv Display Meter Log
PC Comm Update Storage ENet Disk Power Time Misc
-50
-10
30
70
110
150
0
20
40
60
80
100
Board CPU %CPU %RAM
52.0C
56.0C
7%
59%
PC CPU Status Backlight Control
5
10
Brightness
Off Minutes
Timed Power Off
Figure 104: System PC
The System>PC contains the backlight brightness control and the switch for the automatic screen saver. Judicious use of these
controls will help extend the battery life between charging’s. The WVGA screen used in the DXN consumes about 1/3 of the
battery capacity when the meter is running on battery. By using the screen saver and lowering the amount of backlight when
conditions permit can significantly extend the battery life for that particular session.
The backlight Brightness control ranges from a low of 1 (least bright) to 5 (most bright).
The screens saver has a range of 0 to 50 minutes.
If the meter is running with the battery charger connected there is no need to either decrease the backlight or use the screen
saver function.
The second portion of the operations is populated by a graph showing the temperature of the system processor board and
the CPU (Central Processing Unit). Also shown are the percentages of RAM (Random Access Memory) used and how busy the
CPU is.
