FLOW
Top View
of Pipe
Wires Pointing in Direction of Flow
Wires Pointing in Direction of Flow
FLOW
FLOW

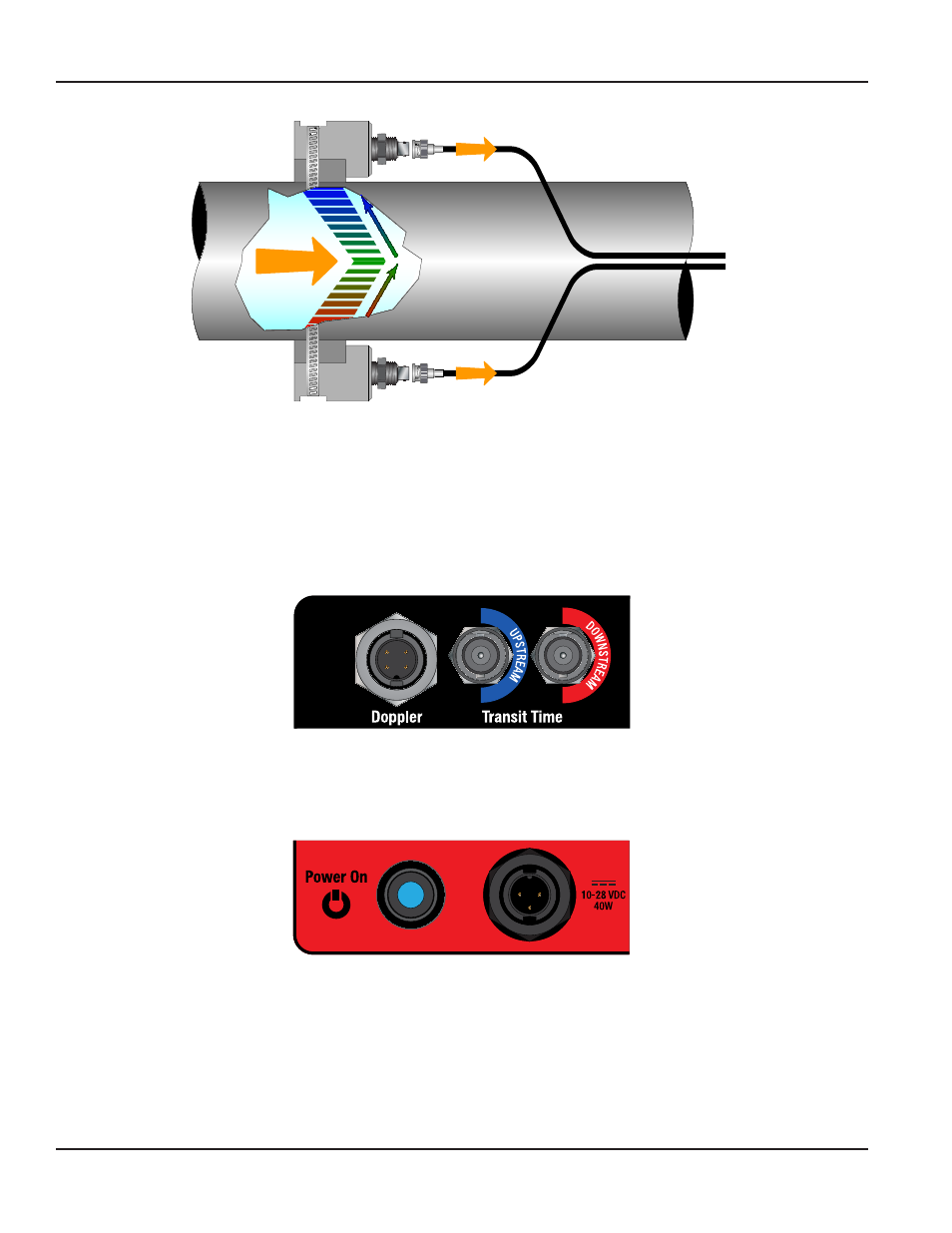

Figure 3: Doppler Transducer Mounting
TRANSDUCER CONNECTIONS
1. Route the transducer cables from the transducer mounting location back to the DXN enclosure, avoiding locations
near high voltage supply wires.
2. Connect the transit time transducer wires to the appropriate BNC or connect the Doppler transducers to the 4-pin
Doppler transducer plug. Both connections are on the end of the DXN enclosure.
Figure 4: Transducer Connections
NOTE:
N
Transit time transducer wires go in opposite directions when DTTN or DTTL transducers are used (see
Figure 2
). DT94
Doppler transducer wires both go in the direction of flow (see
Figure 3
).
Figure 5: Power Switch and Charging Connection
