The X axis is always time based. Use the or buttons to either expand or contract the time line shown on the
horizontal (X axis). The minimum graph time period is 10 seconds and the maximum is 1 year.
The Axes
Y Lt
and Axes
Y Rt
functions control the scale of the left hand and right hand sides of the graph respectively.
The and buttons work in the same fashion as on the X axis except for on the Y Lt and Y Rt axis they are used to
expand or contract the range of the vertical scaling.
The and arrow buttons are used to shift the zero point of the graph up or down.
Pressing the
Home
button resets the graph to the parameters set using the Graph>Setup screen.
Home
Home
Axes
X
Axes
Y Lt
Axes
Y Rt
Axes
-
Axes
-
Axes
X
Axes
Y Lt
Axes
Y Rt

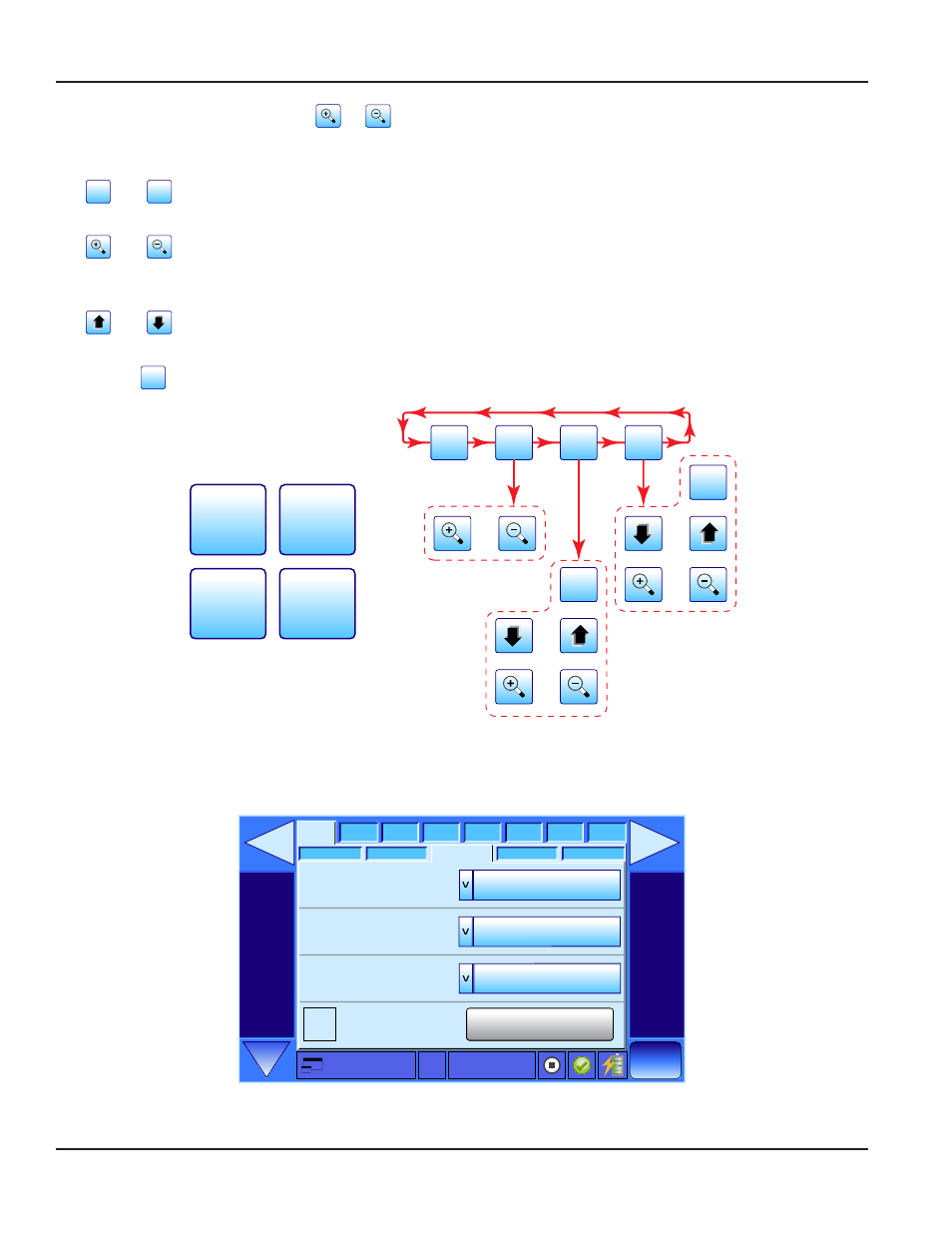

Figure 46: Graph Axis Configuration
Graph Setup Page
Site Name 0.00 GPM
3/28/2012
13:24
Display Meter Adv Cal System Site Log I/O
Alerts Graph Meters Table Graph Setup
Right Axis Data
Left Axis Data Flow
Totalizer NET
Time Range 10 Seconds
Delete Graph Data Unlock Graph Data Clear
Figure 47: Display>Graph Setup
