Site Name 0.00 GPM
03/28/2012
13:24
Meter Adv Cal System Display Site Log I/O
Create Liner Transit Doppler Fluid Lookup Pipe
Pipe Sound Speed (FPS) 8650
Roughness (microFt) 150
Pipe Wall (Inch) 0.154
Pipe OD (Inch) 2.375

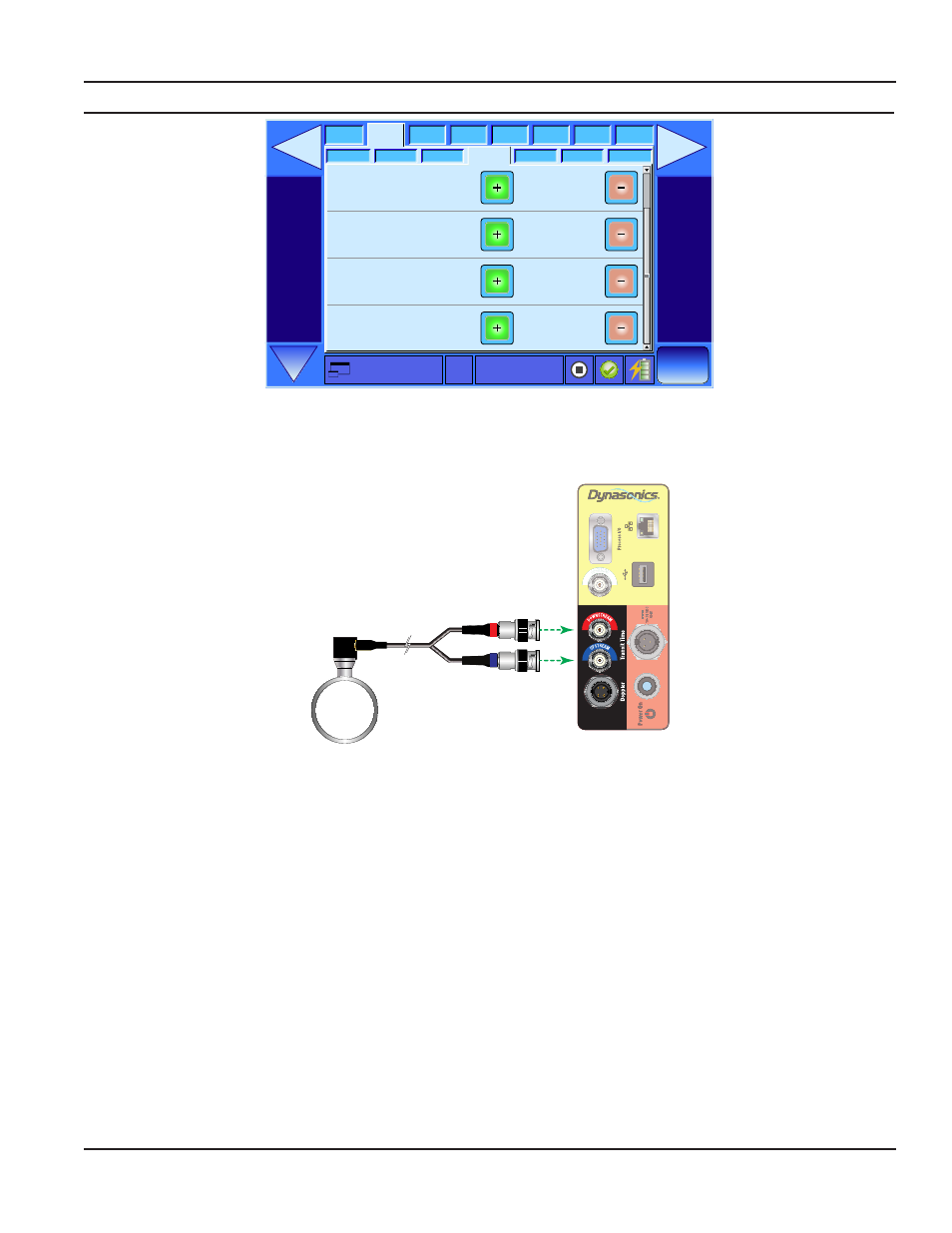

Figure 61: Site>Pipe
Figure 62: Pipe Thickness Gauge Connections
5. From the Site>Pipe screen Press Gauge button to enter pipe gauge wizard (see Figure 59 ).
6. The Ultrasonic Thickness Gauge wizard appears and should already be set to Automatic Analysis Mode.
